AR77.33-P-2010MCU Remove/install roof peak sliding plate

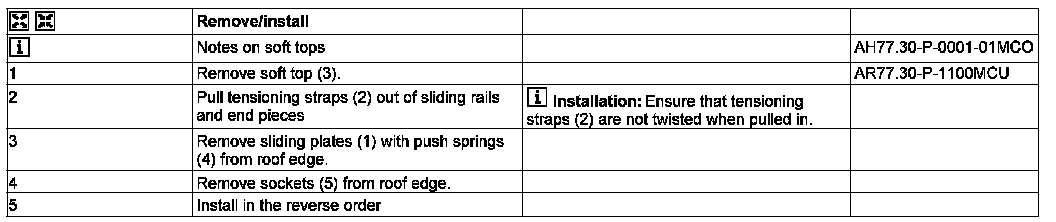

AR77.33-P-2010MCU Remove/Install Roof Peak Sliding Plate

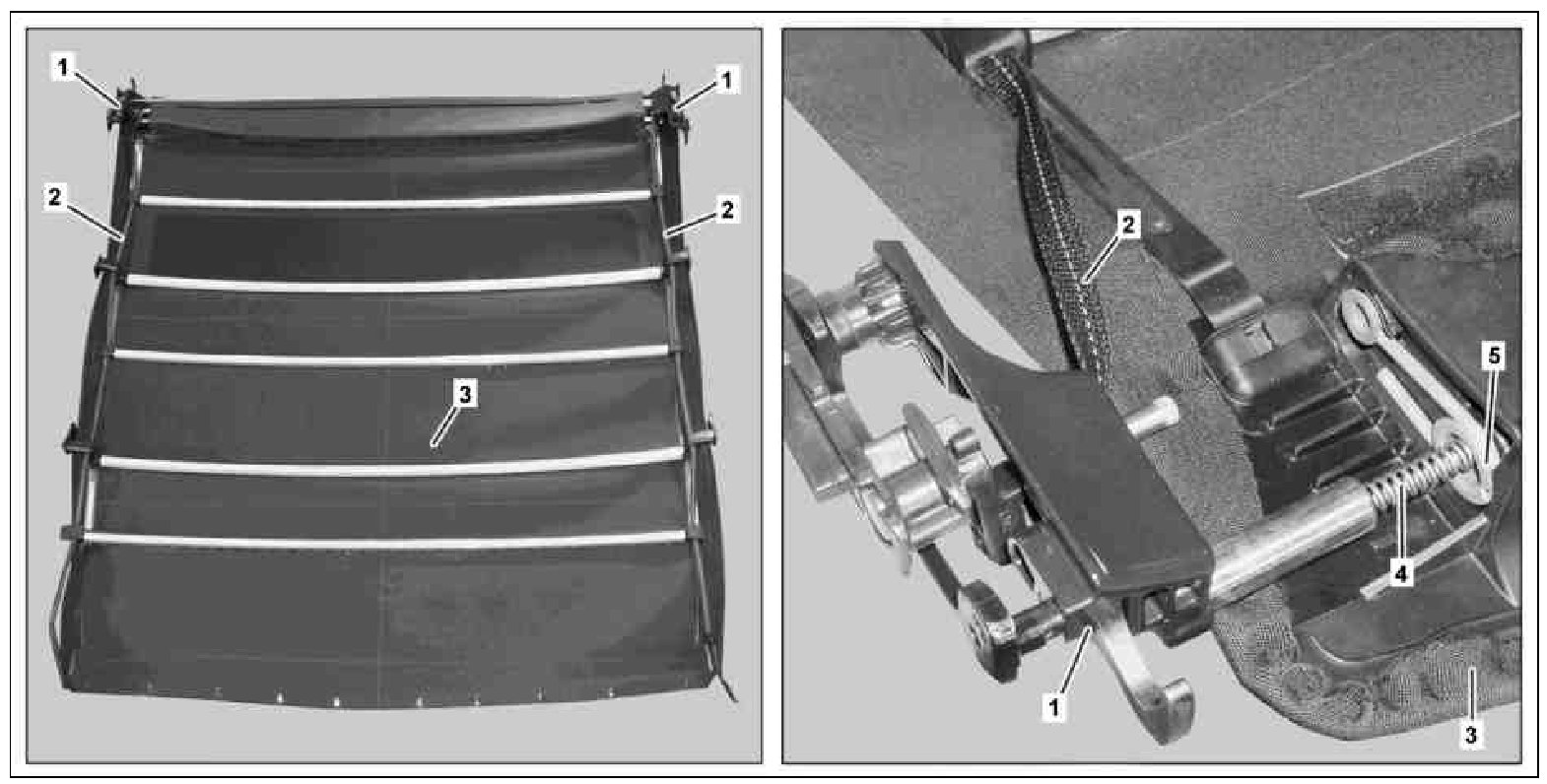

1 Sliding plate
2 Tensioning strap
3 Folding top
4 Compression spring
5 Socket
