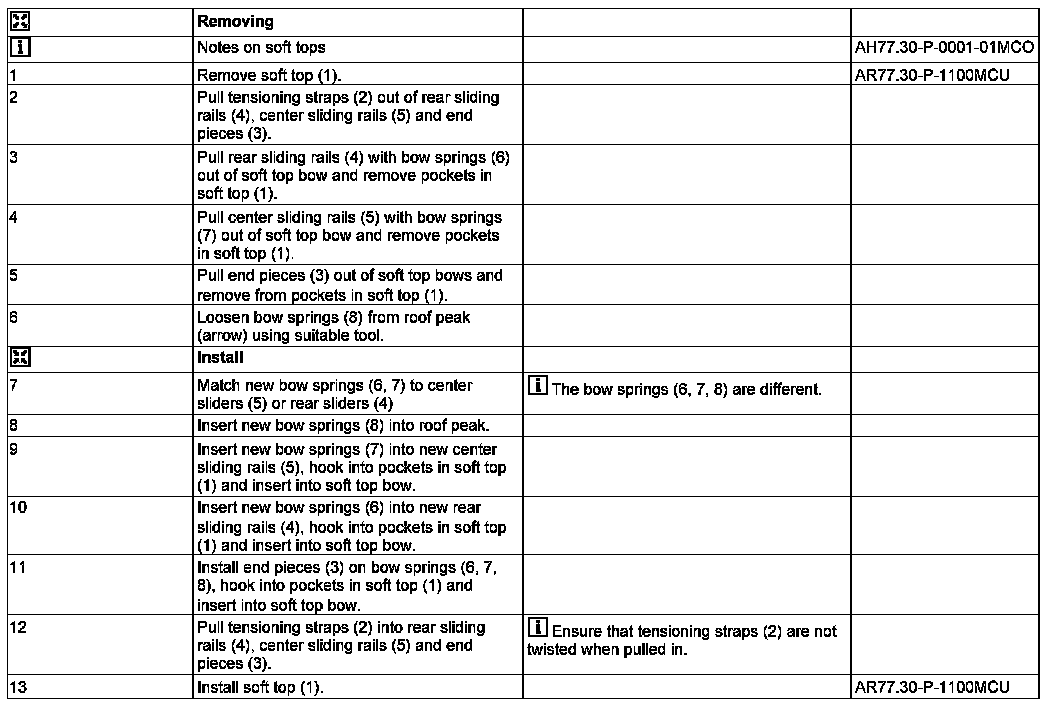

AR77.33-P-2000MCU Remove/install soft top bow slider

AR77.33-P-2000MCU Remove/Install Soft Top Bow Slider

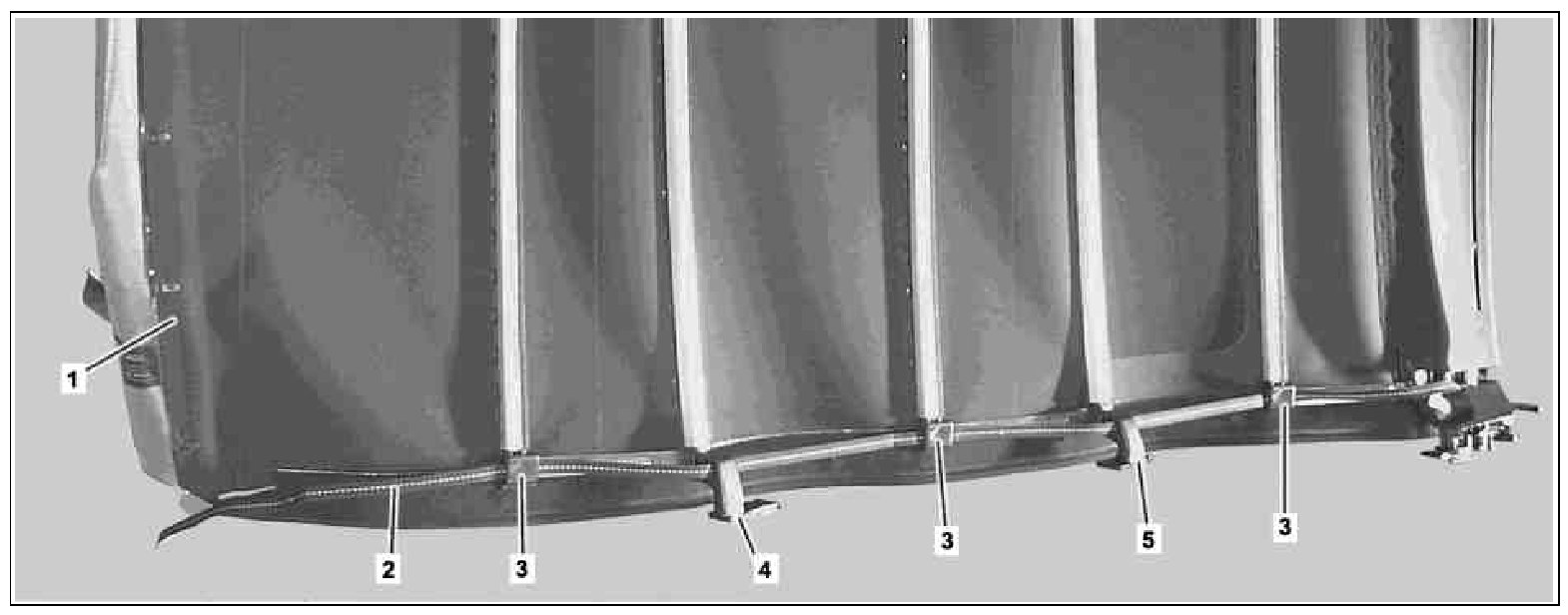

Shown on left side of vehicle







1 Folding top
2 Tensioning strap
3 End piece
4 Rear sliding rail
5 Center sliding rail

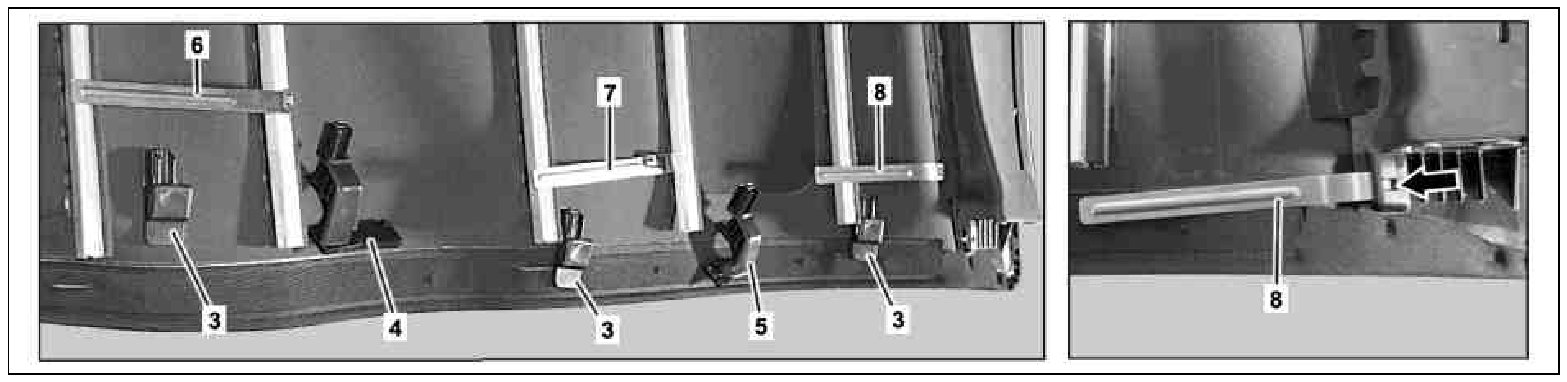

Shown on left side of vehicle







3 End piece
4 Rear sliding rail
5 Center sliding rail
6 Bow spring
7 Bow spring
8 Bow spring
