AR77.33-P-1008MCO Remove/install side support bearing
AR77.33-P-1008MCO Remove/install side support bearing

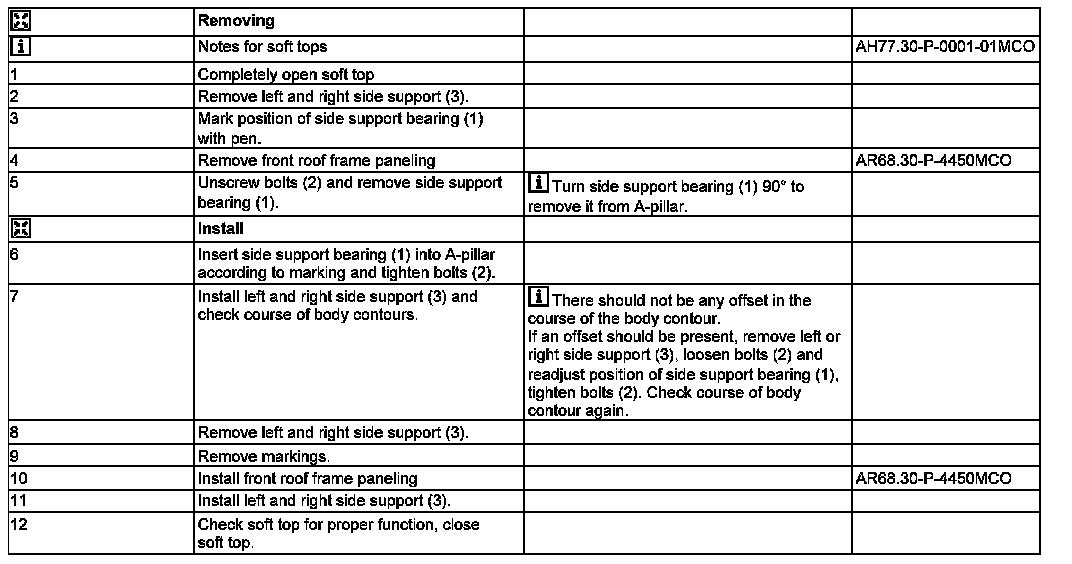

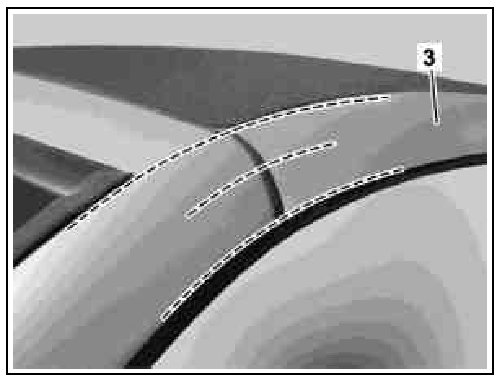

AR77.33-P-1008MCO Remove/Install Side Support Bearing

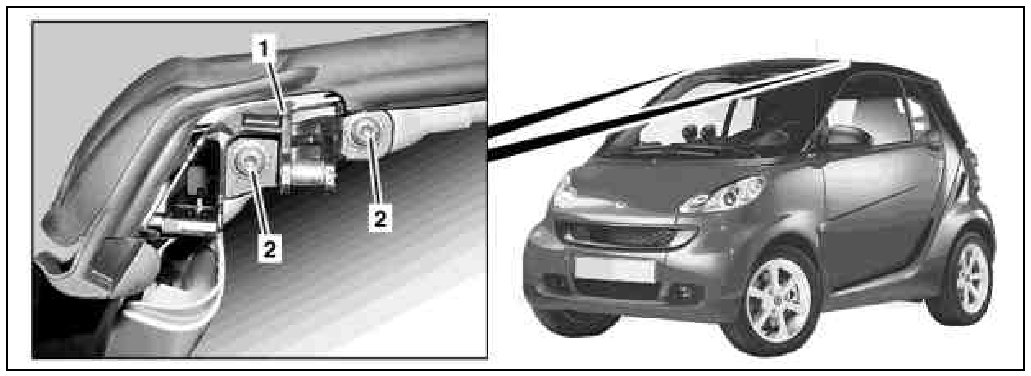

1
Side strut bearing
2
Bolt
3
Side support
