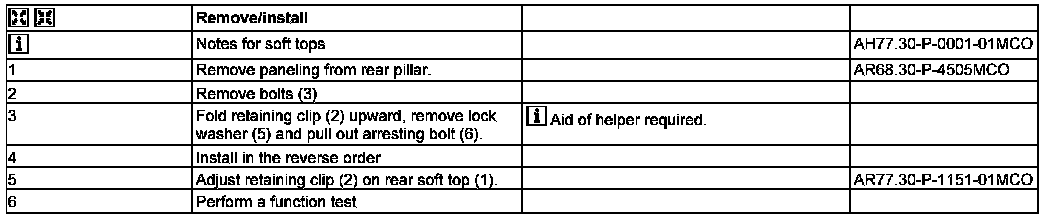

AR77.30-P-1152MCO Remove/install arresting bolt on rear soft top retaining clip

AR77.30-P-1152MCO Remove/Install Arresting Bolt On Rear Soft Top Retaining Clip

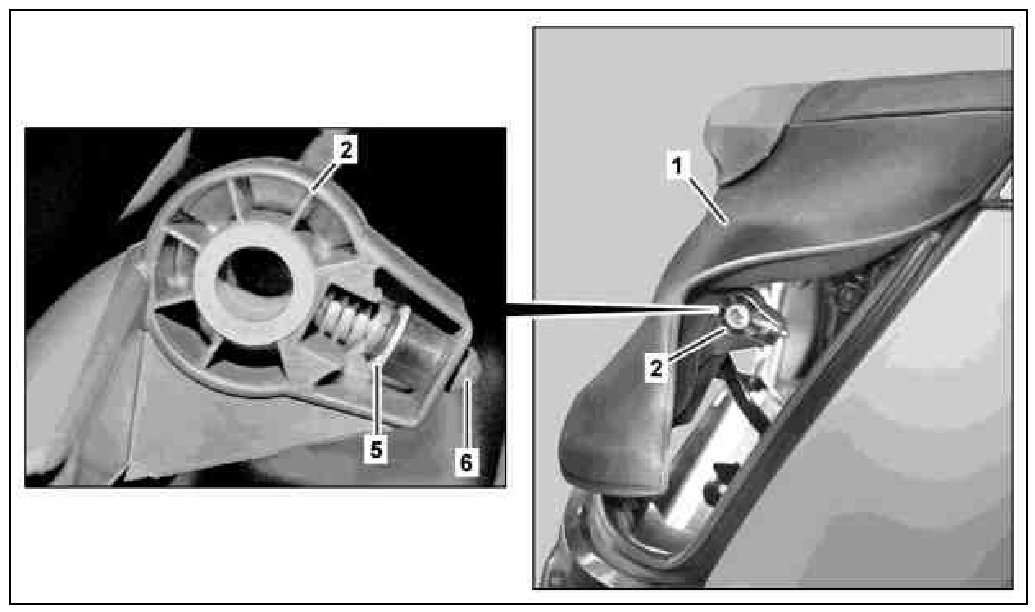

1 Rear soft top
2 Retaining clamp
3 Bolt
4 Nut







1 Rear soft top
2 Retaining clamp
5 Lock washer
6 Locking bolt
