AR77.30-P-1151-01MCO Adjust rear soft top retaining clip

AR77.30-P-1151-01MCO Adjust Rear Soft Top Retaining Clip







1 Open rear soft top (1).

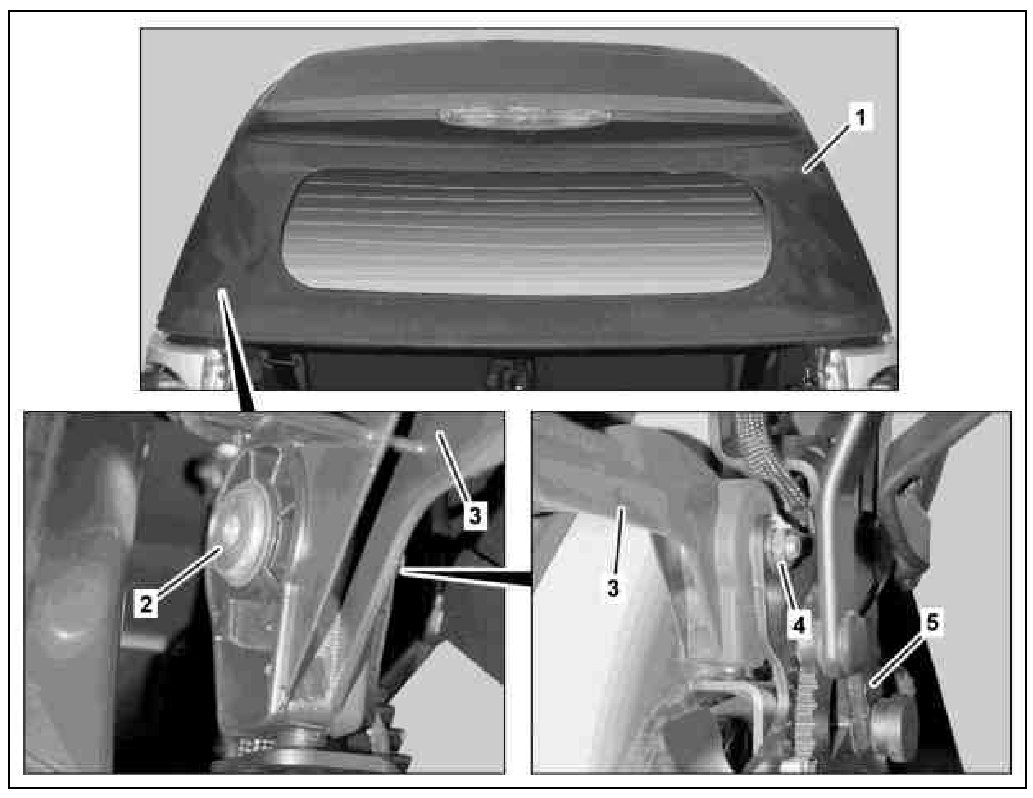

2 Loosen bolts (2), nuts (4) and retaining clip (3) on main bearing (5).
3 Close rear soft top (1).







4 Pull rear soft top (1) on retaining clip toward rear (arrows).

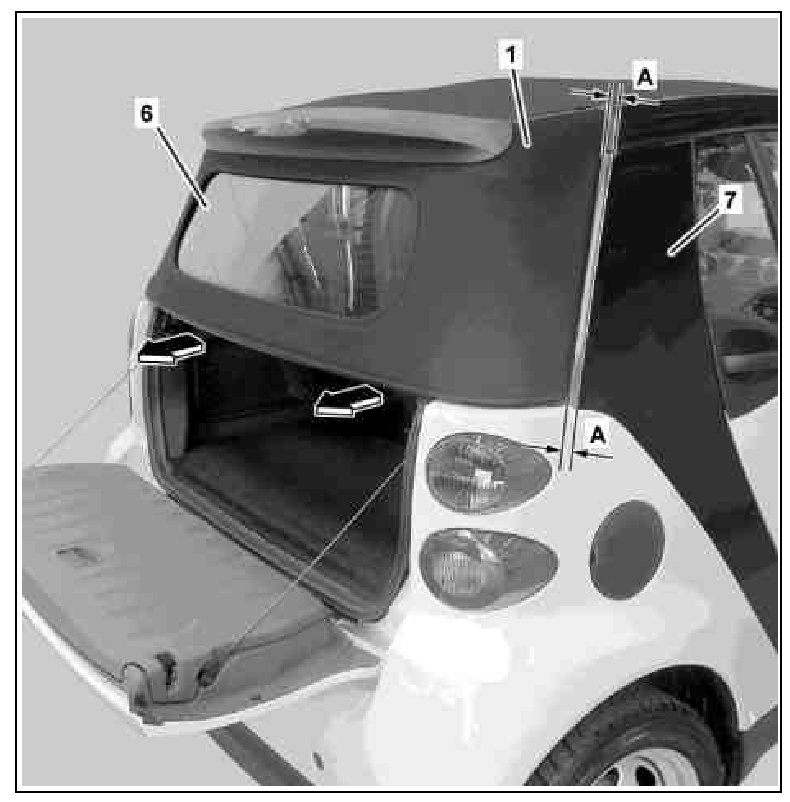

5 Check gap between rear soft top (1) and B-pillar (7).
The distance (A) should be the same at top and bottom, the covering of the rear soft top (1) should make contact with the seal on the rear window (6).







6 When rear soft top (1) is closed, tighten bolt (2) and nuts (4) on main bearing (5).
7 Open and close rear soft top (1).
The retaining clip (3) should close easily, the covering of the rear soft top (1) should be seated tautly and without creases.
