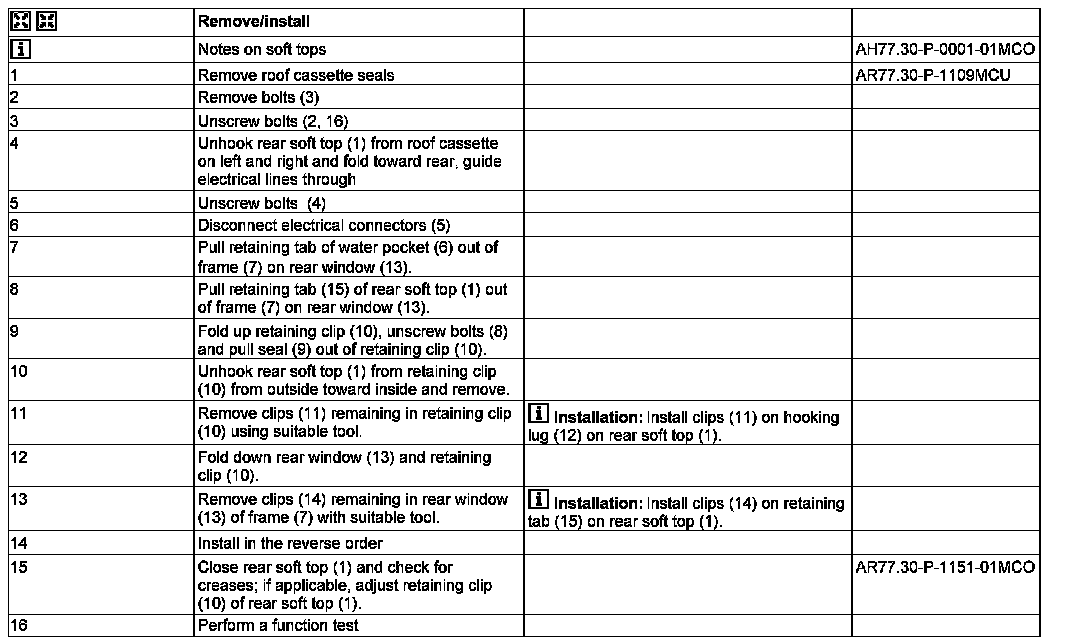

AR77.30-P-1150MCU Remove/Install Rear Soft Top

AR77.30-P-1150MCU Remove/Install Rear Soft Top

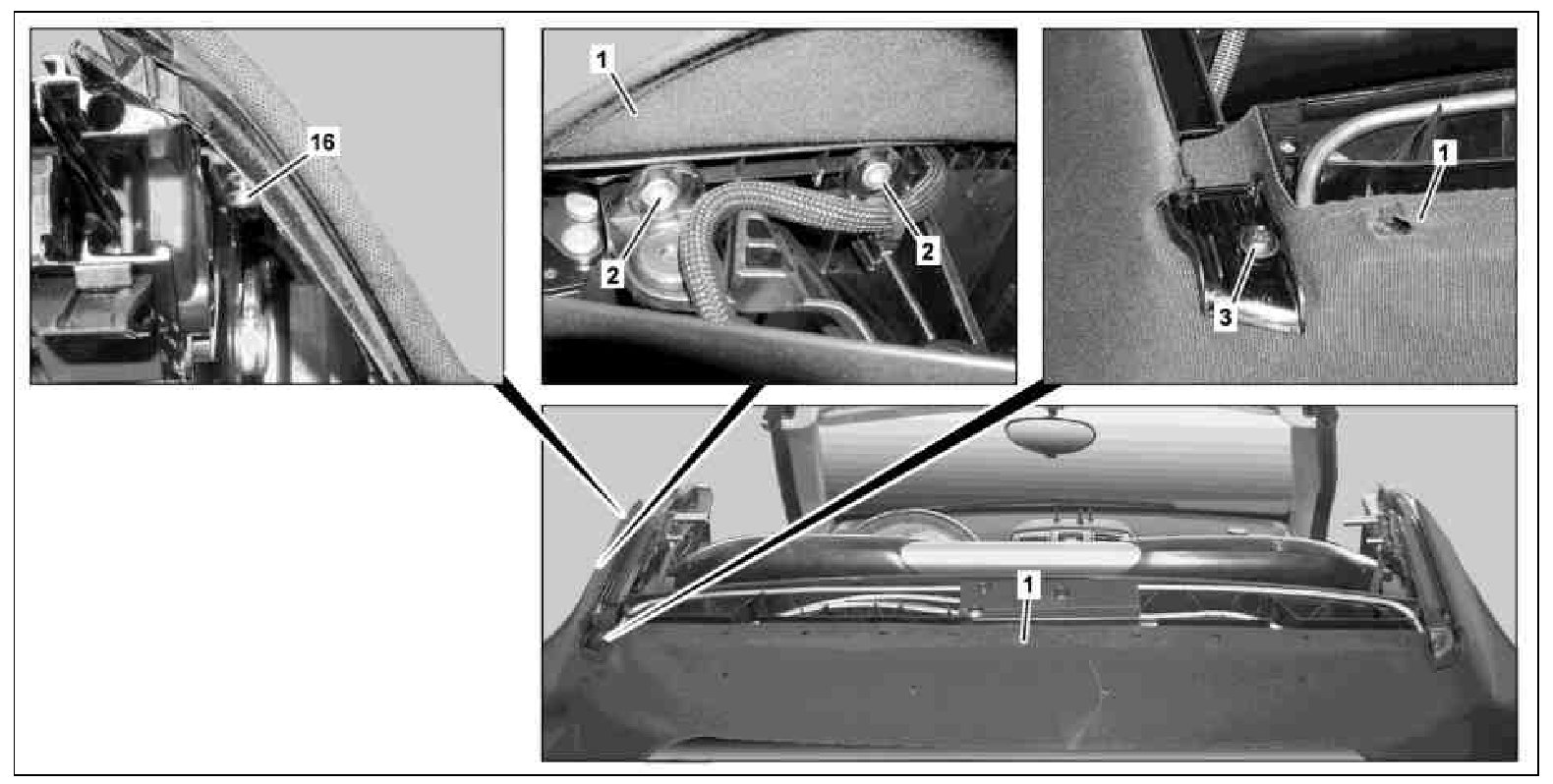

1 Rear soft top
2 Screw
3 Screw
16 Screw

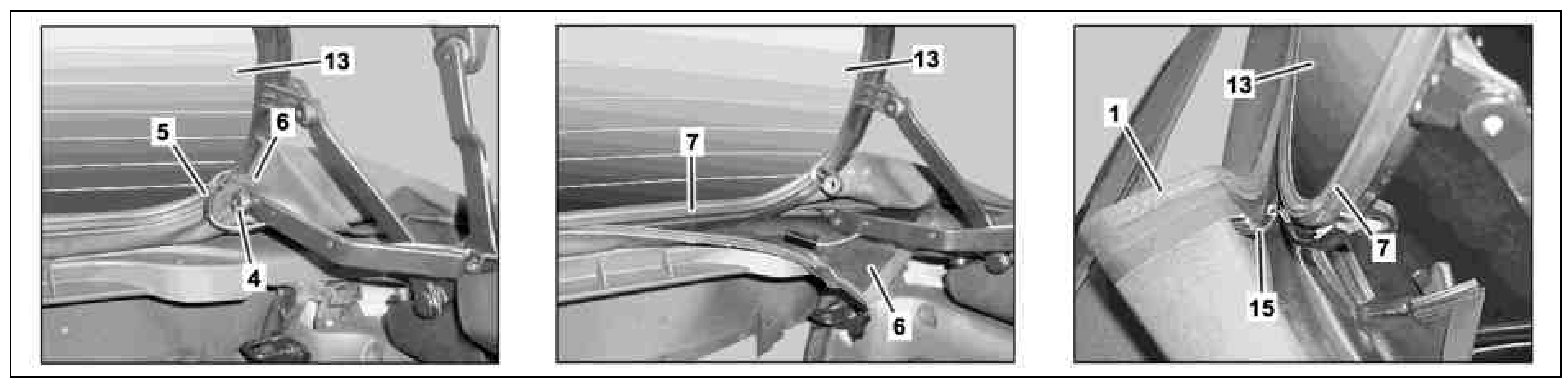

1 Rear soft top
4 Screw
5 Electrical connector
6 Water pocket
7 Frame
13 Rear window
15 Retaining tab

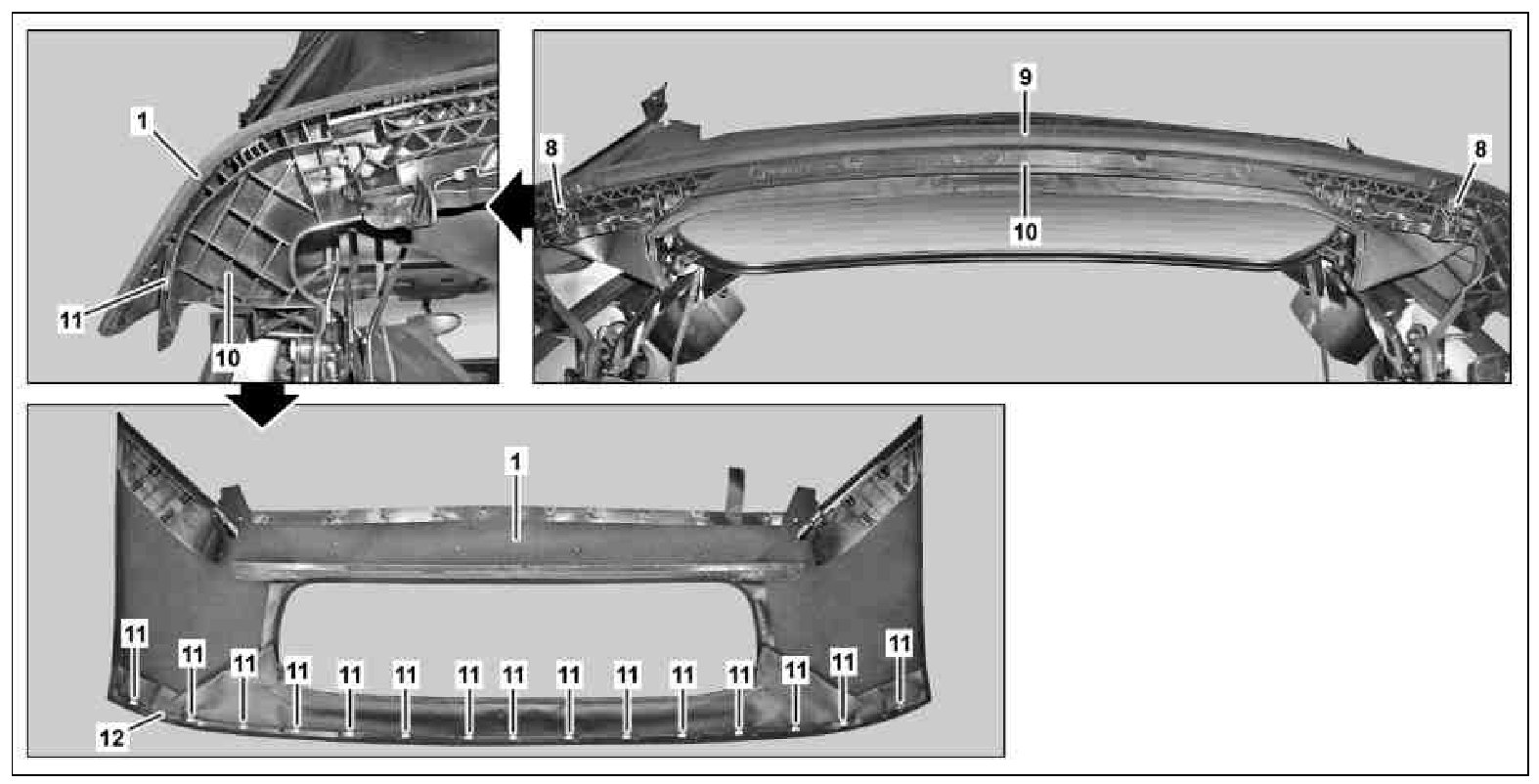

1 Rear soft top
8 Screw
9 Gasket
10 Retaining clamp
11 Clamp
12 Hooking lug

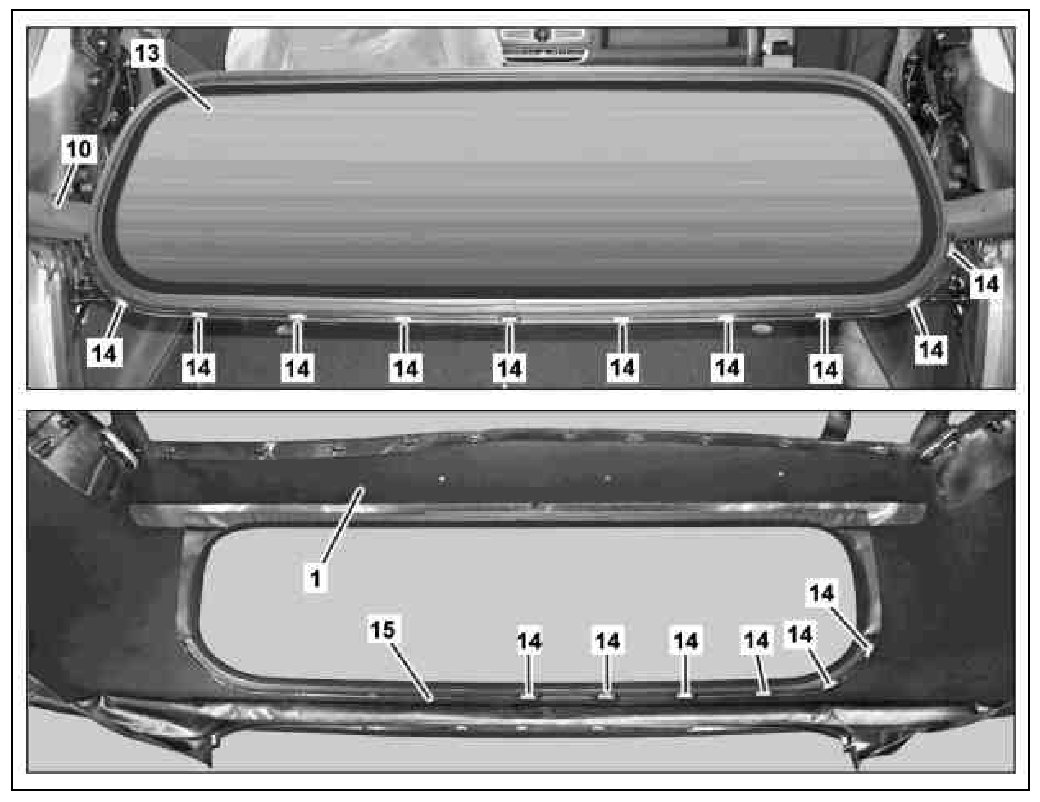

1 Rear soft top
10 Retaining clamp
13 Rear window
14 Clamp
15 Retaining tab
