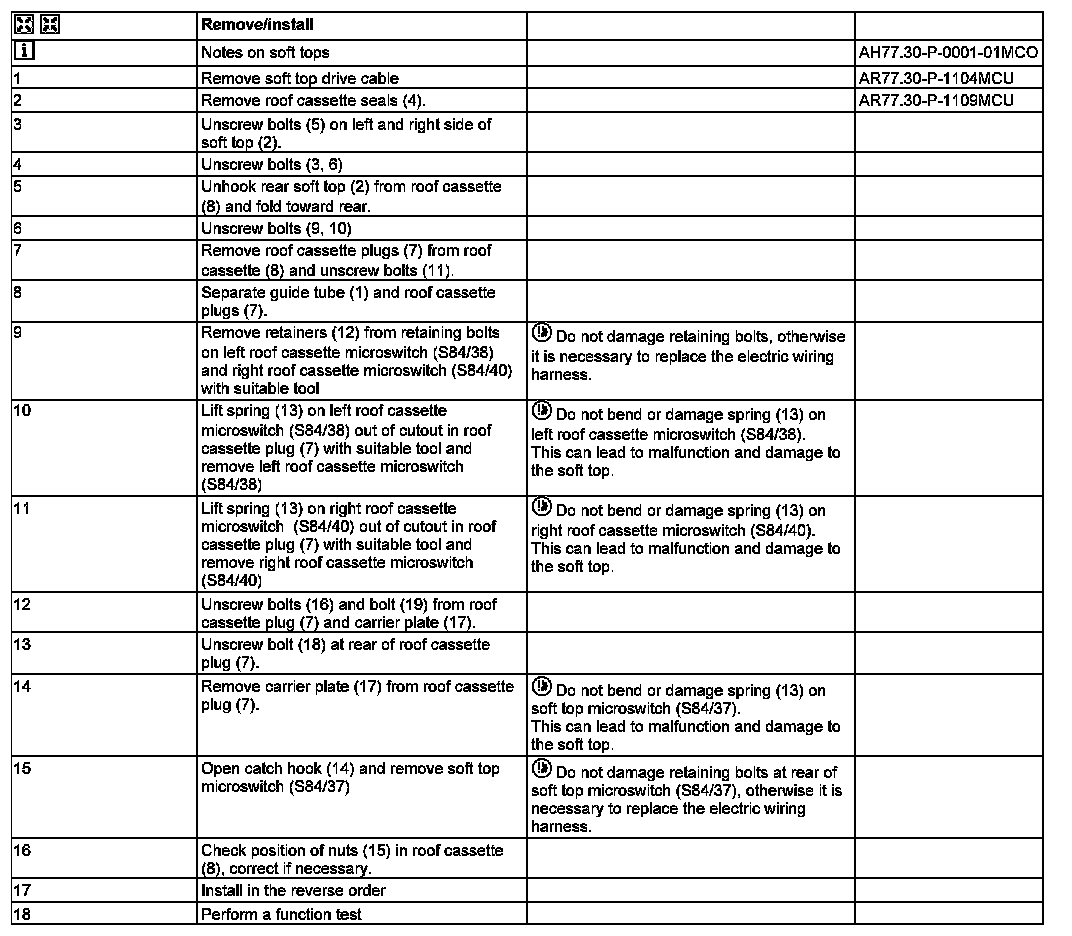

AR77.30-P-1110MCU Remove/Install Soft Top Roof Cassette Plug

AR77.30-P-1110MCU Remove/Install Soft Top Roof Cassette Plug

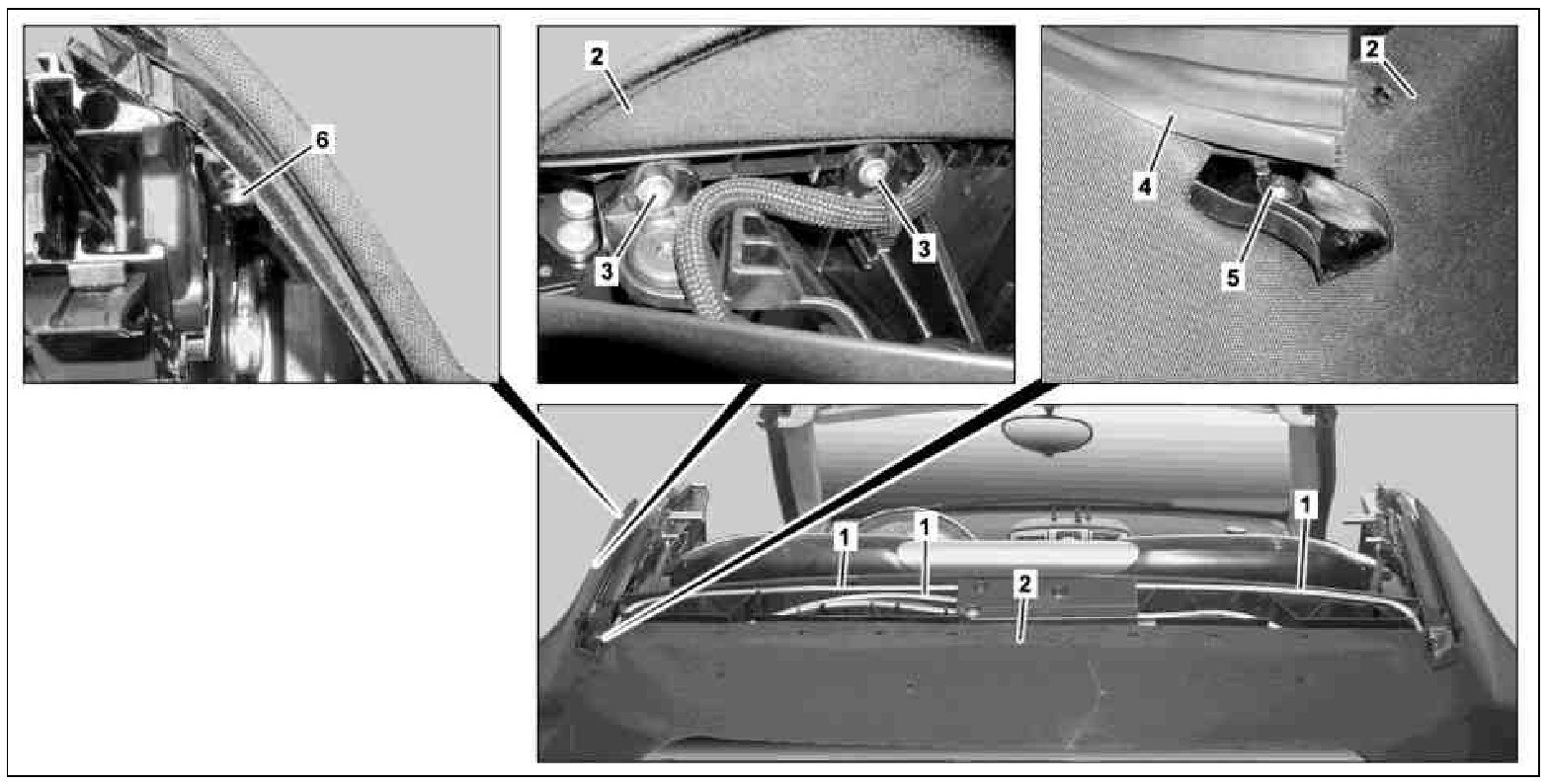

Shown on left side of vehicle







1 Guide tube
2 Rear soft top
3 Screw
4 Roof cassette seal
5 Screw
6 Screw

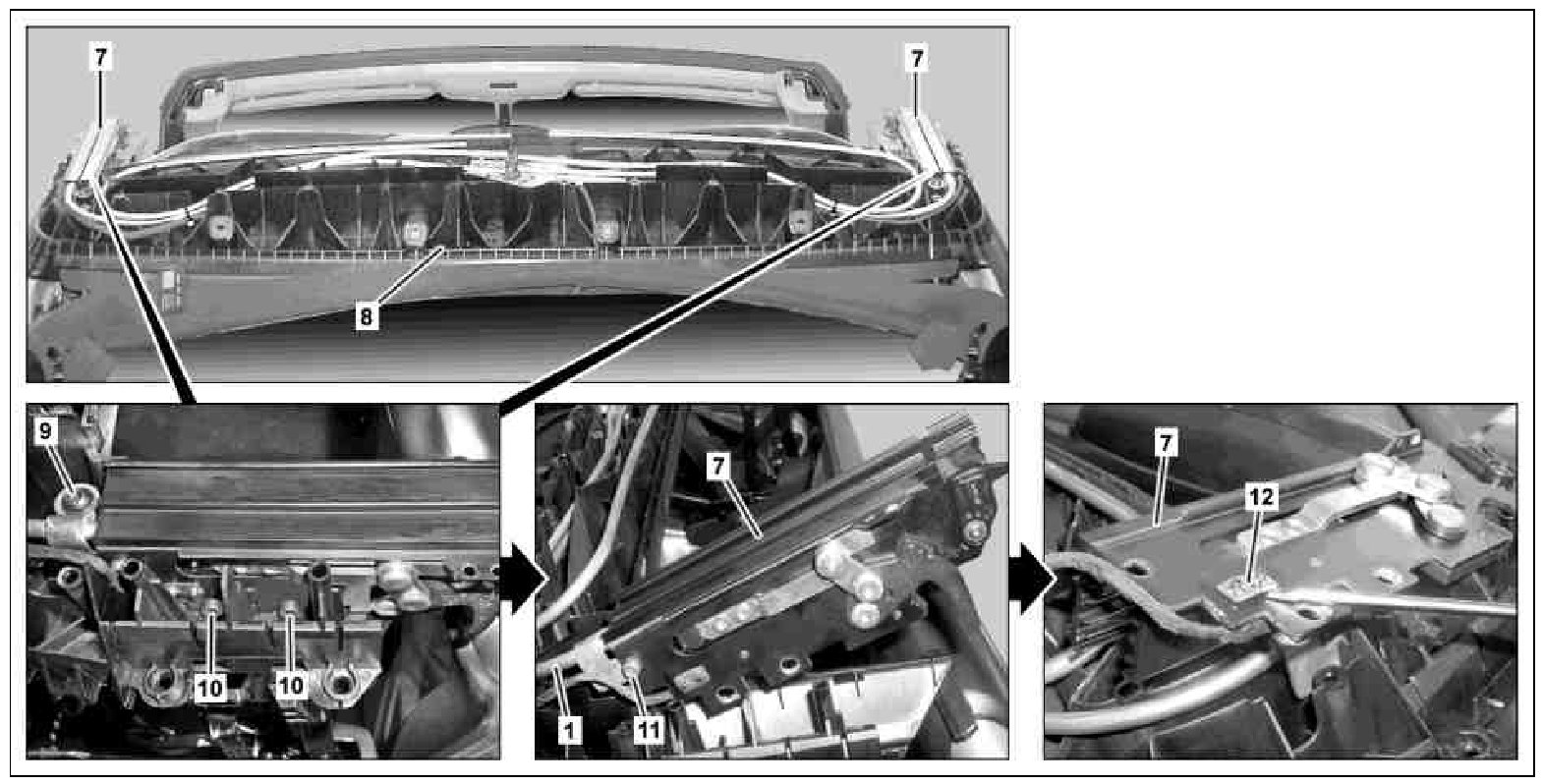

Shown on right side of vehicle







1 Guide tube
7 Roof cassette plug
8 Roof cassette
9 Screw
10 Screw
11 Screw
12 Fuse

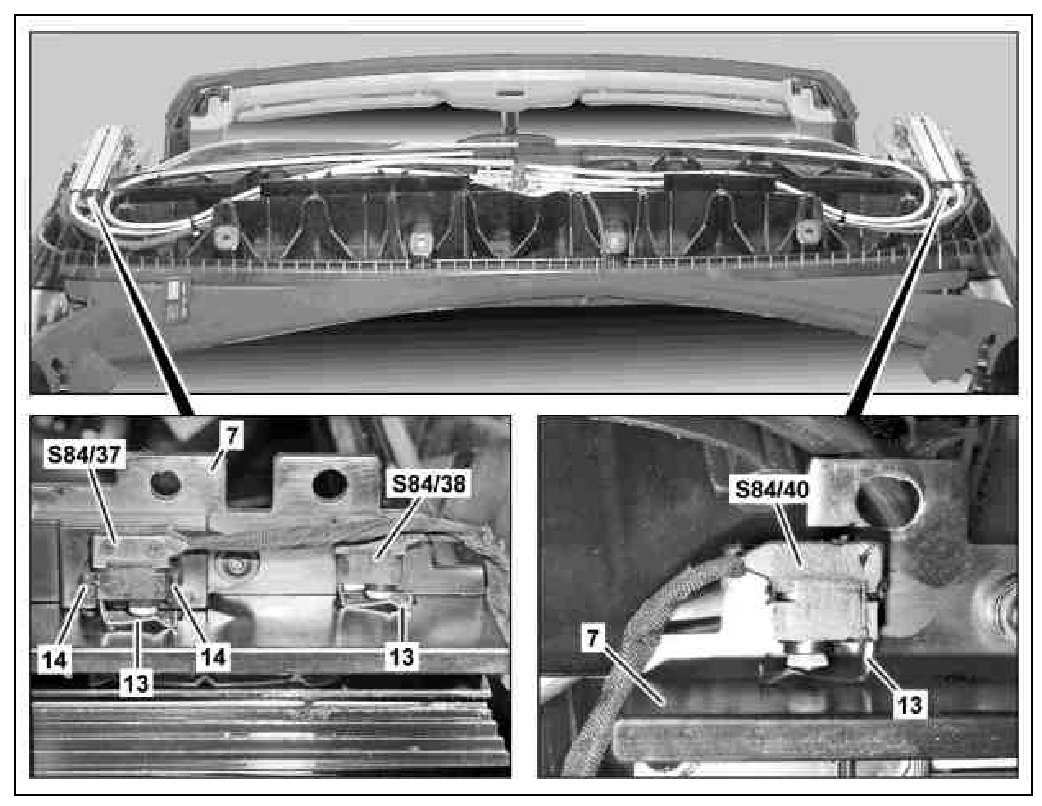

7 Roof cassette plug
13 Spring
14 Catch hook
S84/37 Soft top microswitch
S84/38 Left roof cassette microswitch
S84/40 Right roof cassette microswitch

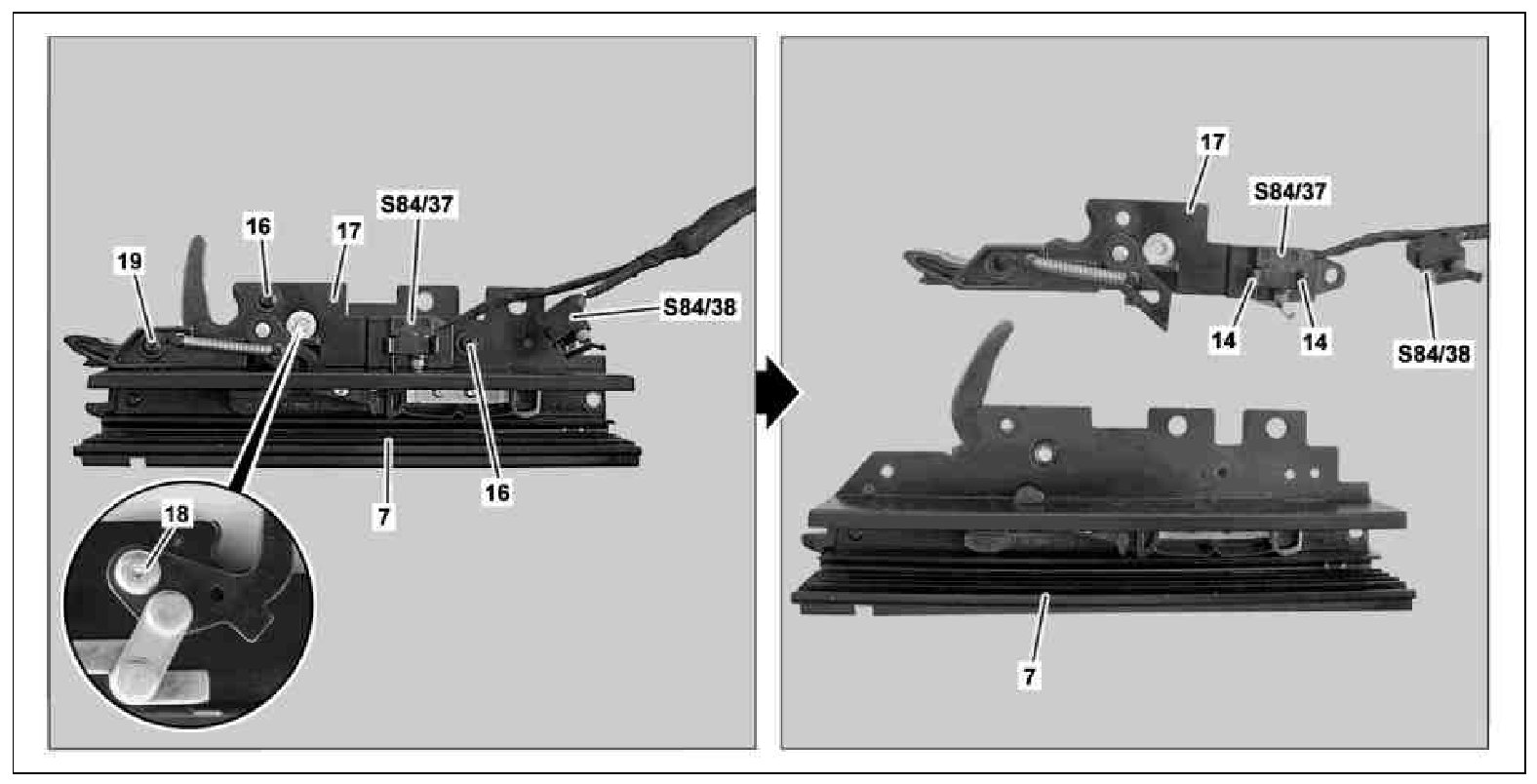

7 Roof cassette plug
14 Catch hook
16 Screw
17 Carrier plate
18 Screw
19 Screw
S84/37 Soft top microswitch
S84/38 Left roof cassette microswitch

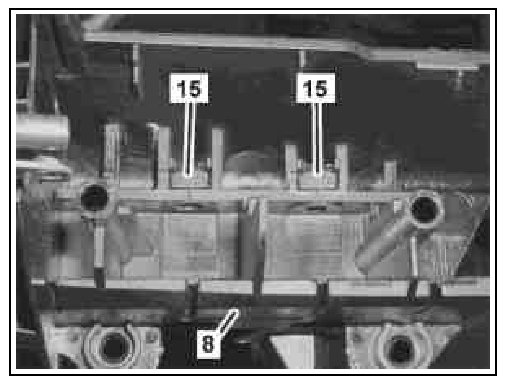

8 Roof cassette
15 Nut
