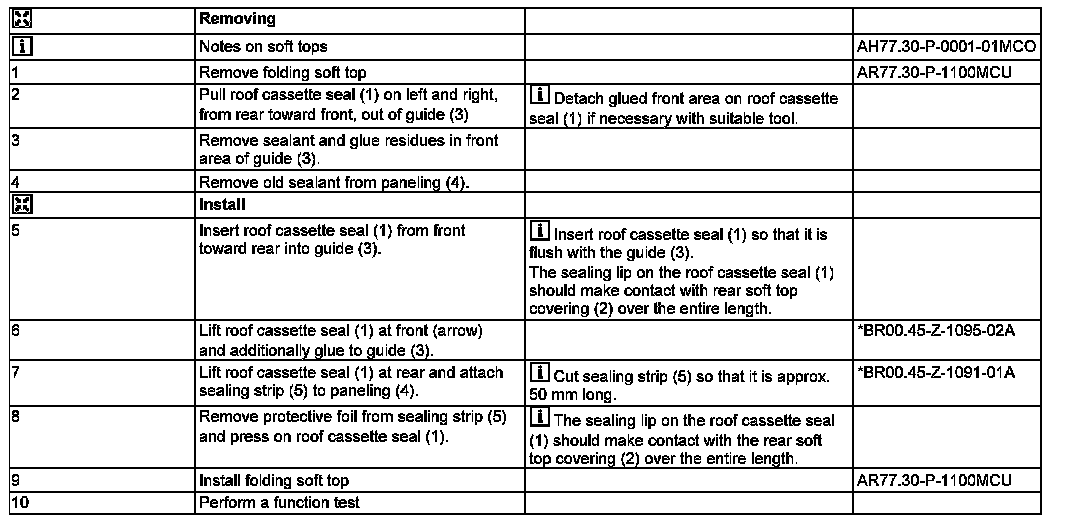

AR77.30-P-1109MCU Remove/Install Soft Top Roof Cassette



AR77.30-P-1109MCU Remove/Install Soft Top Roof Cassette

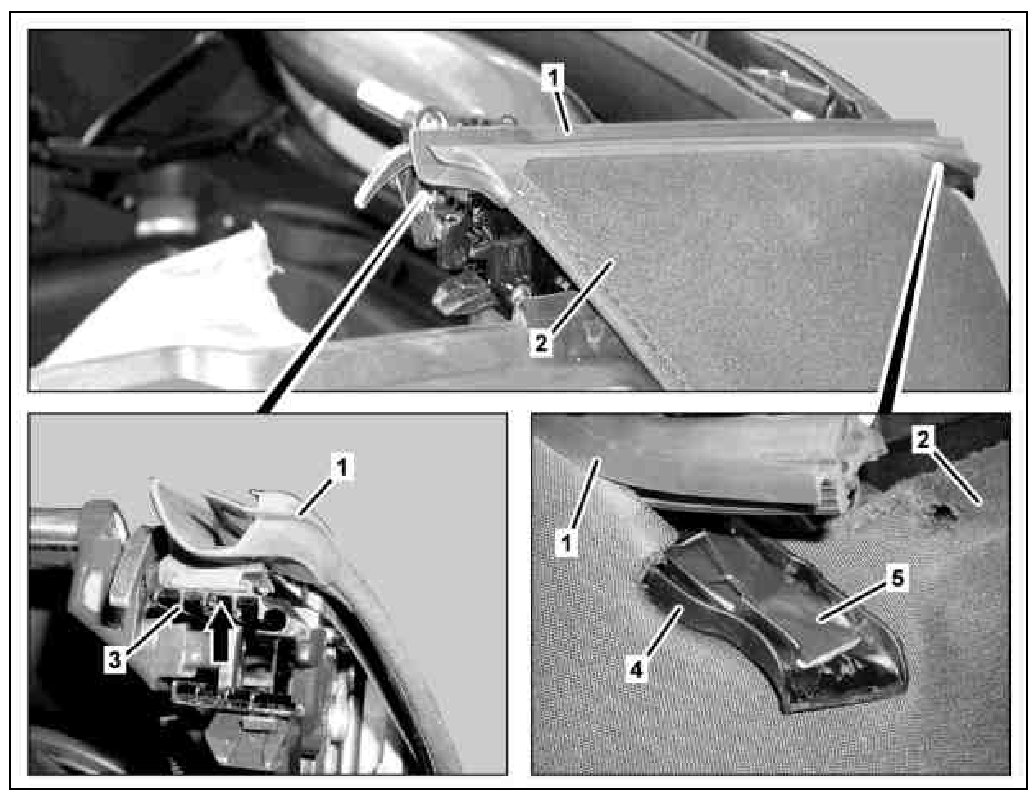

1 Roof cassette seal
2 Rear soft top
3 Guide
4 Trim
5 Sealing strip
