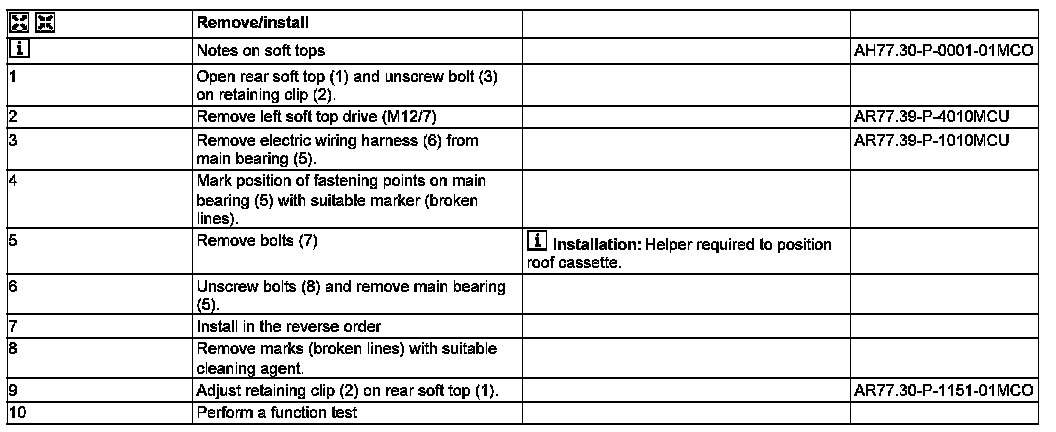

AR77.30-P-1108MCU Remove/Install Soft Top Main Bearing

AR77.30-P-1108MCU Remove/Install Soft Top Main Bearing

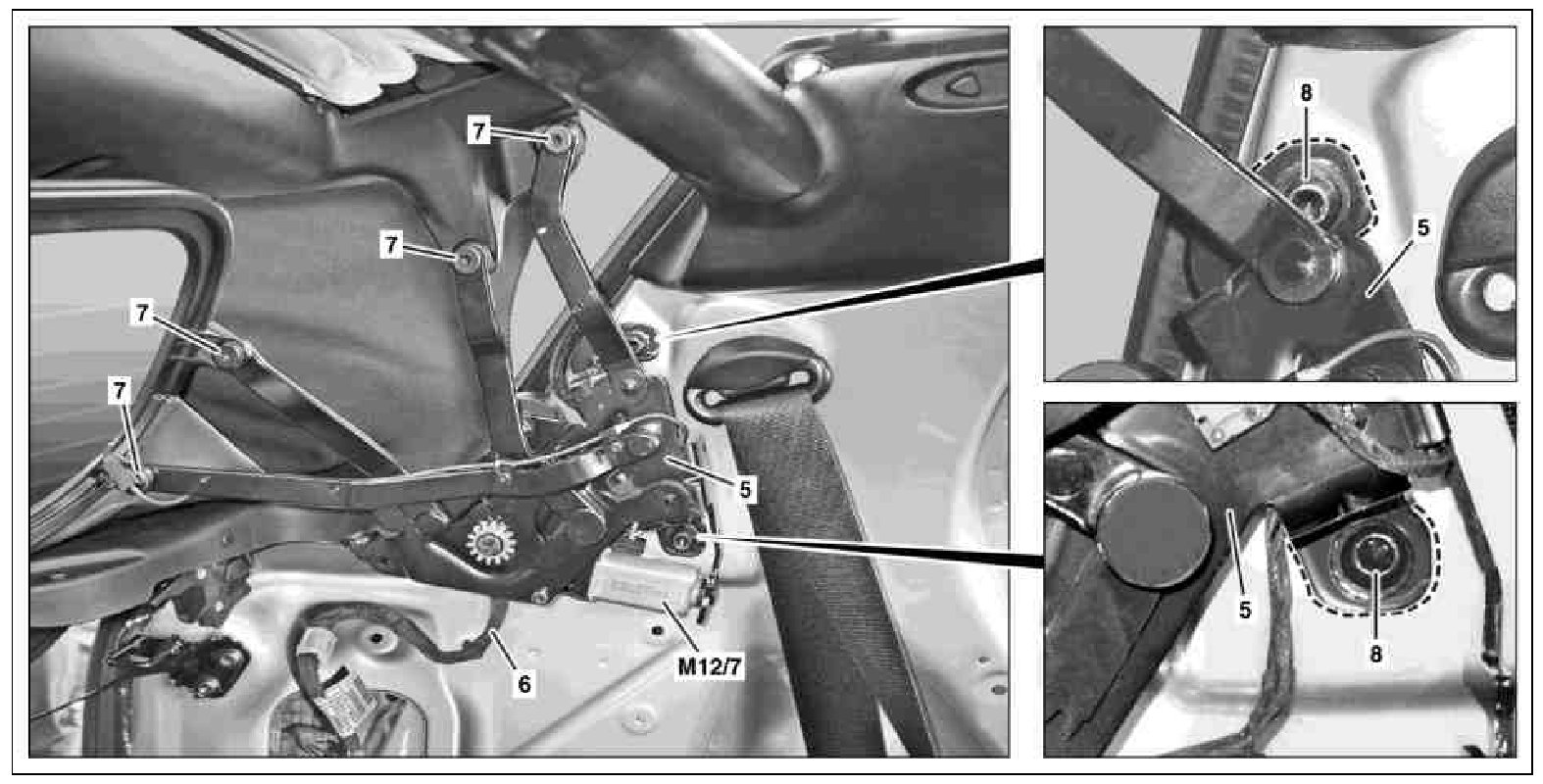

- Left main bearing

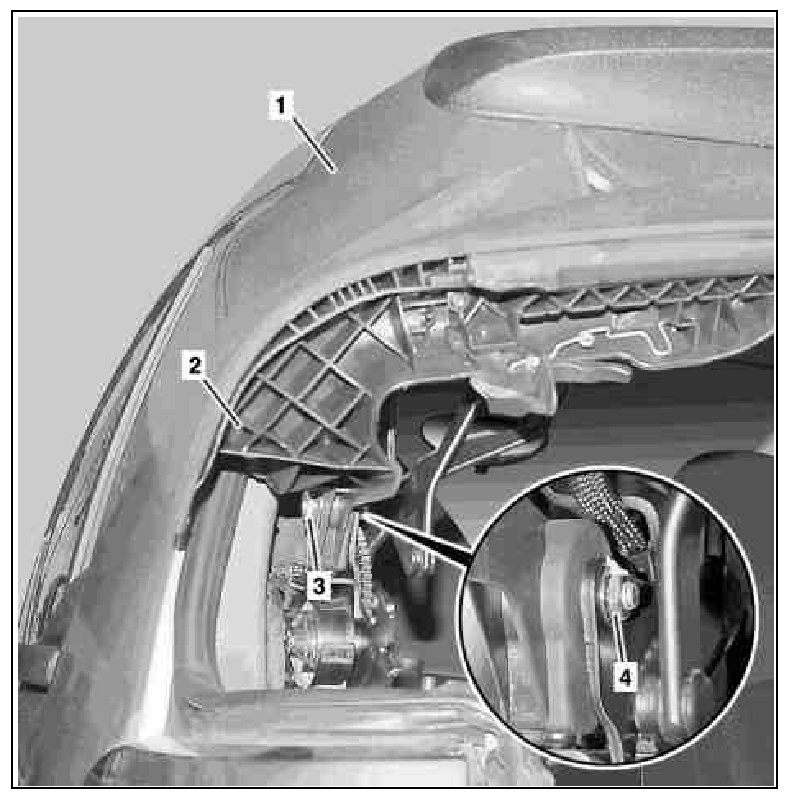

1 Rear soft top
2 Retaining clamp
3 Screw
4 Nut







5 Main bearing
6 Wiring harness
7 Screw
8 Screw
M12/7 Left soft top drive
