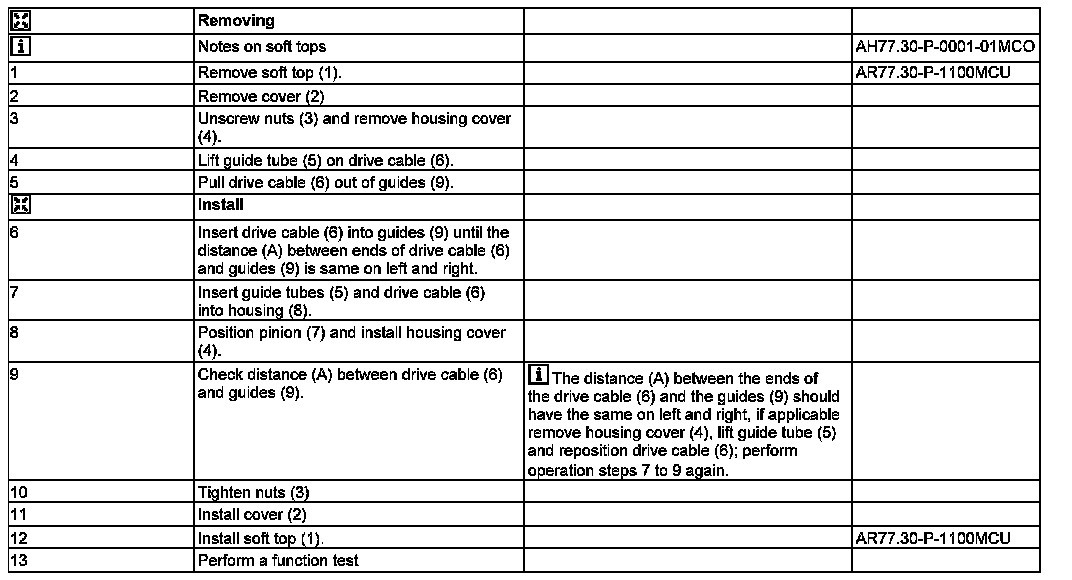

AR77.30-P-1104MCU Remove/Install Soft Top Drive Cable

AR77.30-P-1104MCU Remove/Install Soft Top Drive Cable

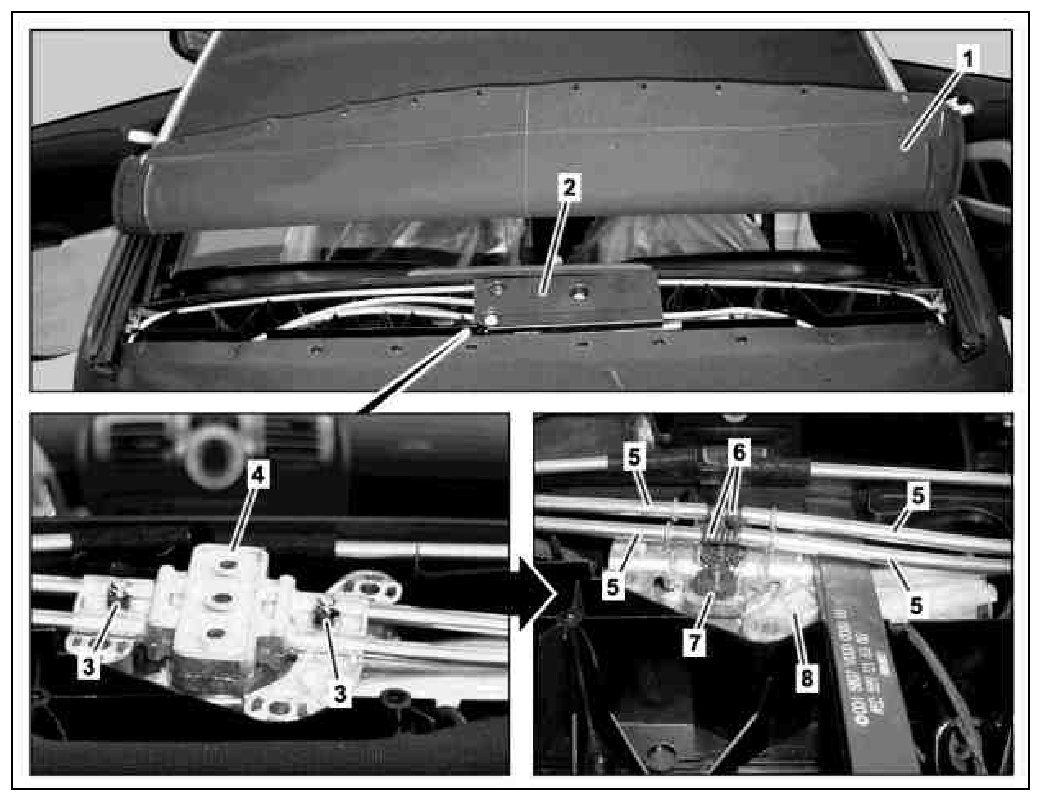

1 Folding top
2 Cover
3 Nut
4 Housing cover
5 Guide tube
6 Drive cable
7 Pinion
8 Housing

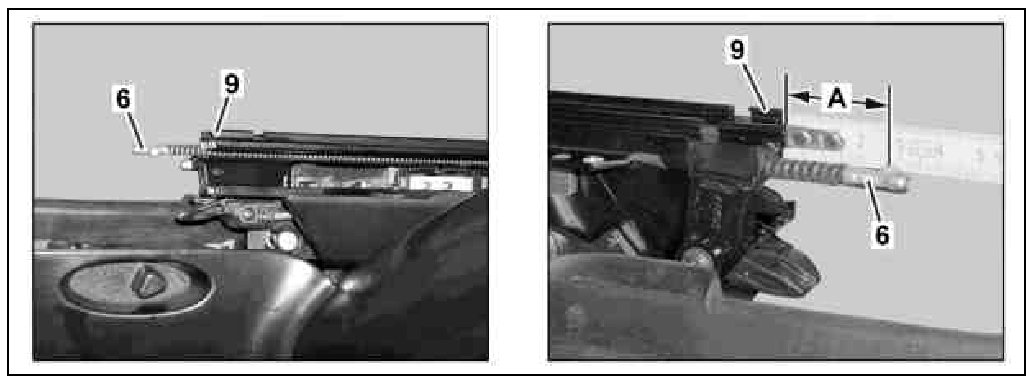

6 Drive cable
9 Guide
A Distance
