AR77.30-P-1103MCU Remove/Install Soft Top Roof Cassette

AR77.30-P-1103MCU Remove/Install Soft Top Roof Cassette

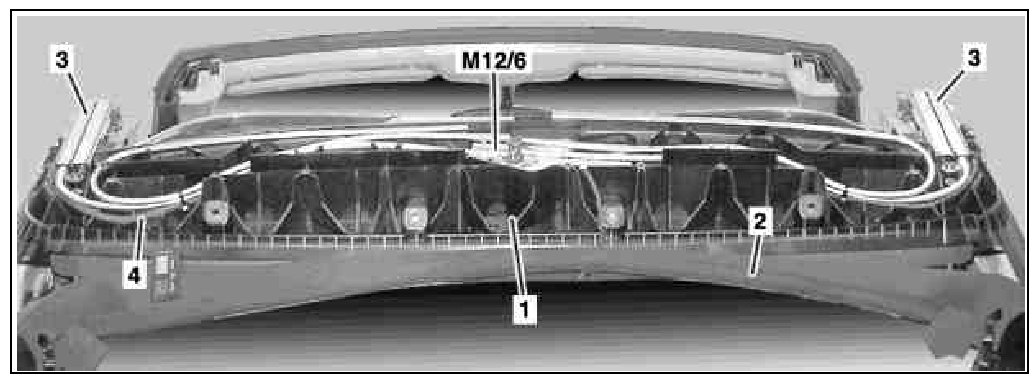

1 Roof cassette
2 Rear soft top
3 Roof cassette plug
4 Wiring harness
M12/6 Electric soft top motor

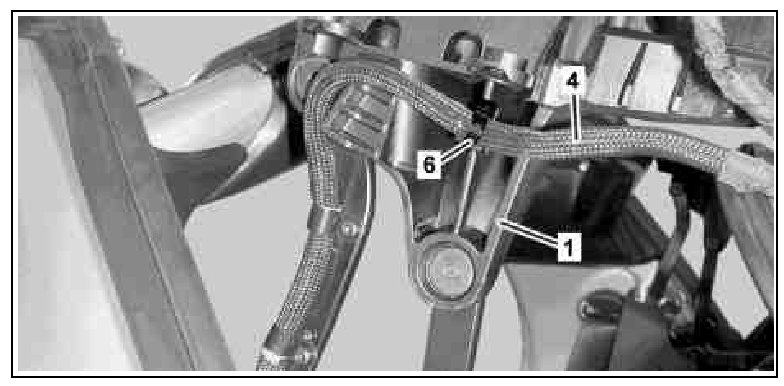

1 Roof cassette
4 Wiring harness
6 Cable tie

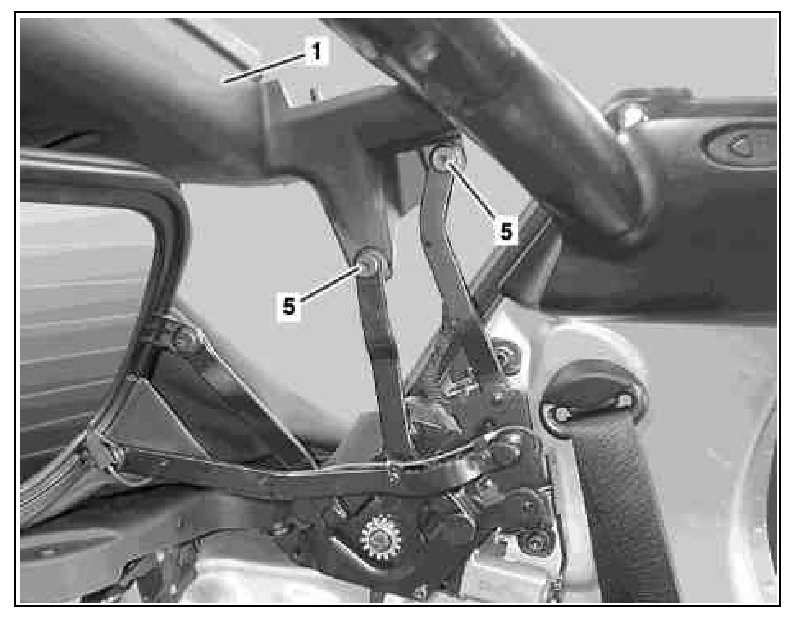

Shown on left side of vehicle







1 Roof cassette
5 Screw
