AR77.30-P-1102MCU Tension Folding Top

AR77.30-P-1102MCU Tension Folding Top

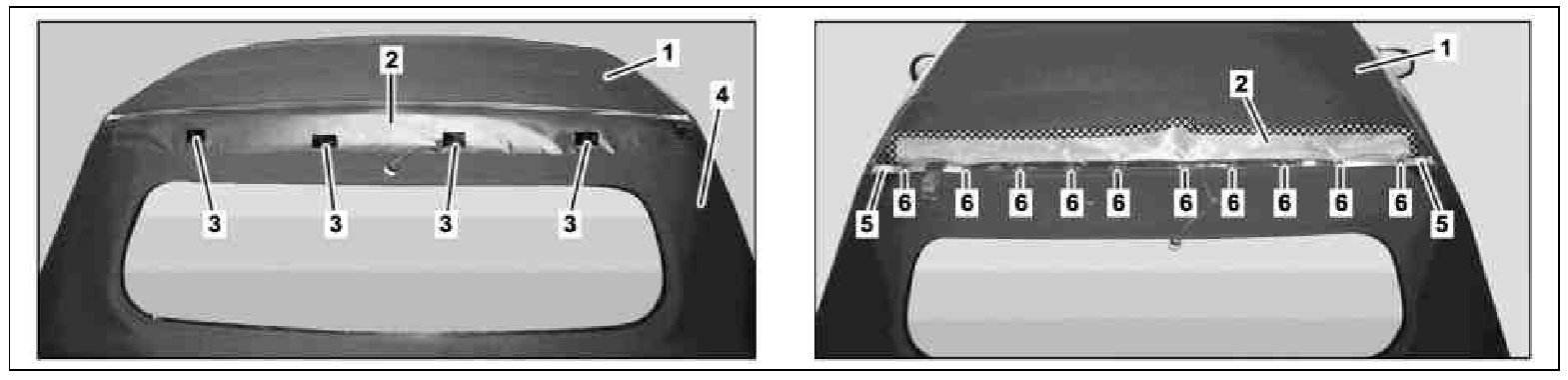

1 Folding top
2 Sealing
3 Sealing strip
4 Rear soft top
5 Tension cable retaining plate
6 Screw







1 Folding top
7 Side support
8 Clamping plate
9 Screw
10 Tensioning strap
