AR77.30-P-1100MCU Remove/Install Folding Top

AR77.30-P-1100MCU Remove/Install Folding Top







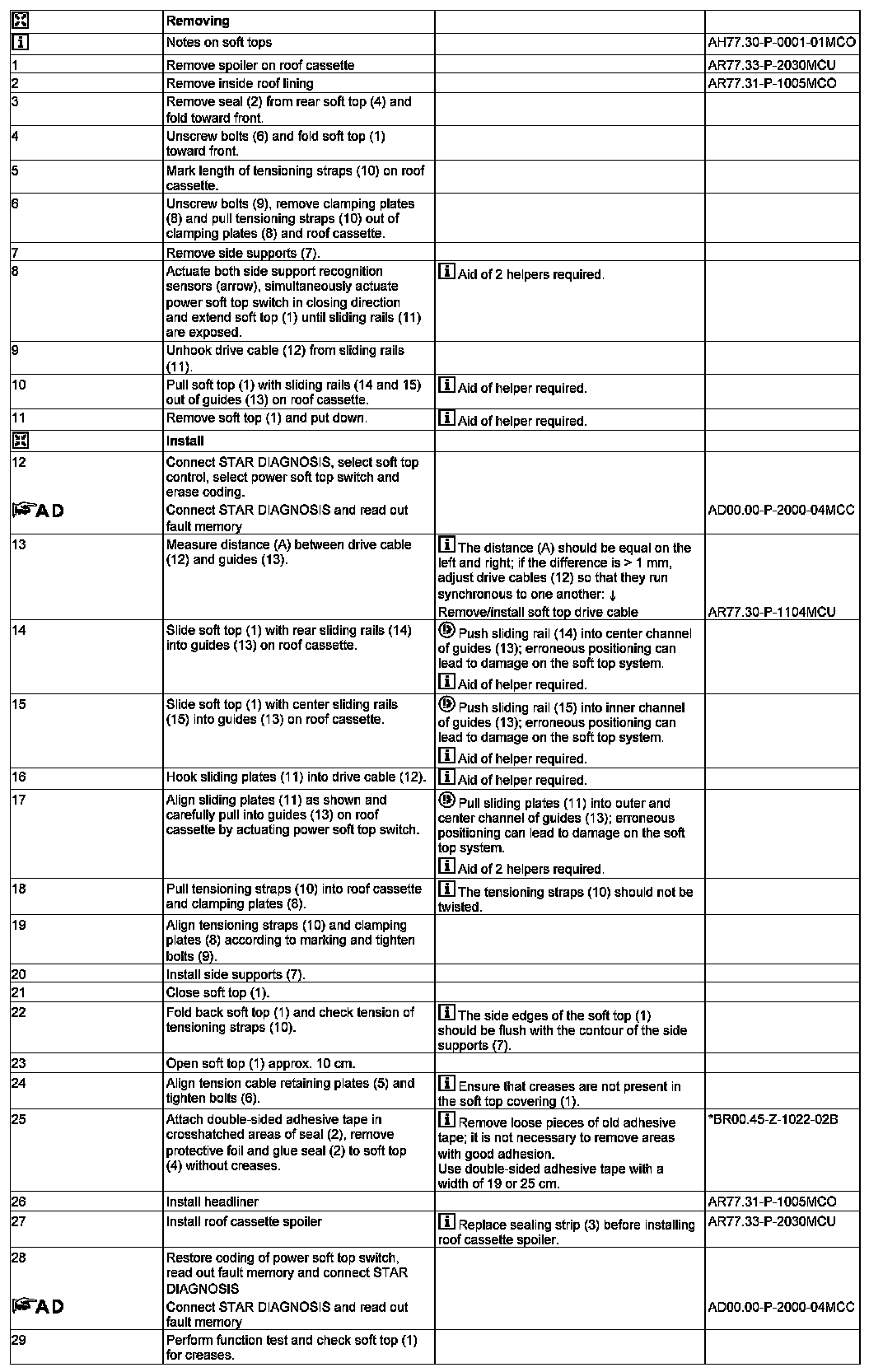

1 Folding top
2 Sealing
3 Sealing strip
4 Rear soft top
5 Tension cable retaining plate
6 Screw

Shown on right side of vehicle

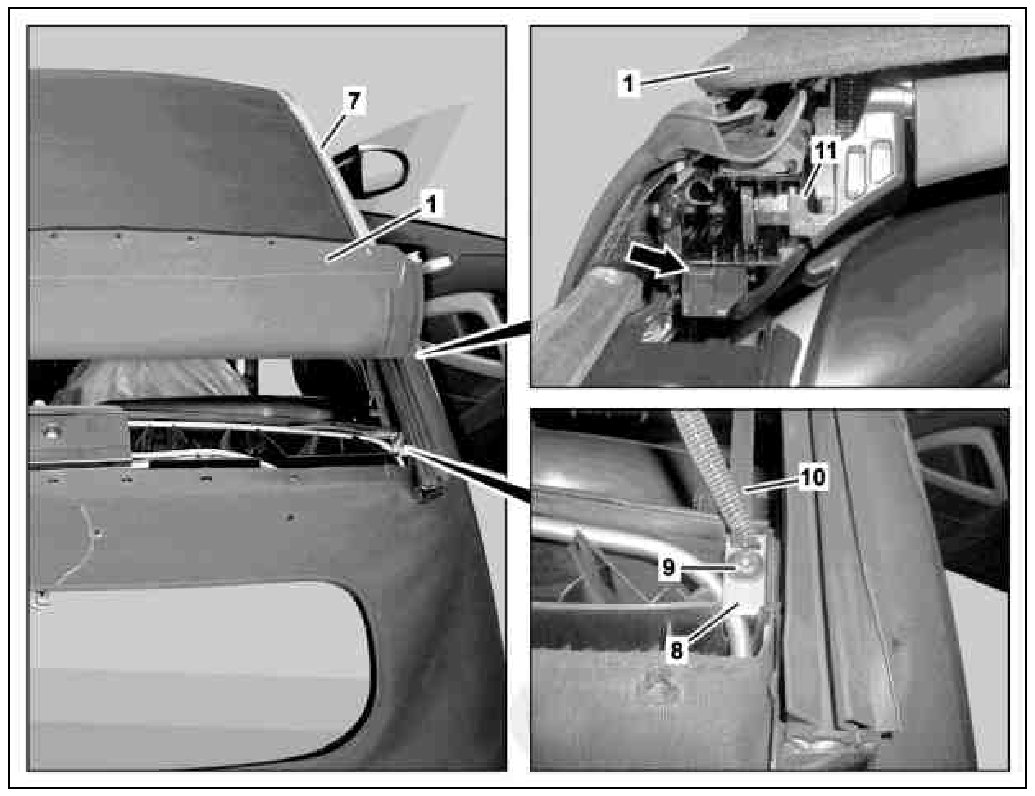

1 Folding top
7 Side support
8 Clamping plate
9 Screw
10 Tensioning strap
11 Sliding plate

Shown on left side of vehicle







12 Drive cable
13 Guide
14 Slider
15 Slider

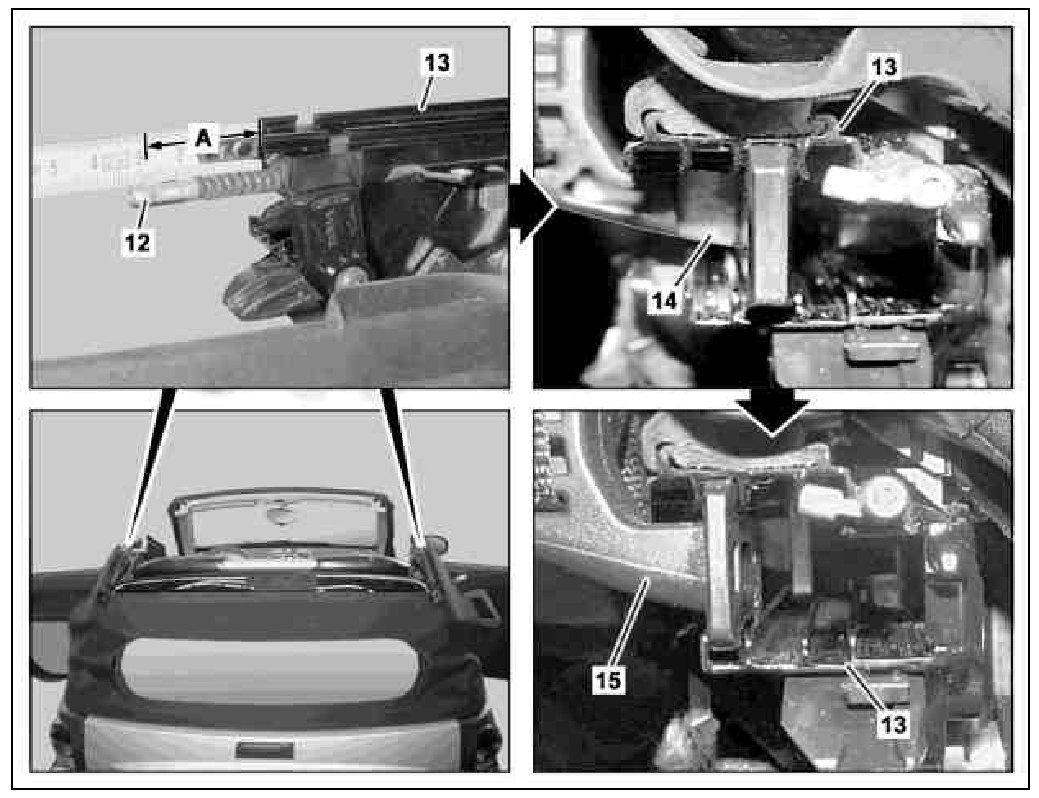

A Distance

Shown on right side of vehicle

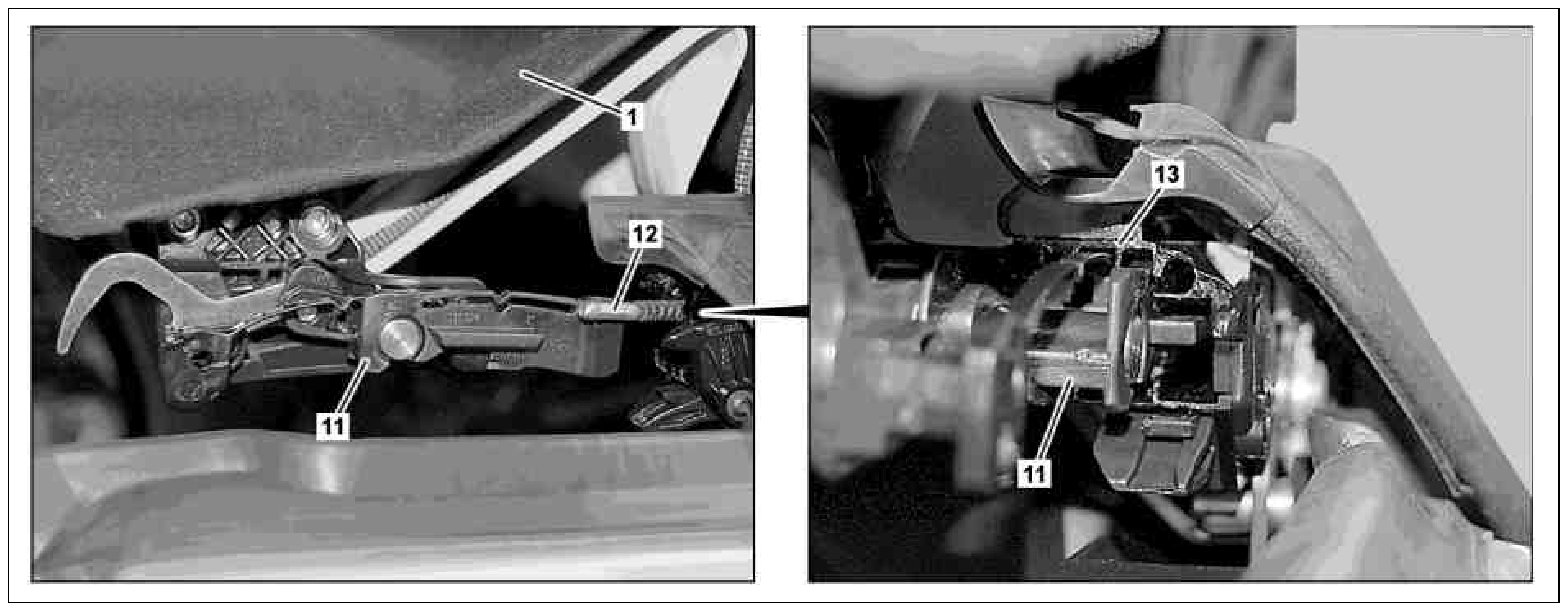

1 Folding top
11 Sliding plate
12 Drive cable
13 Guide
