Convertible Top: Diagrams

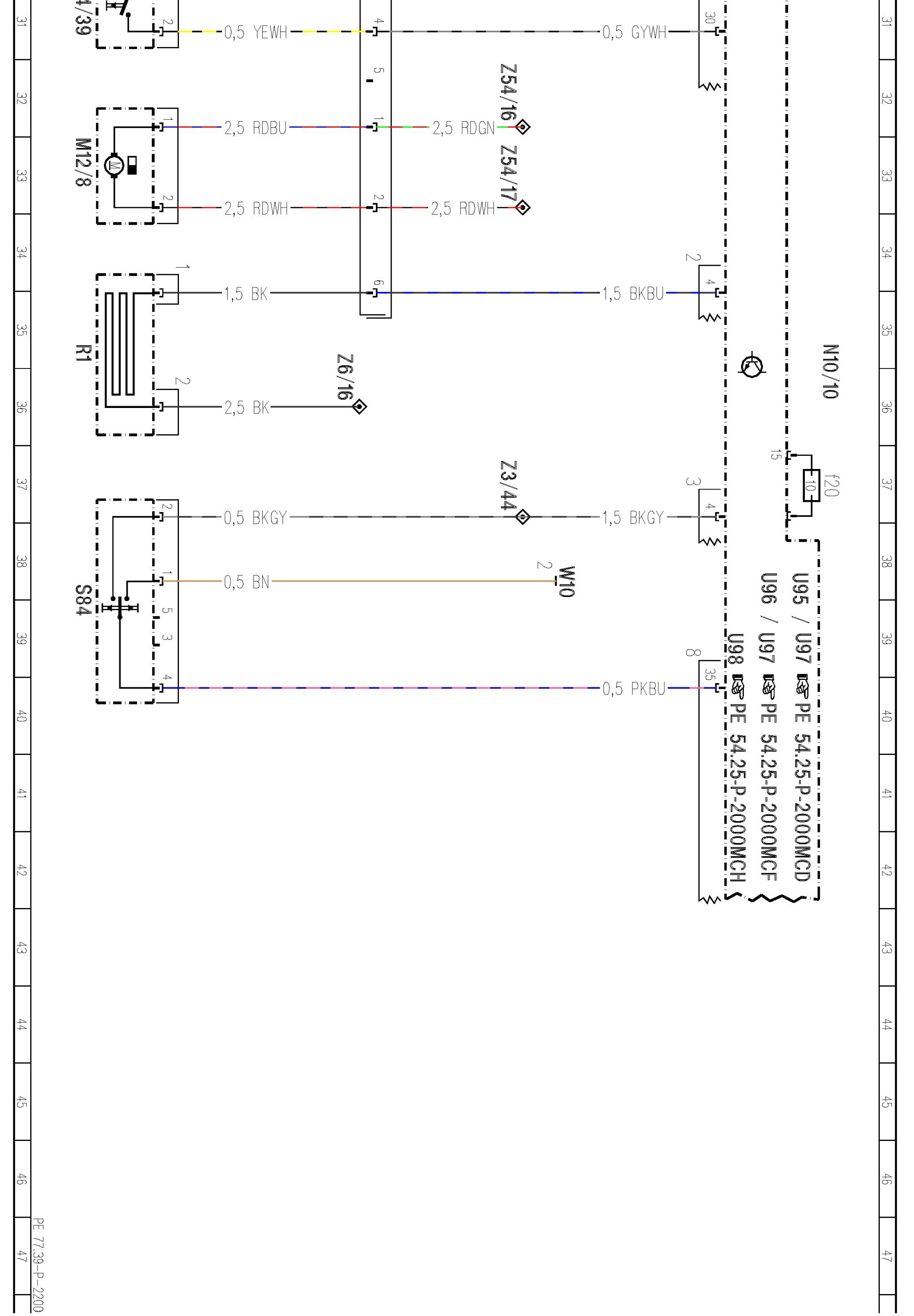

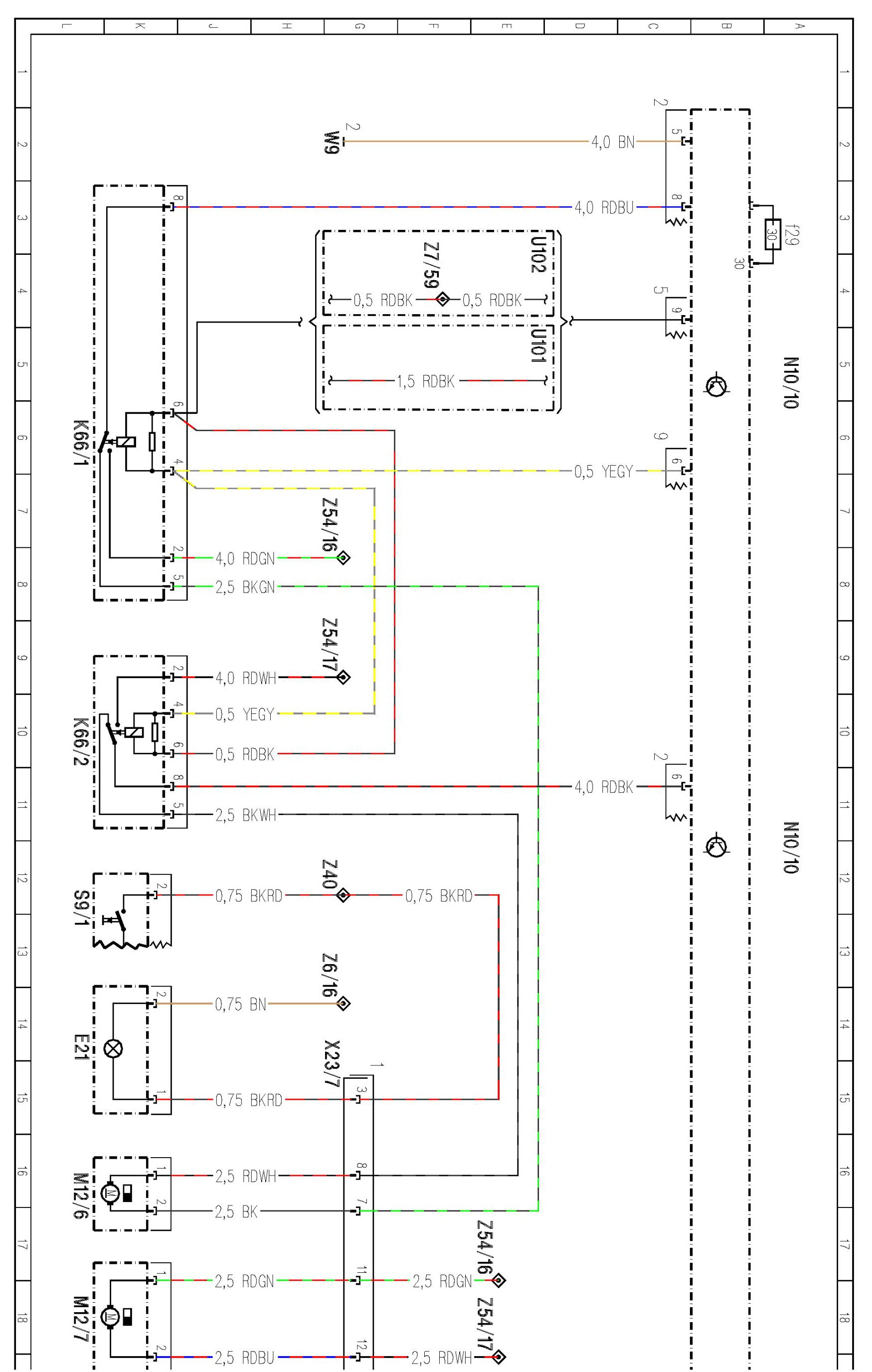

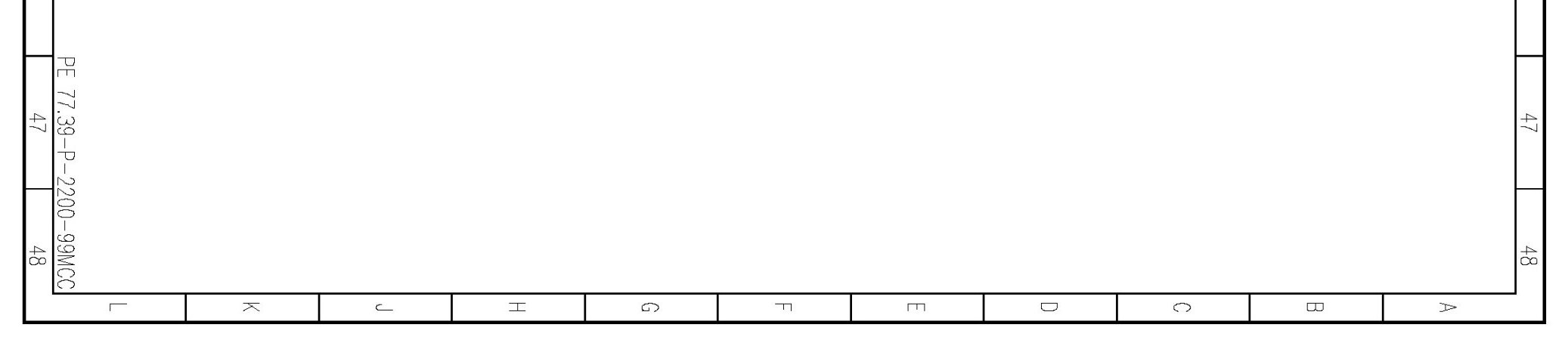

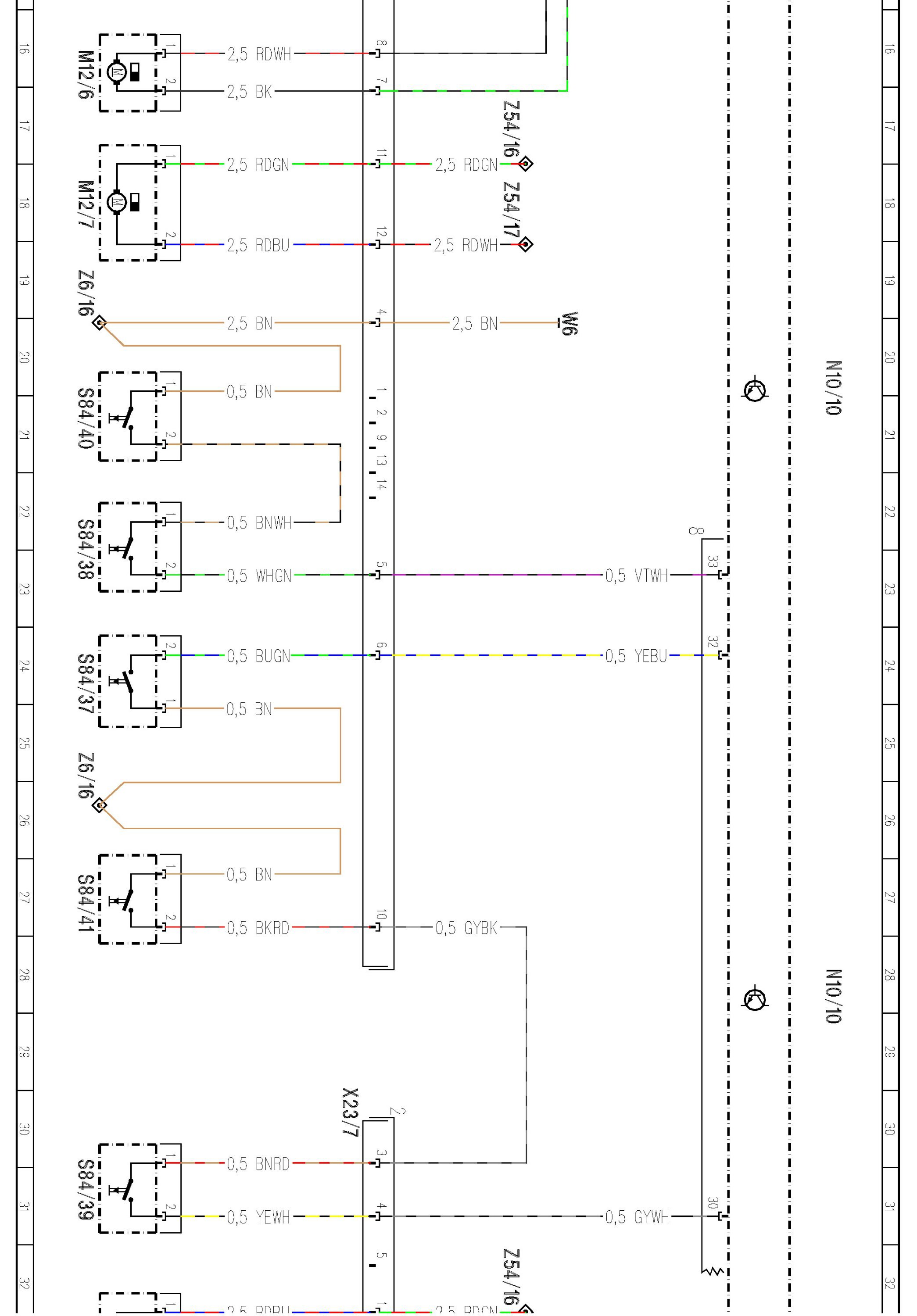

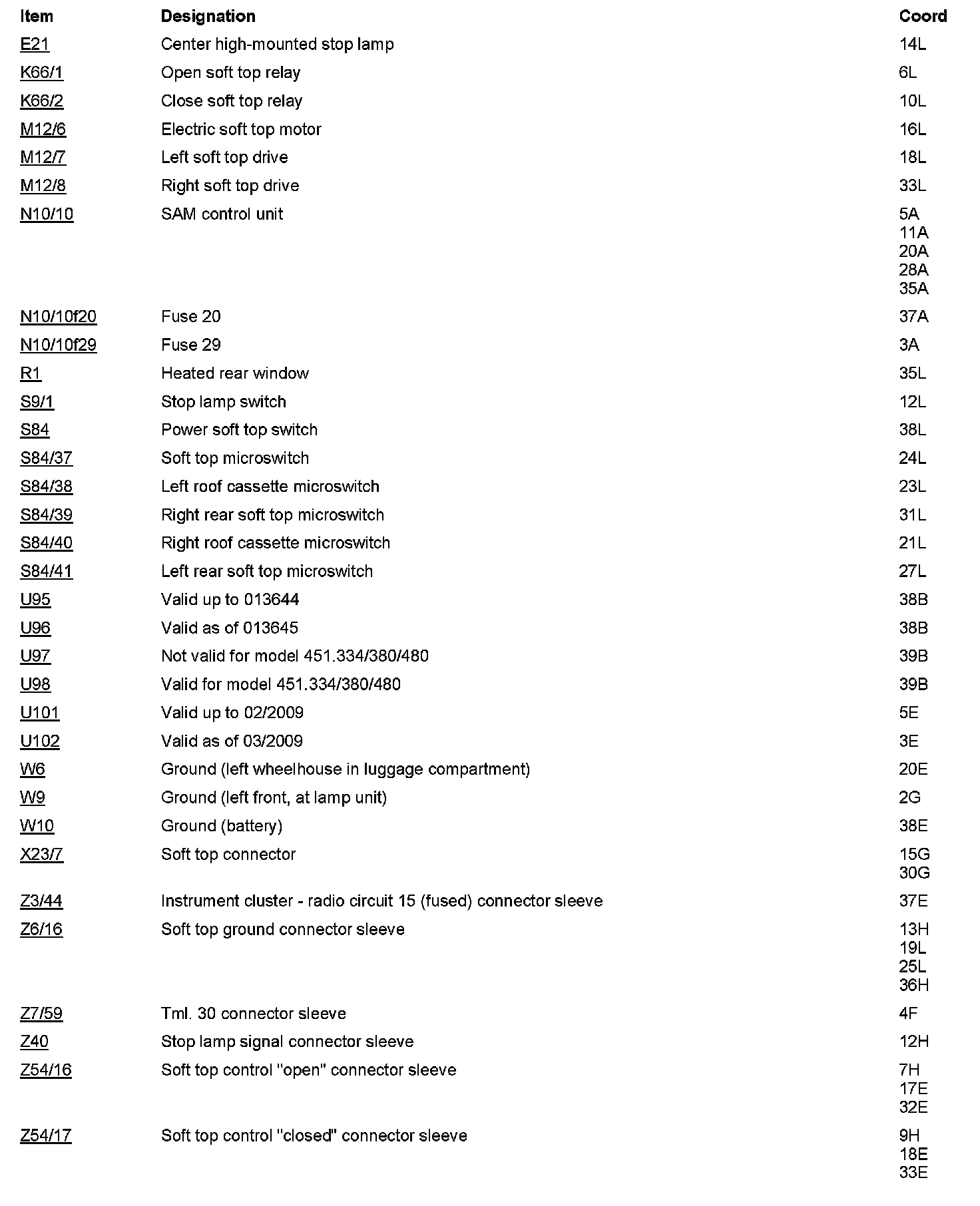

PE77.39-P-2200MCC Electric Wiring Diagram For Electric Soft Top

451 77 Overview of wiring diagrams sliding roof, soft top
Model 451
