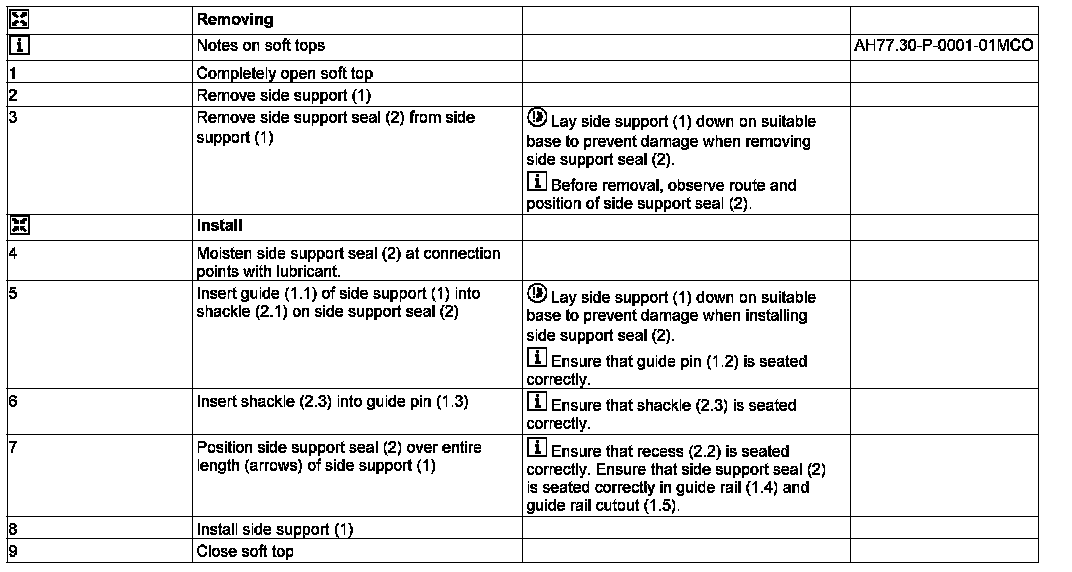

AR77.33-P-1010MCO Remove, instal side support seal

AR77.33-P-1010MCO Remove, Instal Side Support Seal

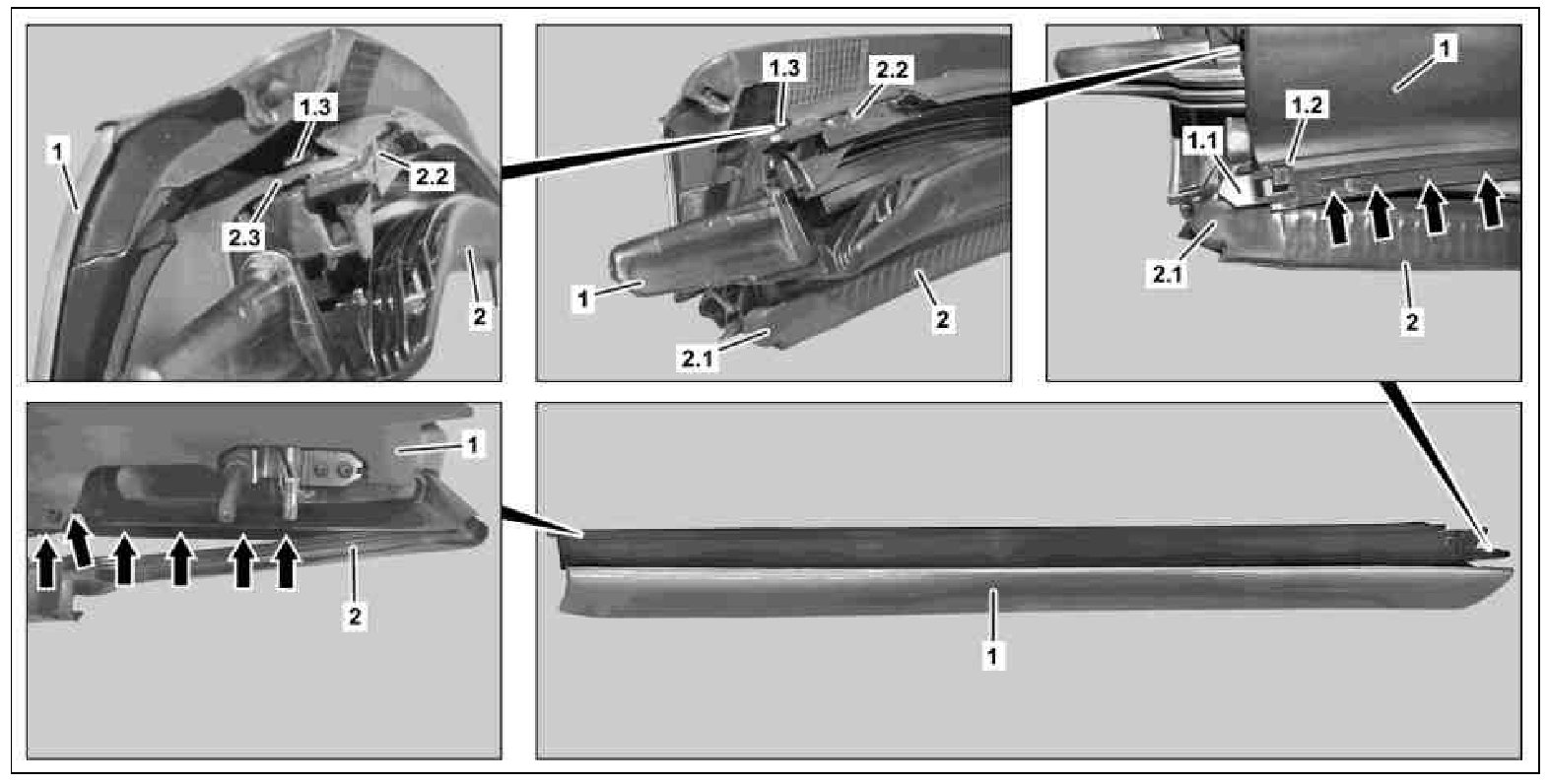

1 Side support
1.1 Guide
1.2 Guide pin
1.3 Guide lug
2 Side support seal
2.1 Lug
2.2 Instancing
2.3 Lug

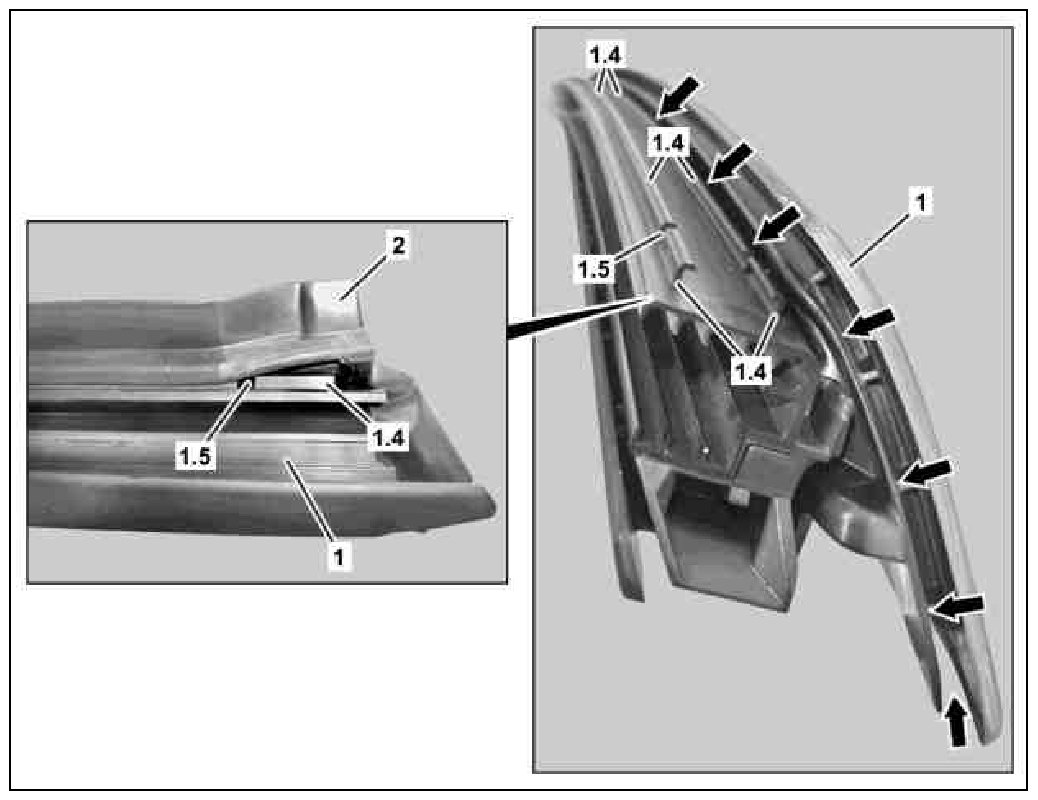

1 Side support
1.4 Guide rail
1.5 Guide rail cutout
2 Side support seal
