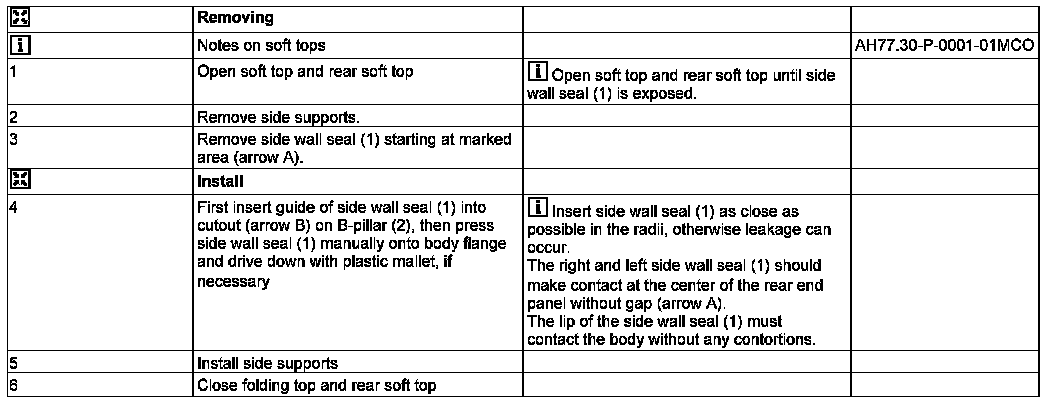

AR77.30-P-3350MCC Remove/Install Side Wall Seal
AR77.30-P-3350MCC Remove/Install Side Wall Seal
AR77.30-P-3350MCC Remove/Install Side Wall Seal

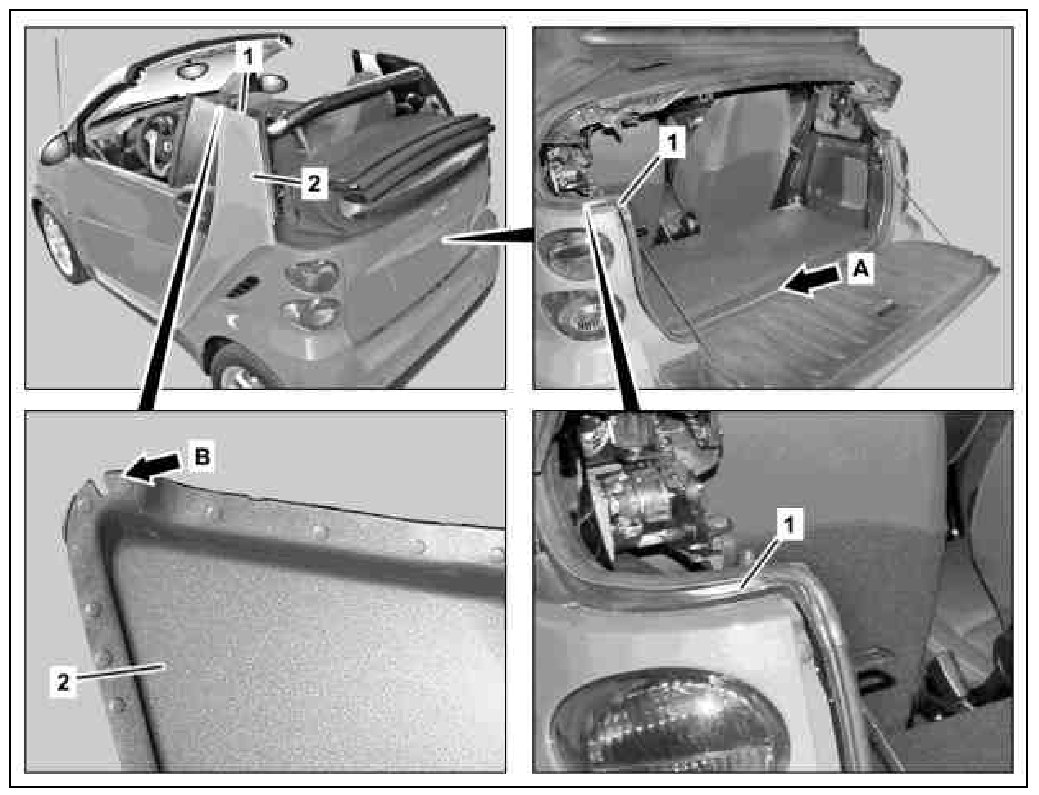

1
Side wall seal
2
B-pillar
