Convertible Top Switch: Service and Repair

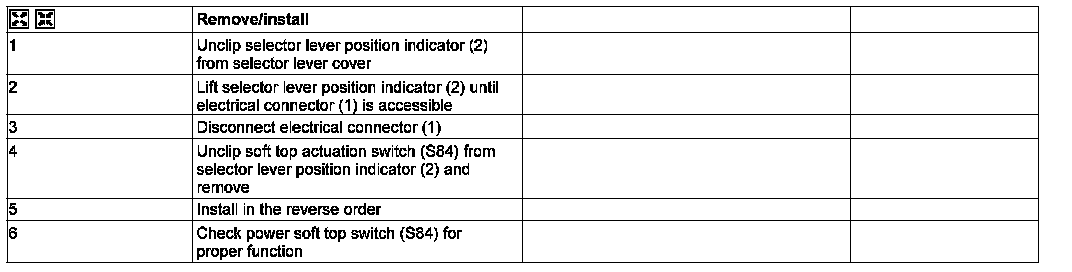

AR77.39-P-1000MCU Remove/Install Power Soft Top Switch

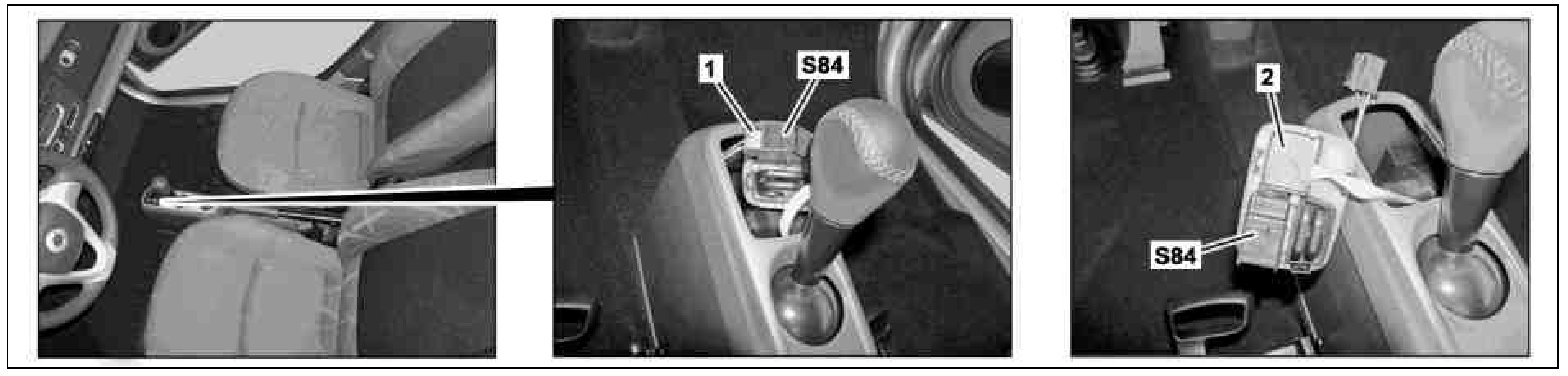

1 Electrical connector
2 Selector lever position indicator
S84 Power soft top switch
