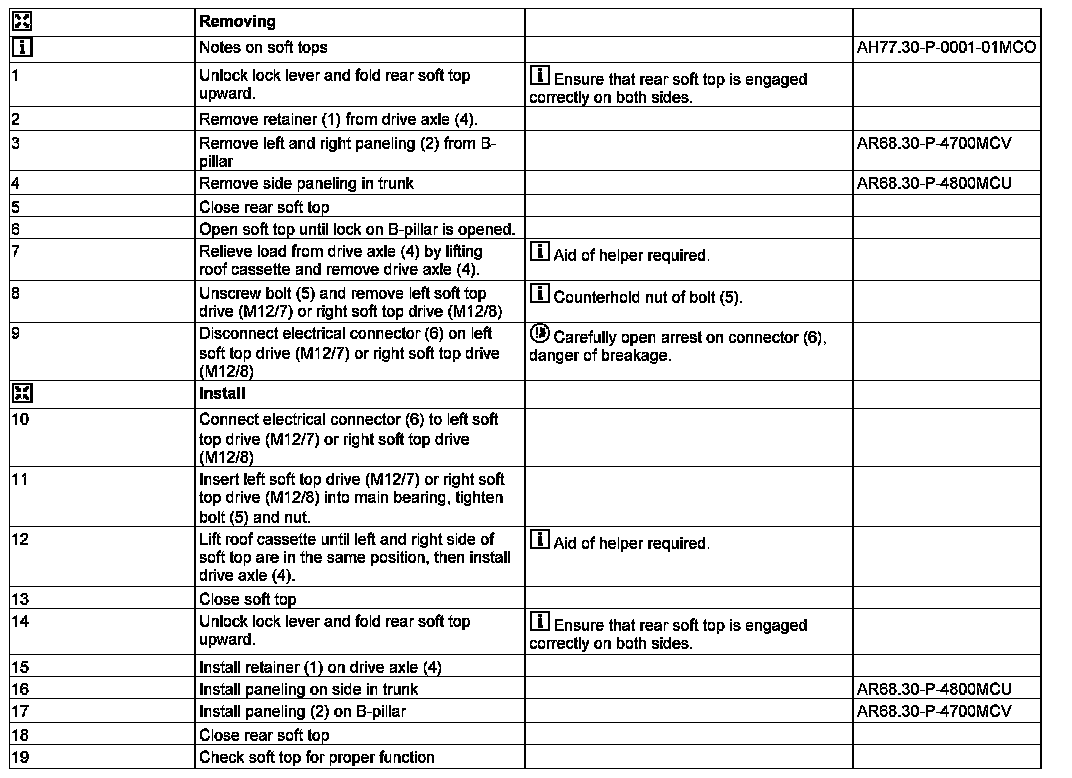

AR77.39-P-4010MCU Remove/Install Rear Soft Top Motor

AR77.39-P-4010MCU Remove/Install Rear Soft Top Motor

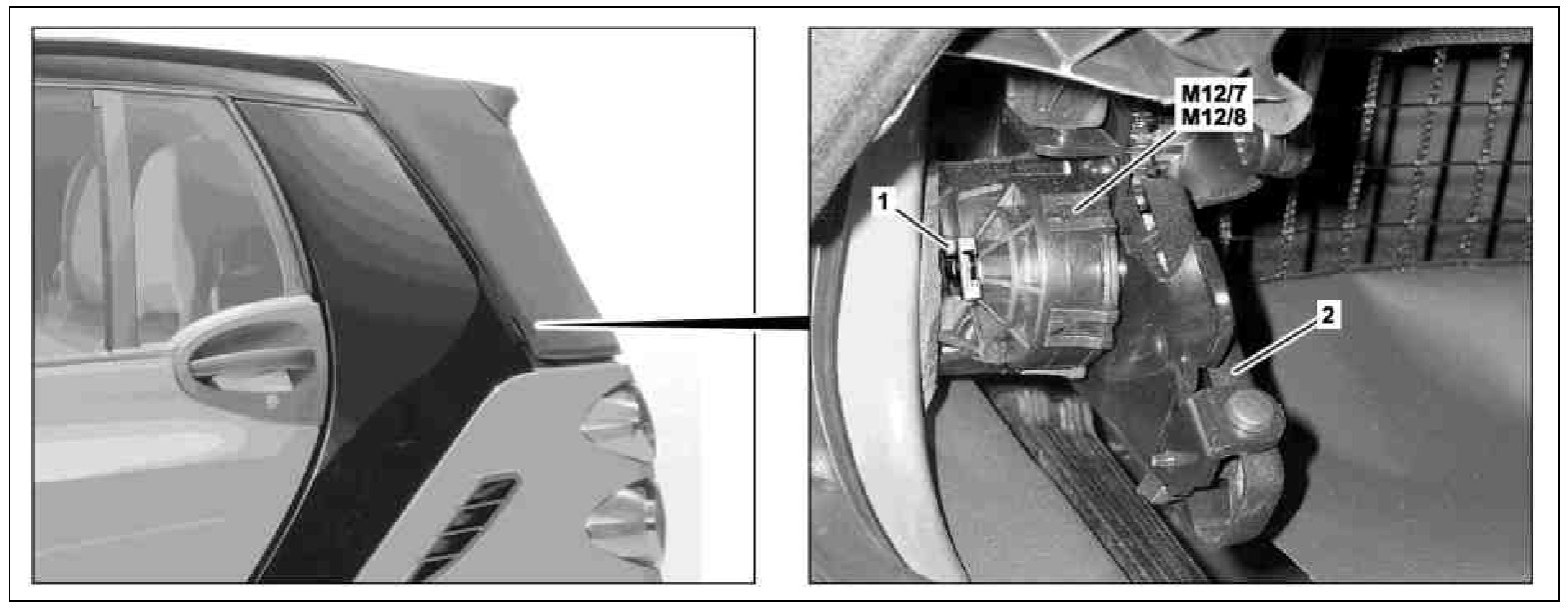

1 Retainer
2 Trim
M12/7 Left soft top drive
M12/8 Right soft top drive

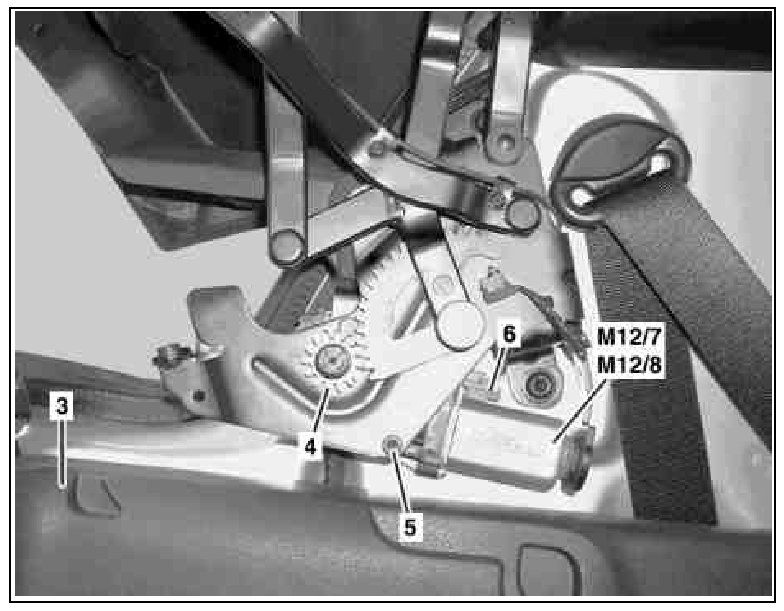

3 Trim
4 Driven axle
5 Screw
6 Electrical connector
M12/7 Left soft top drive
M12/8 Right soft top drive
