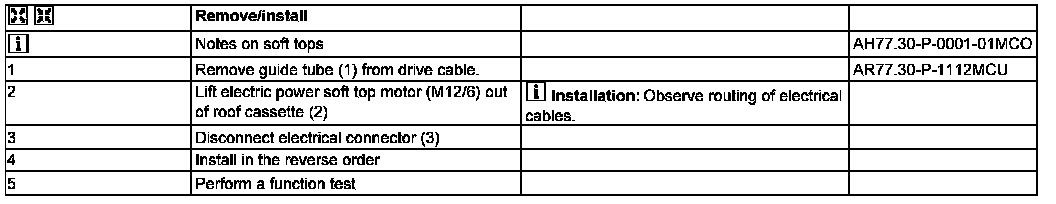

AR77.39-P-4000MCU Remove/Install Folding Top Motor



AR77.39-P-4000MCU Remove/Install Folding Top Motor

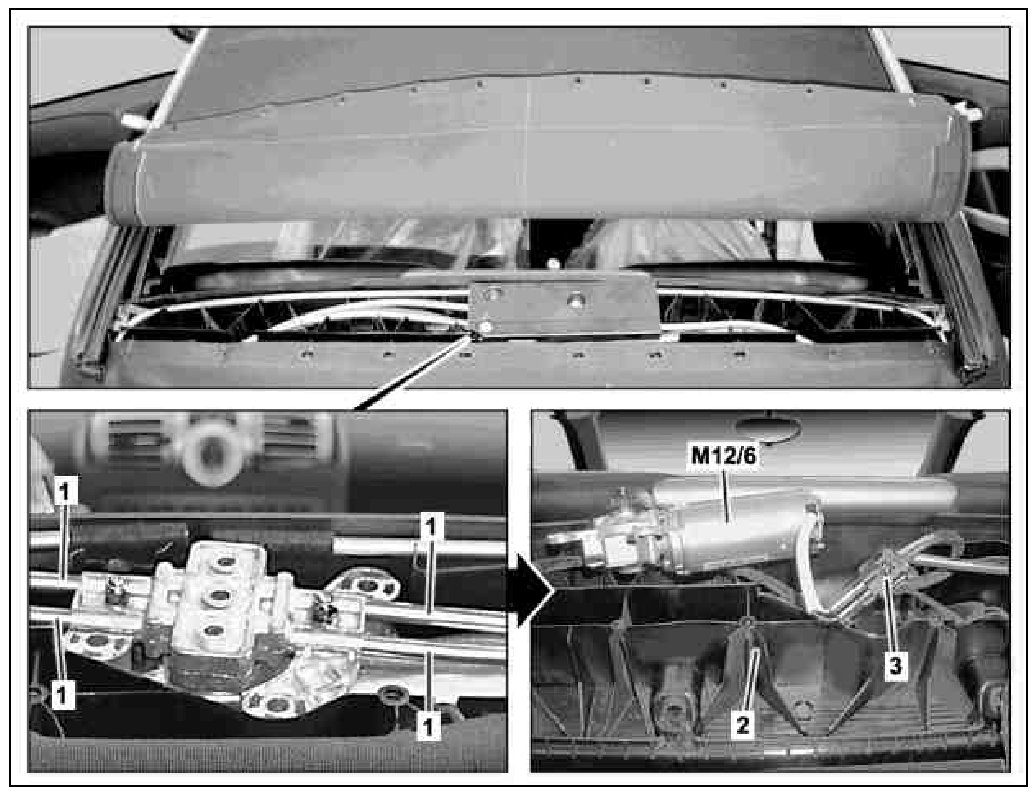

1 Guide tube
2 Roof cassette
3 Electrical connector
M12/6 Electric soft top motor
