Convertible Top Latch: Service and Repair

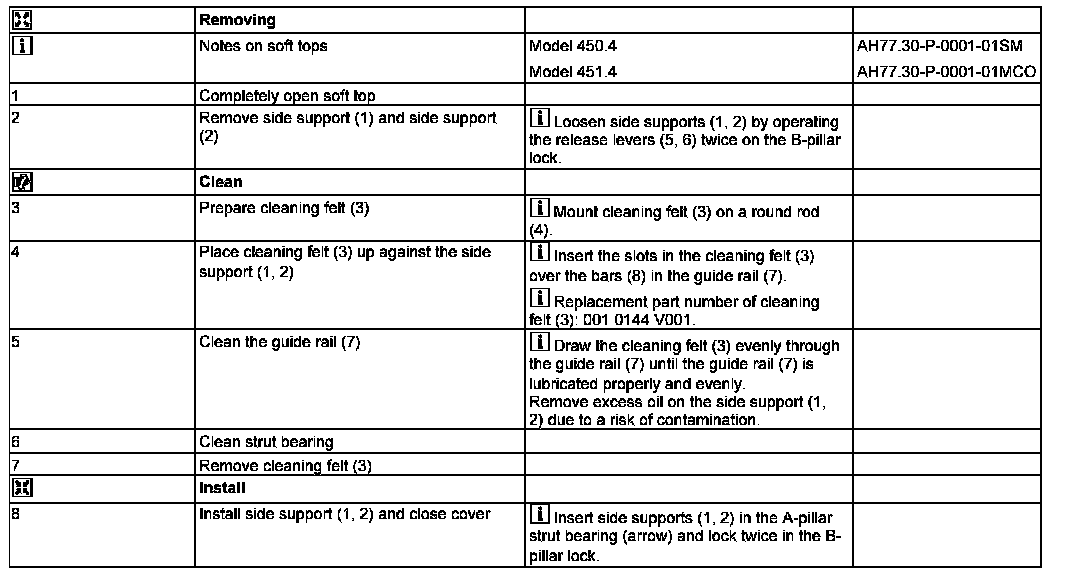

AP77.30-P-7734SM Clean Soft Top Guide

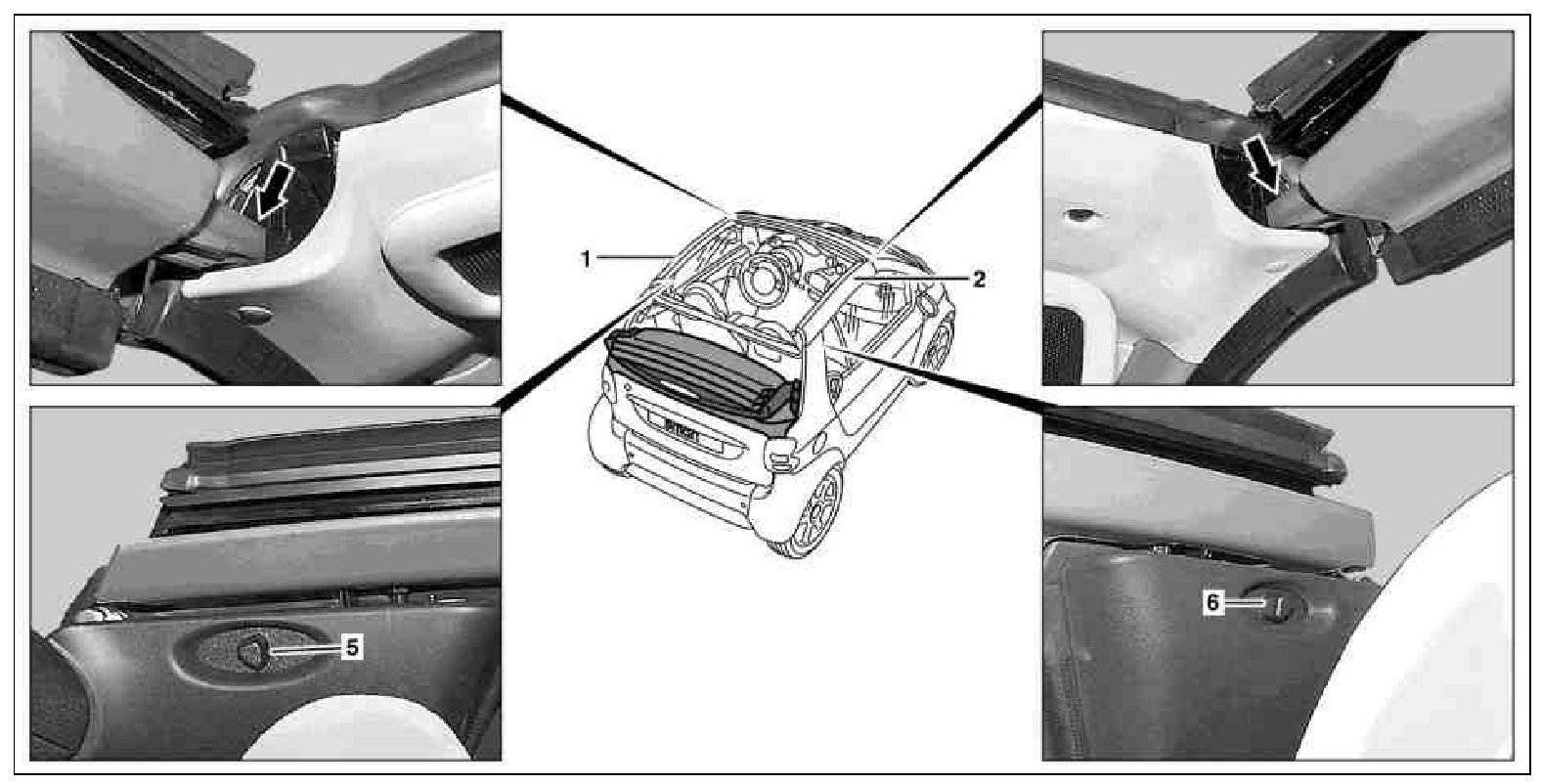

Shown on model 450.4







1 Side support
2 Side support
5 Release lever
6 Release lever

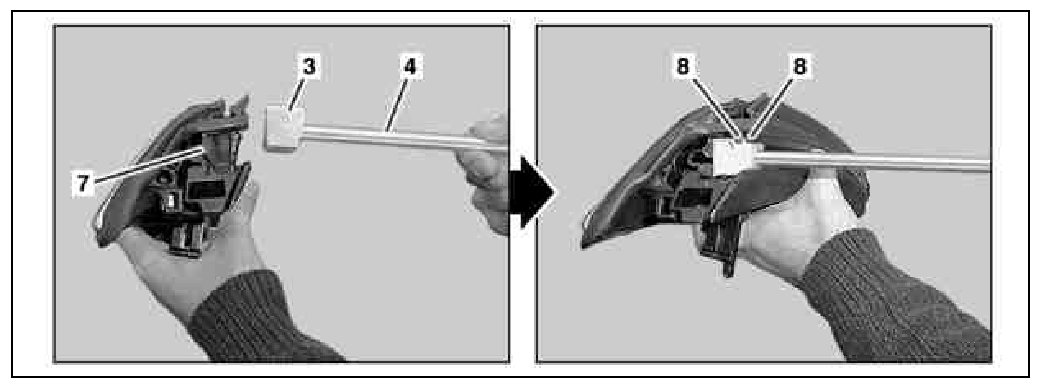

Illustrated on model 450.4







3 Cleaning felt
4 Round rod
7 Guide rail
8 Shoulder
