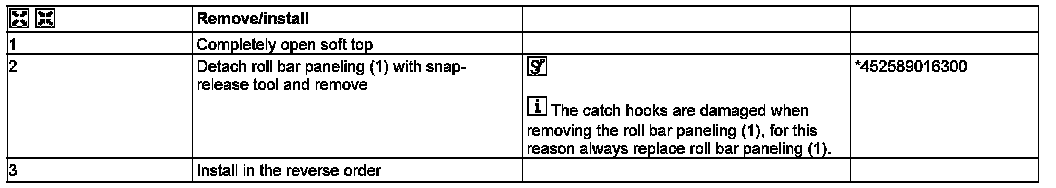

AR68.30-P-1380MCU Remove/Install Interior Paneling on Roll Bar

AR68.30-P-1380MCU Remove/Install Interior Paneling On Roll Bar

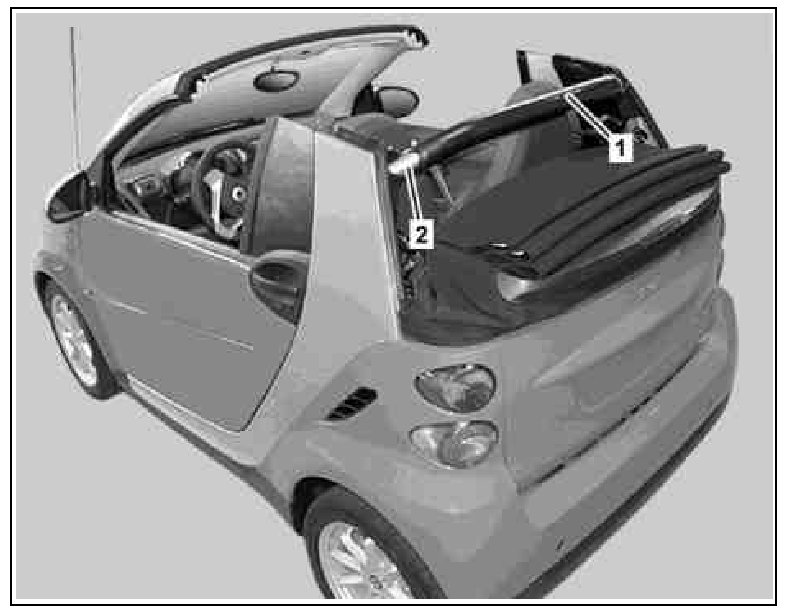

1 Roll bar paneling
2 Rollover bar

452 589 01 63 00, Snap-release tool
