ForTwo Cabrio (451.431) L3-1.0L (132.910)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roll Bar
>>
Service and Repair
>>

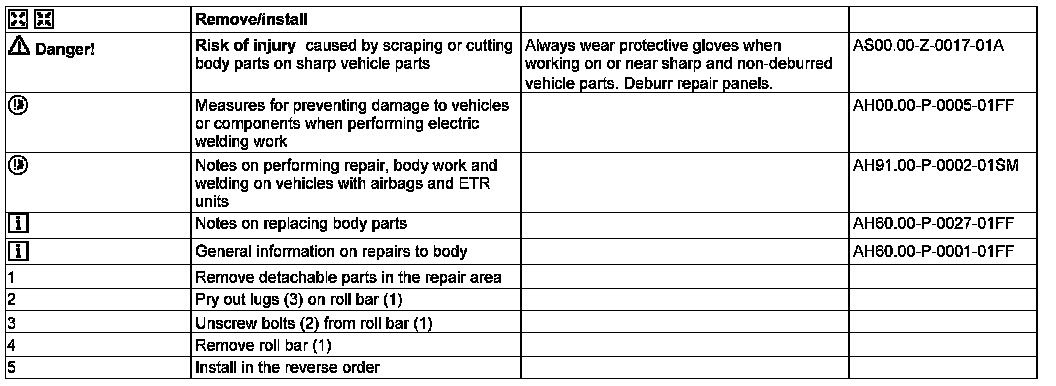

AR65.20-P-1056MCO Replace Roll Bar
AR65.20-P-1056MCO Replace Roll Bar
AR65.20-P-1056MCO Replace
Roll Bar

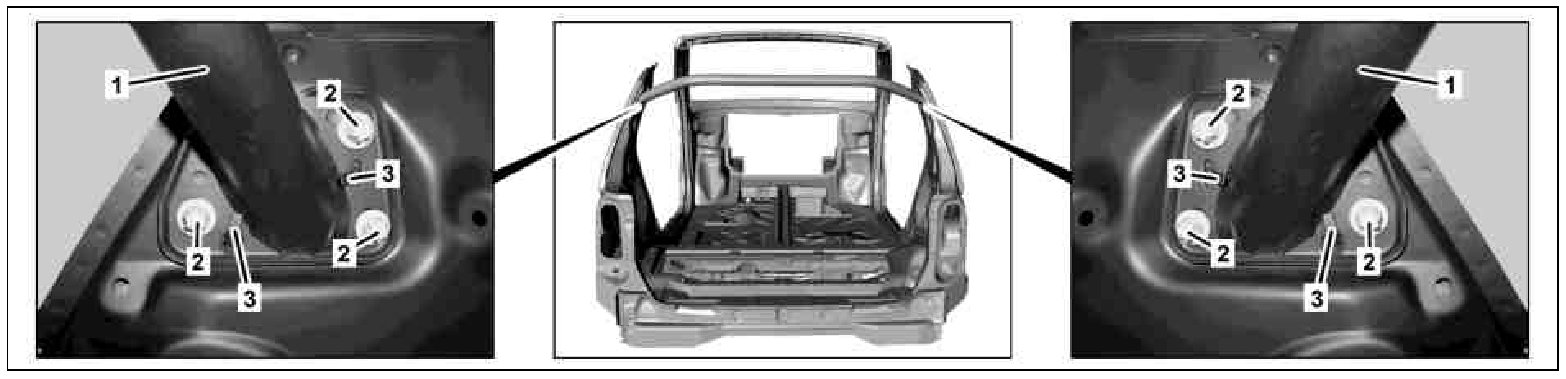

1
Rollover bar
2
Screw
3
Lug
