AR72.20-P-3515MCO Open Tailgate Using Emergency Unlocking Feature

AR72.20-P-3515MCO Open Tailgate Using Emergency Unlocking Feature

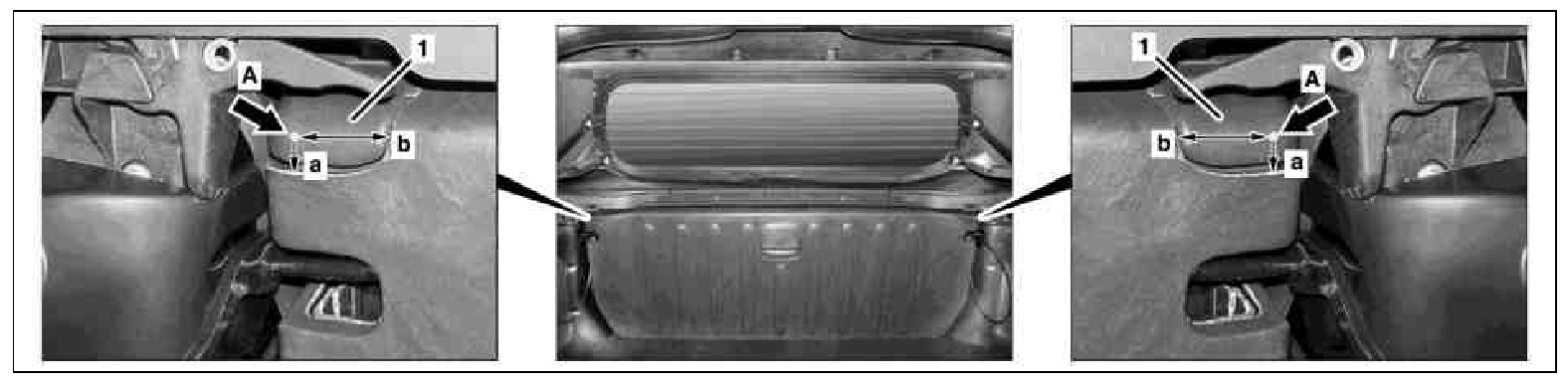

1 Rear-end door

Dimensions:
a 10 mm
b 30 mm

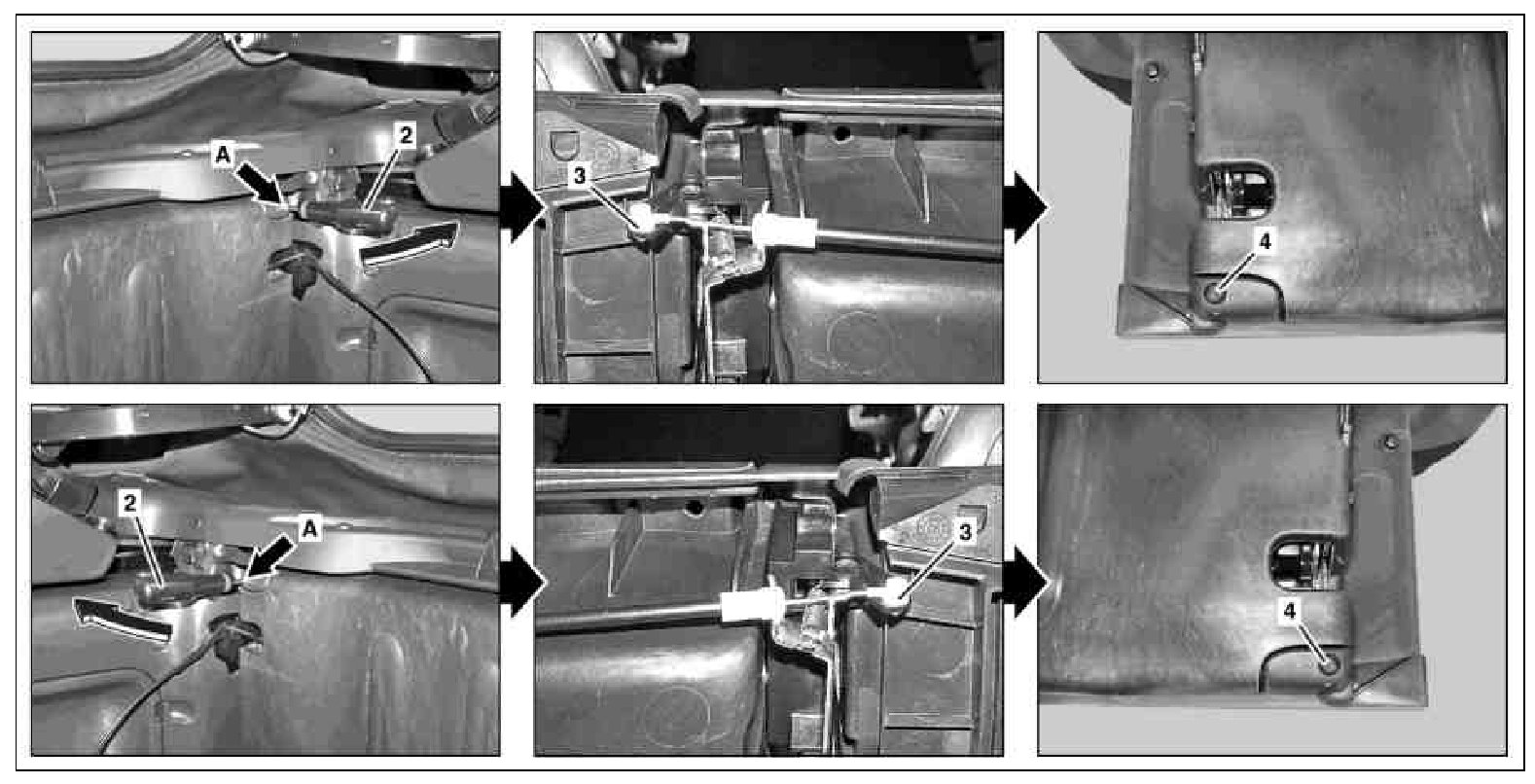

2 Screwdriver
3 Relay lever
4 Expansion clip












450 589 01 70 00, Twist drill bit set
