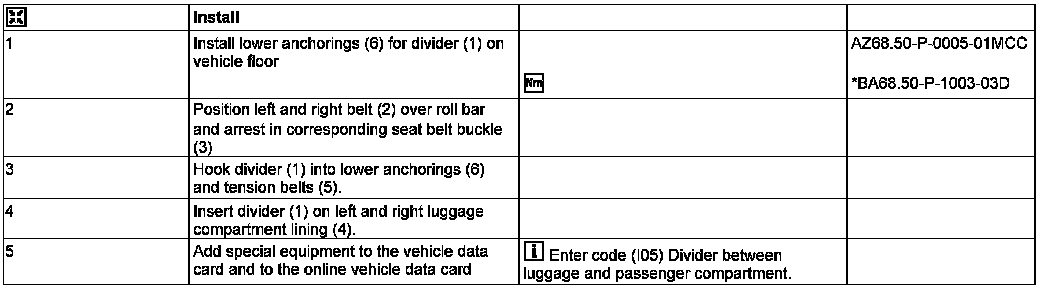

AZ68.50-P-0005MCO Install separation guard between luggage and passenger compartment



AZ68.50-P-0005MCO Install Separation Guard Between Luggage And Passenger Compartment

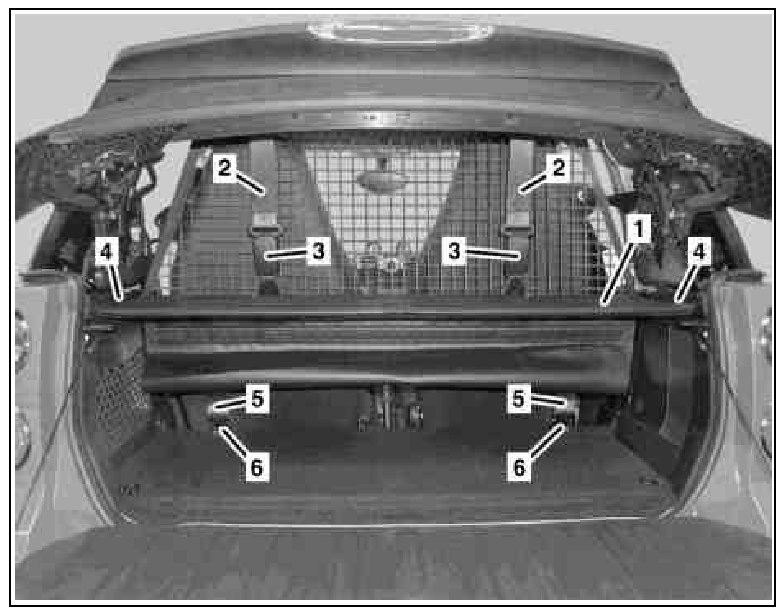

1 Divider
2 Belt
3 Seat belt buckle
4 Trunk lining
5 Belt
6 Lower anchorings
