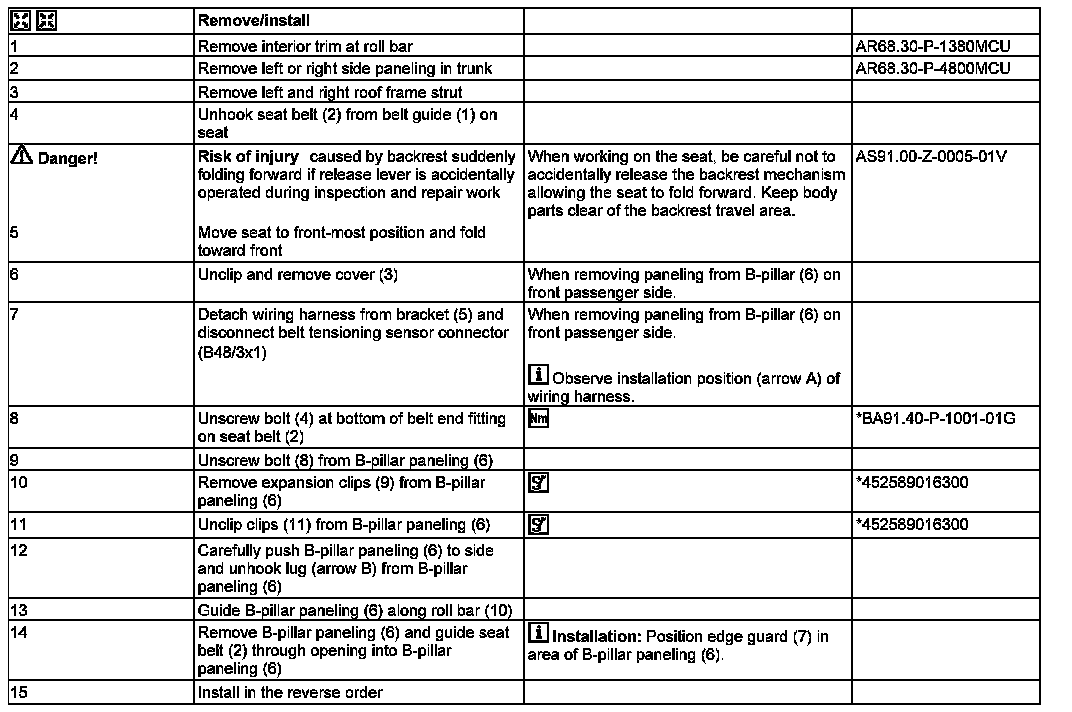

AR68.30-P-4700MCV Remove/Install Paneling on B-Pillar

AR68.30-P-4700MCV Remove/Install Paneling On B-pillar

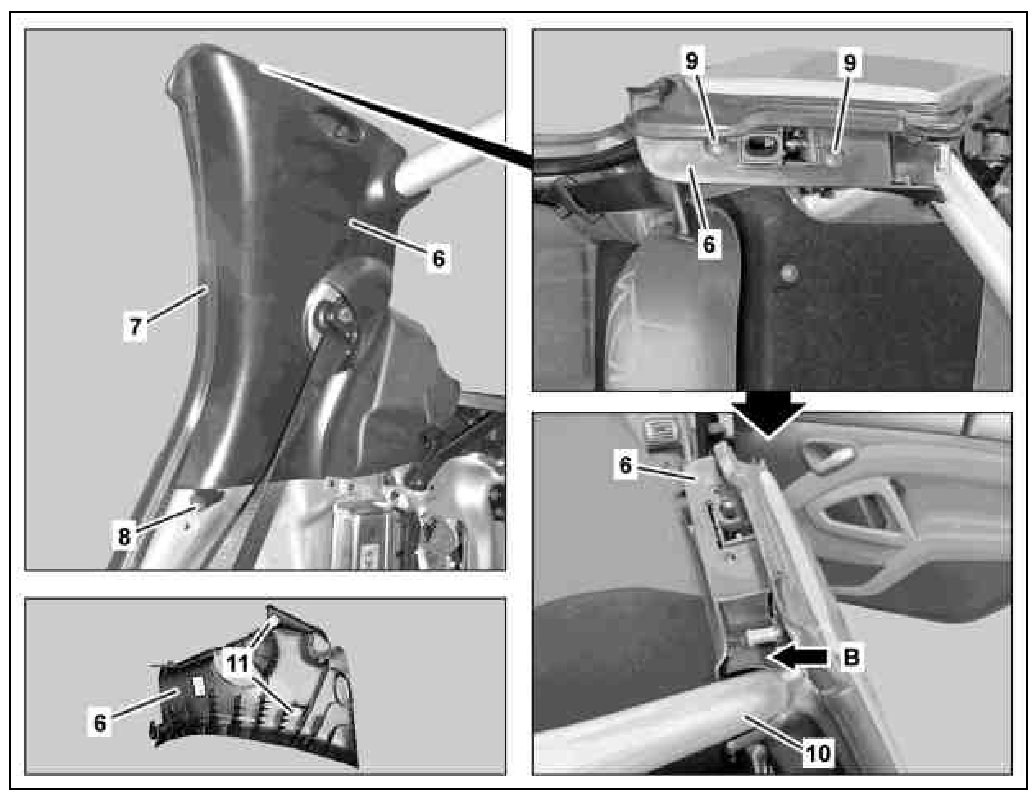

Shown on right side of vehicle







1 Seat belt guide
2 Seat belt
3 Cover (only on right side of vehicle)
4 Screw
5 Bracket (only on right side of vehicle)
B48/3x1 Belt tensioning sensor connector (only on right side of vehicle)

Shown on right side of vehicle







6 B-pillar paneling
7 Edge guard
8 Screw
9 Expansion clip
10 Rollover bar
11 Clip

















452 589 01 63 00, Snap-release tool
