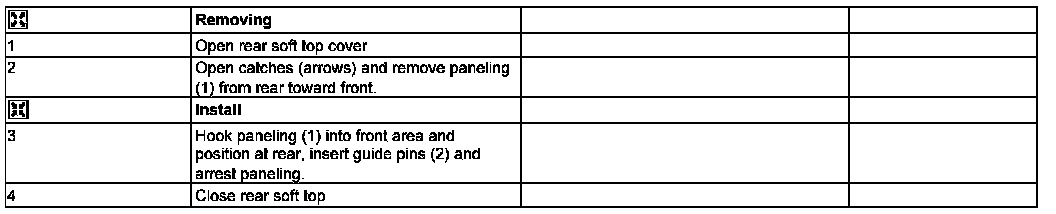

AR68.30-P-4505MCO Remove/install paneling on rear pillar
AR68.30-P-4505MCO Remove/install paneling on rear pillar
AR68.30-P-4505MCO Remove/Install Paneling On Rear Pillar

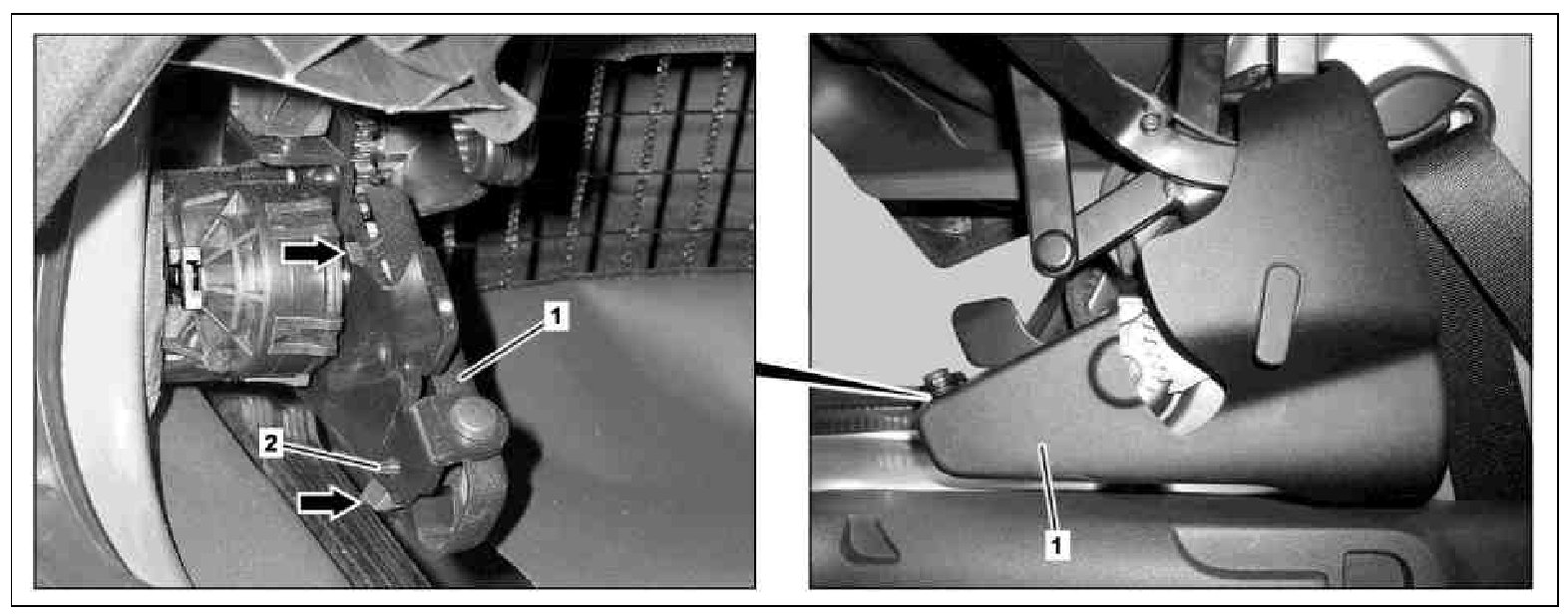

1
Trim
2
Guide pin
