Arm Rest: Service and Repair

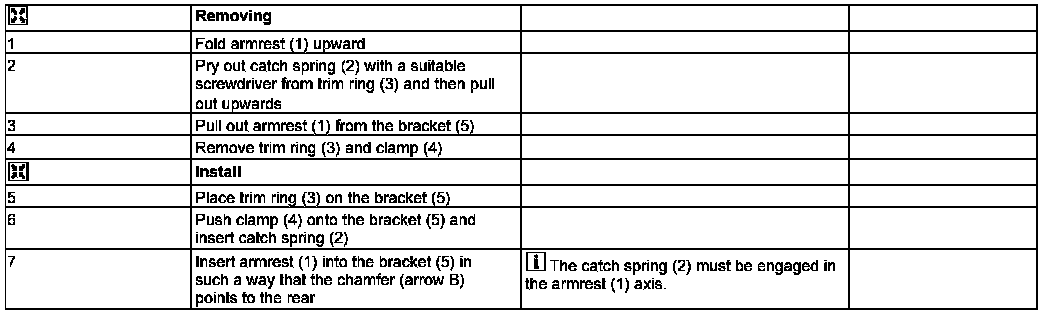

AR91.27-P-1000MCC Remove/Install Front Seat Center Armrest
- as of 31.8.10
- with CODE (I50) Armrest

- Retrofitted center armrest

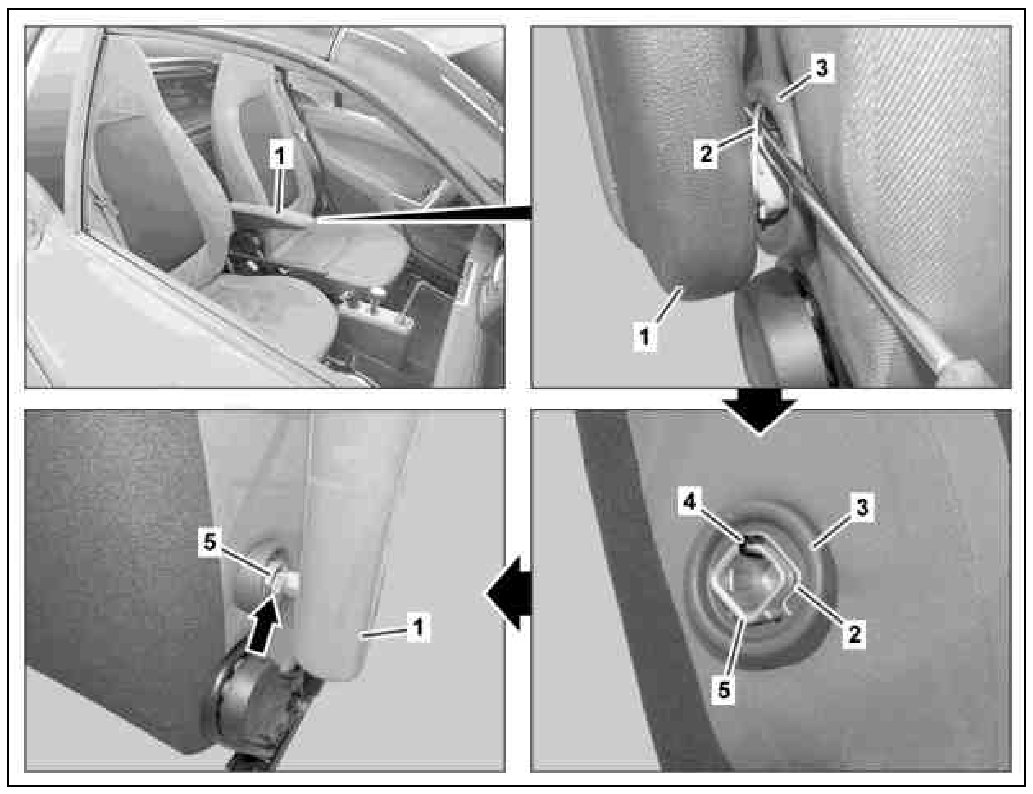

1 Armrest
2 Catch spring
3 Trim ring
4 Clamping bracket
5 Bracket
