AR61.10-P-5708-04MCD Install Tank Support

AR61.10-P-5708-04MCD Install Tank Support

Shown on model 451.3

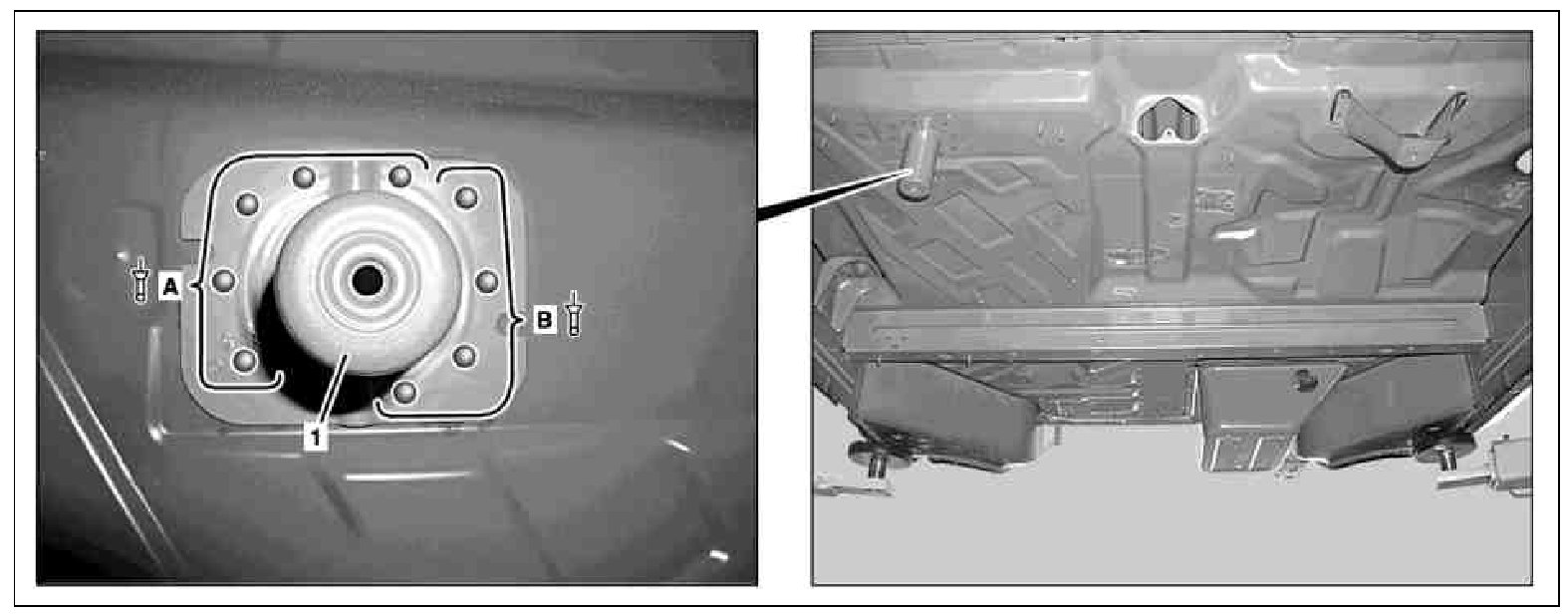

1 Fit left tank support (1) together with tank and fasten with mounting bolts.
2 Drill � 6.5 mm rivet holes from top (areas A and B).
3 Remove left tank support (1) and tank.
4 Deburr rivet holes on left tank support (1) and body on both sides.

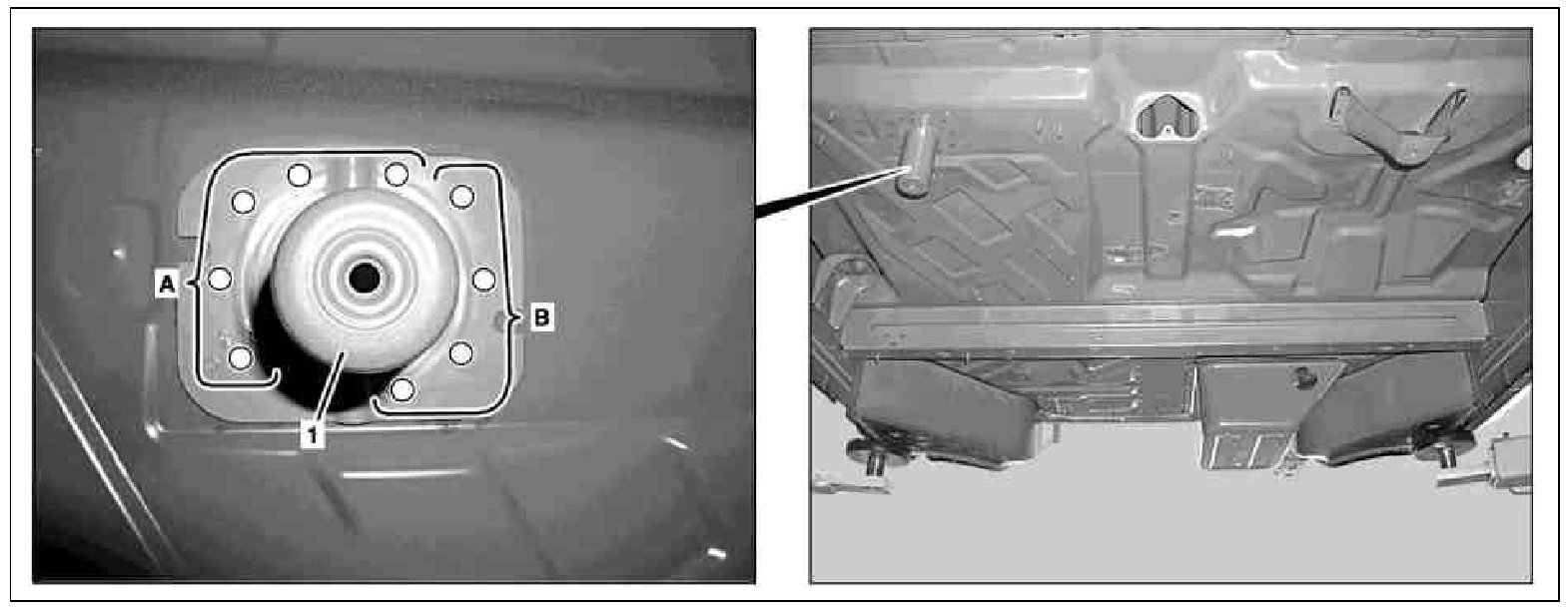

Shown on model 451.3







5 Fit left tank support (1) and fasten with manual temporary fasteners.
6 Rivet left tank support (1) from top with 6.4 x 14 Polygrip flat/ round head rivet (areas A and B).
