AR61.10-P-5708-03MCC Prepare Tank Support For Installation.

AR61.10-P-5708-03MCC Prepare Tank Support For Installation.

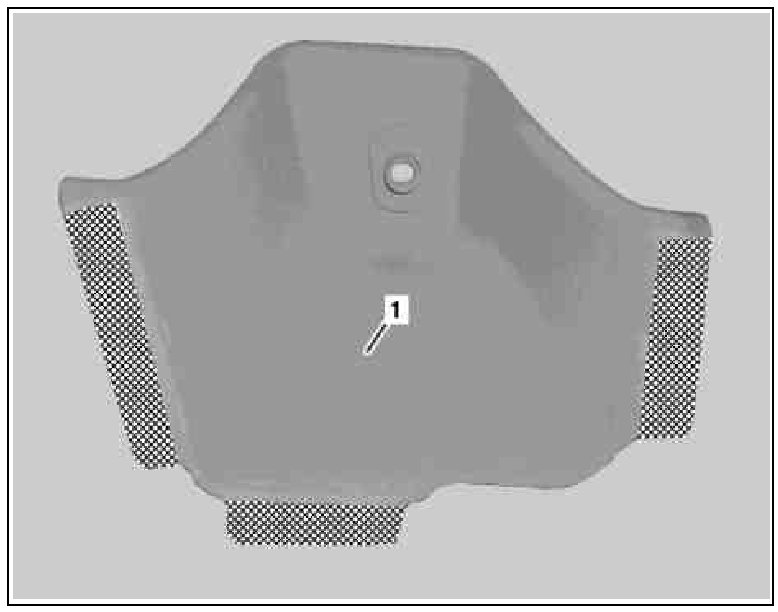

1 Grind right tank support (1) down to bare metal in cross-hatched areas.
Thoroughly clean all bonding surfaces and do not coat with zinc dust paint, otherwise adhesion of the 2-component adhesive may be adversely affected.
Observe pretreatment of bonding surfaces. Observe manufacturer's specifications of 2-component adhesive for drying and processing time.
