AR61.10-P-5708-02MCC Prepare Connecting Points For Tank Support on Body.

AR61.10-P-5708-02MCC Prepare Connecting Points For Tank Support On Body.

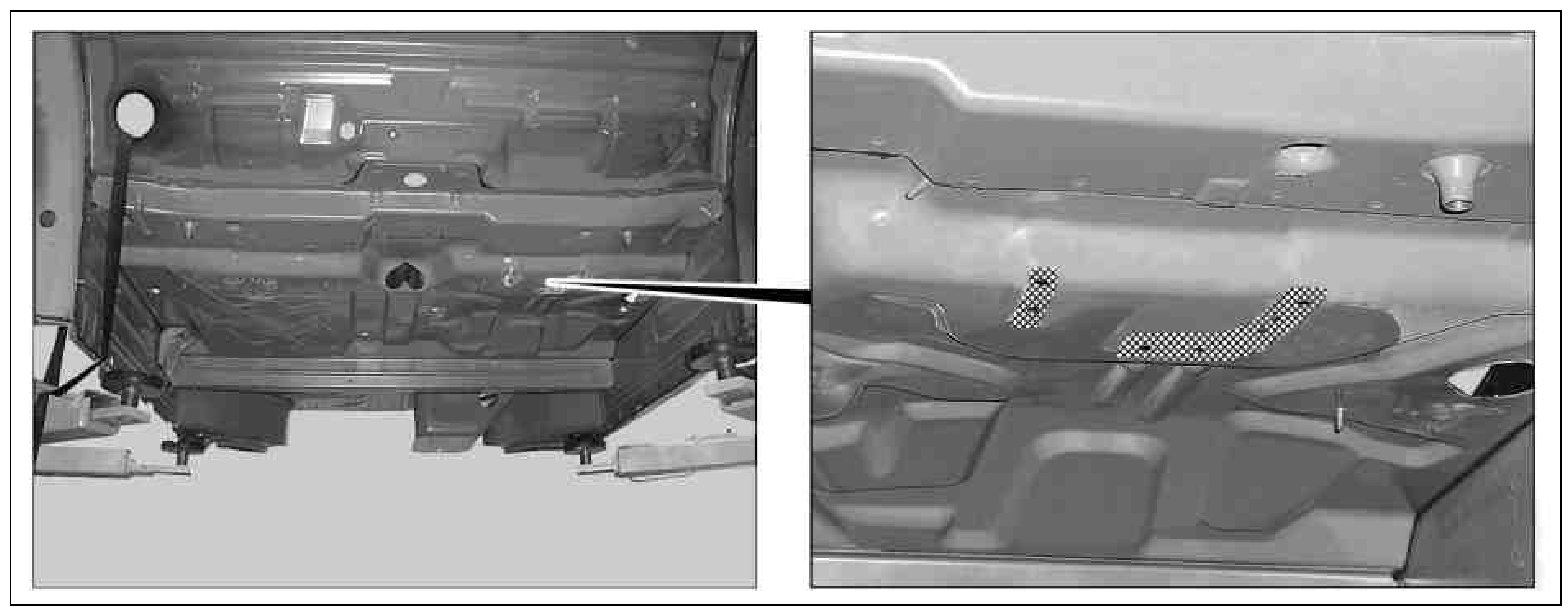

Shown on model 451.3







1 Grind mating surfaces down to bare metal in the crosshatched areas.
Thoroughly clean all bonding surfaces and do not coat with zinc dust paint, otherwise adhesion of the 2-component adhesive may be adversely affected.
Observe pretreatment of bonding surfaces. Observe manufacturer's specifications of 2-component adhesive for drying and processing time.
