AR61.10-P-5138MEV Remove/install diagonal strut
AR61.10-P-5138MEV Remove/install diagonal strut

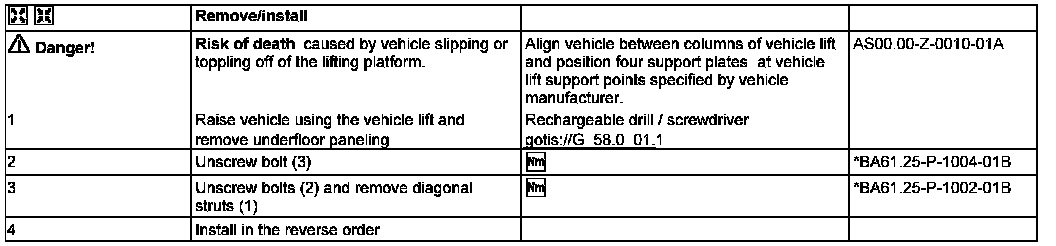

AR61.10-P-5138MEV Remove/Install Diagonal Strut

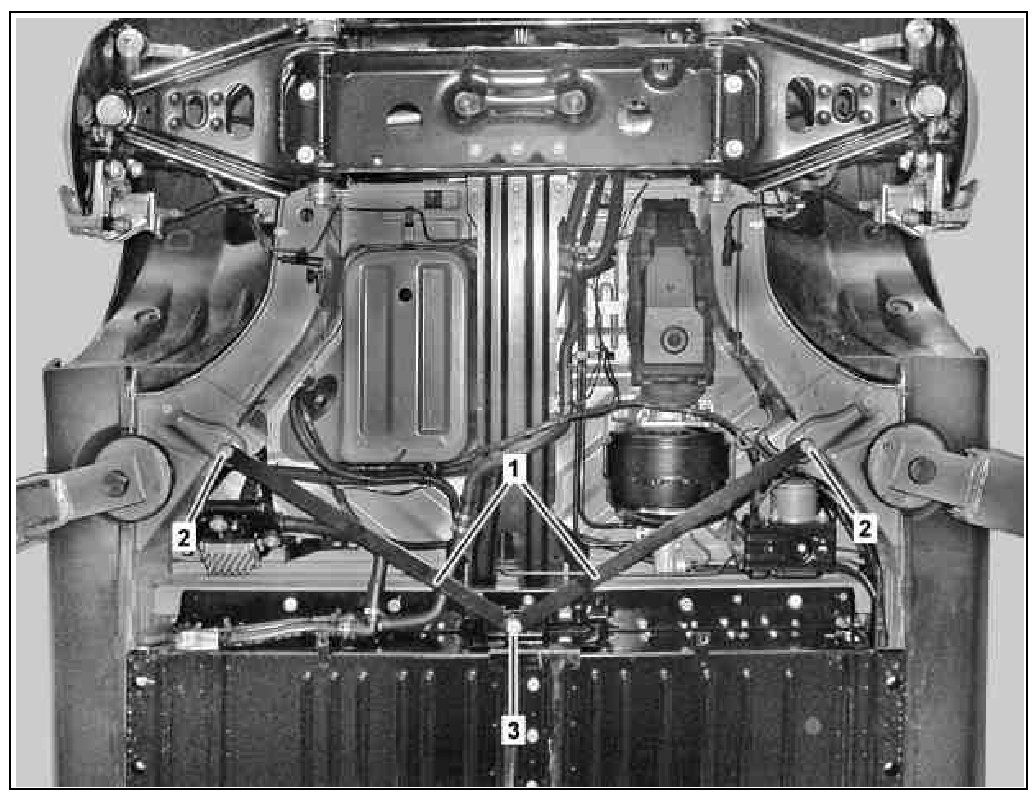

1
Diagonal struts
2
Screw
3
Screw
