Removal and Replacement

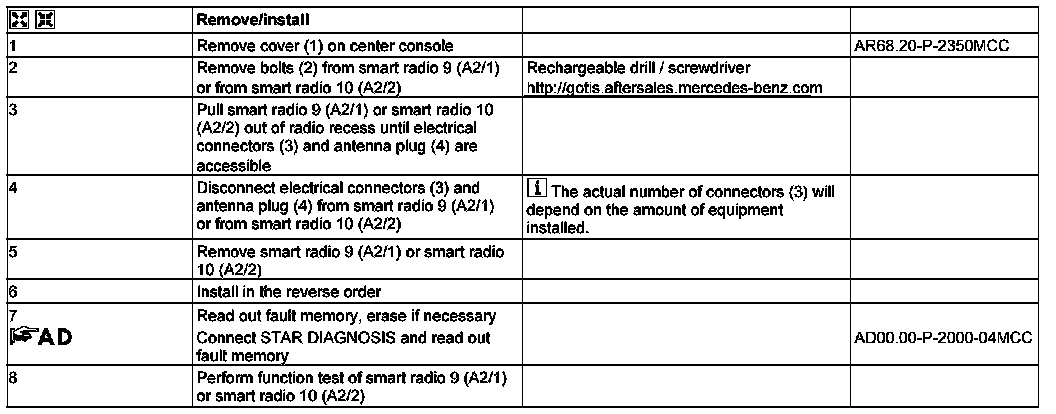

AR82.60-P-7502MCU Remove/Install Radio
- with CODE (C50) smart radio 10
- with CODE (C57) smart radio 9

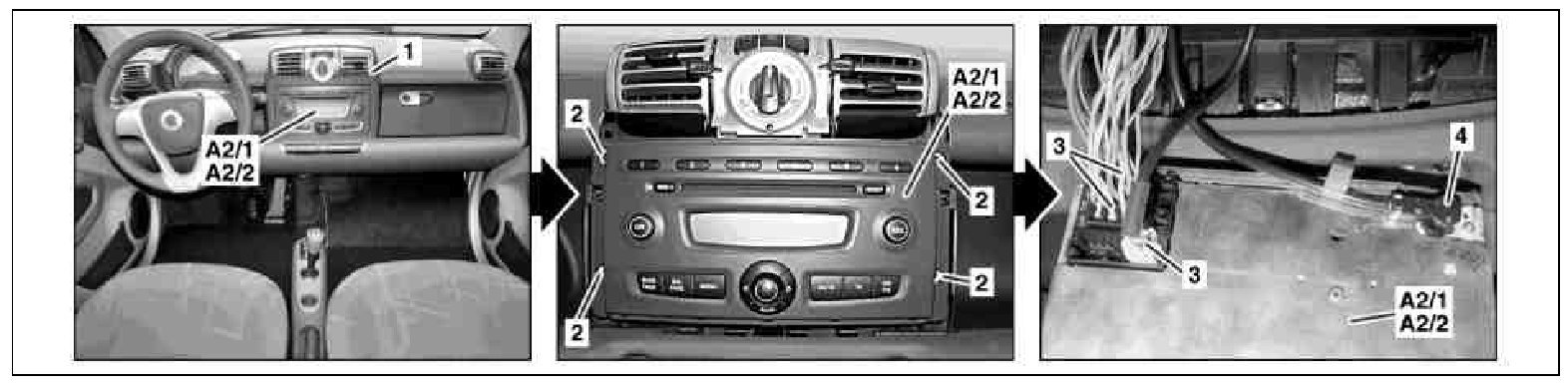

Shown on vehicle with code (C57) smart radio 9







1 Cover
2 Screw
3 Electrical connectors
4 Antenna plug
A2/1 smart radio 9 (with code (C57) smart radio 9)
A2/2 smart radio 10 (with code (C50) smart radio 10)
