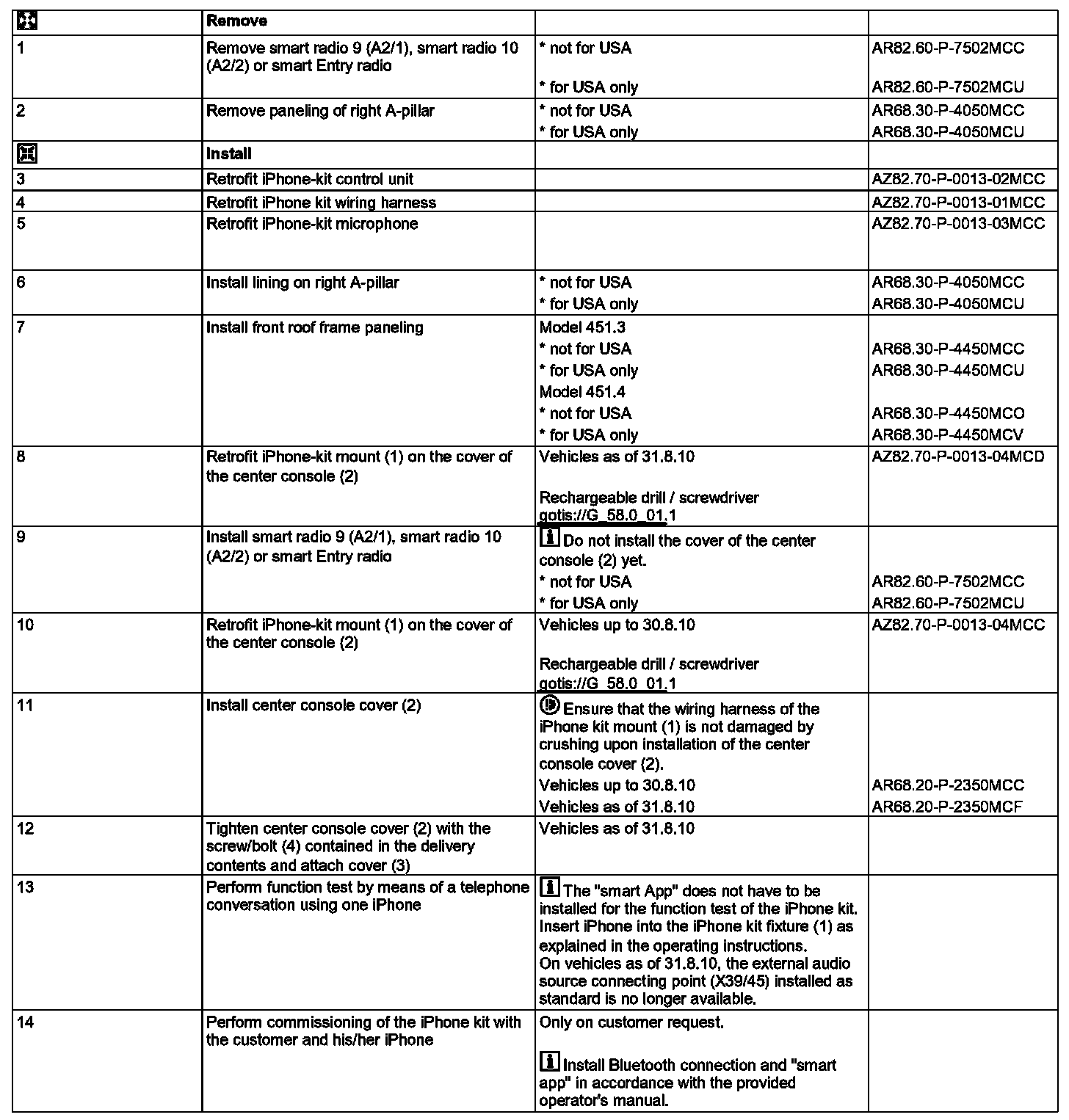

AZ82.70-P-0013MCC Retrofit iPhone Kit

AZ82.70-P-0013MCC Retrofit iPhone Kit
- MODEL 451.3 /4 (except 451.39 /49) up to 30.8.10
- with CODE (C50) smart radio 10
- with CODE (C57) smart radio 9
- MODEL 451.3 /4 (except 451.39 /49) as of 31.8.10
- with CODE (516) RADIO WITH USB INTERFACE

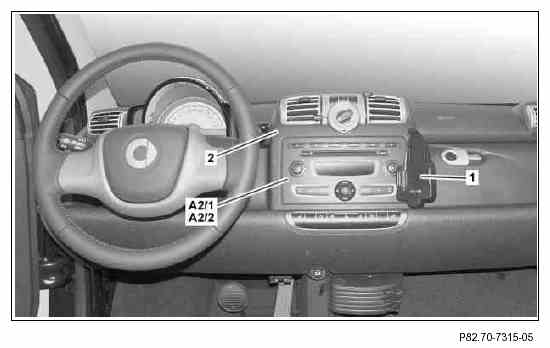

Shown on vehicle up to 30.8.10
1 iPhone kit mount
2 Center console cover
A2/1 smart radio 9
(with code (C57) smart radio 9)
A2/2 smart radio 10
(with code (C50) smart radio 10)

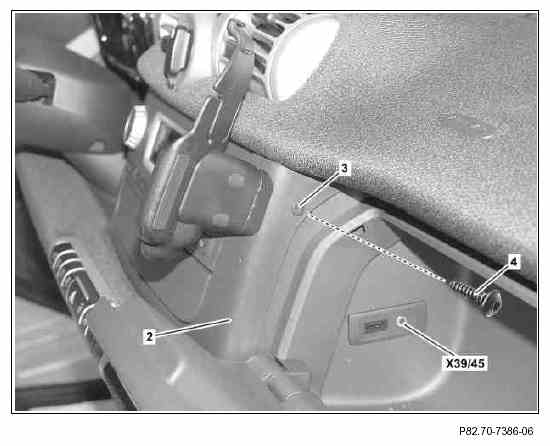

Vehicle as of 31.8.10
2 Center console cover
3 Cover
4 Screw
X39/45 External audio source separation point
