AZ82.70-P-0013-03MCC Retrofit iPhone-Kit Microphone

AZ82.70-P-0013-03MCC Retrofit iPhone-Kit Microphone

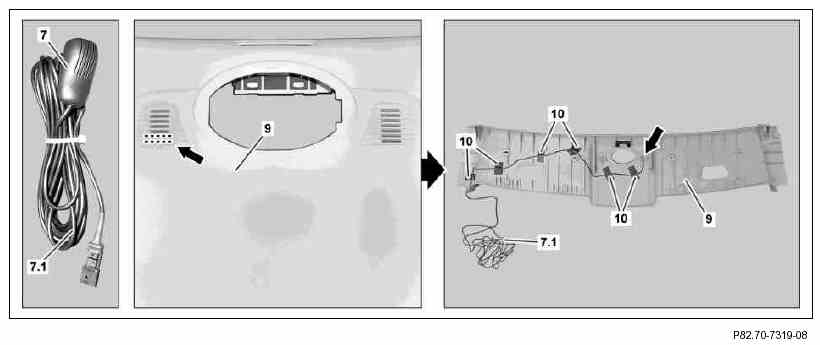

1. Carefully separate out the two front webs (arrow) on the grill of the front roof frame lining (9) on the driver-side using side cutting pliers.
2. Guide microphone wiring harness (7.1) through the opening made in the front roof frame lining (9).
3. Position microphone (7) above the opening made in the front roof frame lining (9) and route microphone wiring harness (7.1) on the front roof frame lining (9) and fix in position with fabric adhesive tape (10).

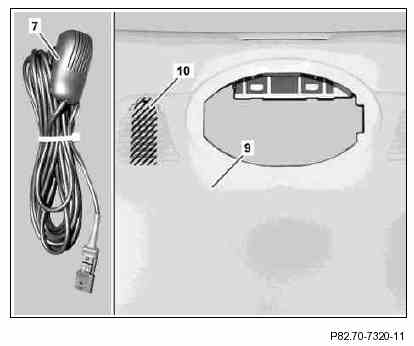

4. Screw down metal brackets contained in the scope of supply in the hatched area (10) on the front roof frame lining (9).
5. Bond microphone (7) onto the metal bracket.
The contact surfaces on the microphone (7) and on the metal bracket must be free of dust and grease otherwise paint adhesion problems can occur.







6. Put down the front roof frame mounting (9) in the vehicle.

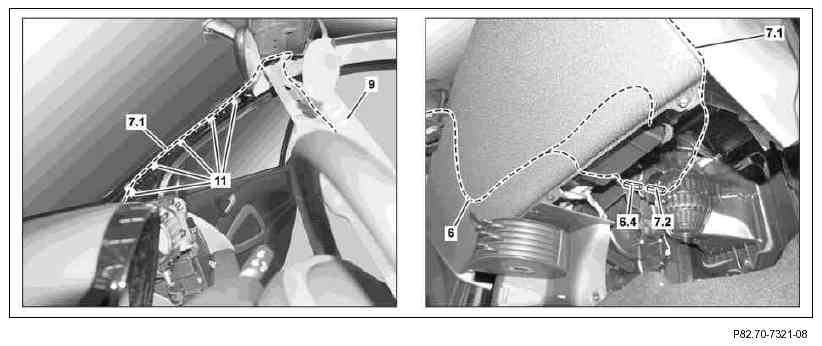

7. Route microphone wiring harness (7.1), as shown, along the A-pillar and fix in position with fabric adhesive tape (11).
Route microphone wiring harness (7.1) so that the installation of the right A-pillar lining is not obstructed.

8. Route microphone wiring harness (7.1) along the A-pillar under the instrument panel and fix in position with cable tires.
9. Connect black 2-pin connector (6.4) of iPhone-kit wiring harness (6) with the black 2-pin connector (7.2) of the microphone wiring harness (7.1)
10. Fix the microphone wiring harness (7.1) and iPhone-kit wiring harness (6) at suitable positions with cable ties
