Removal and Replacement

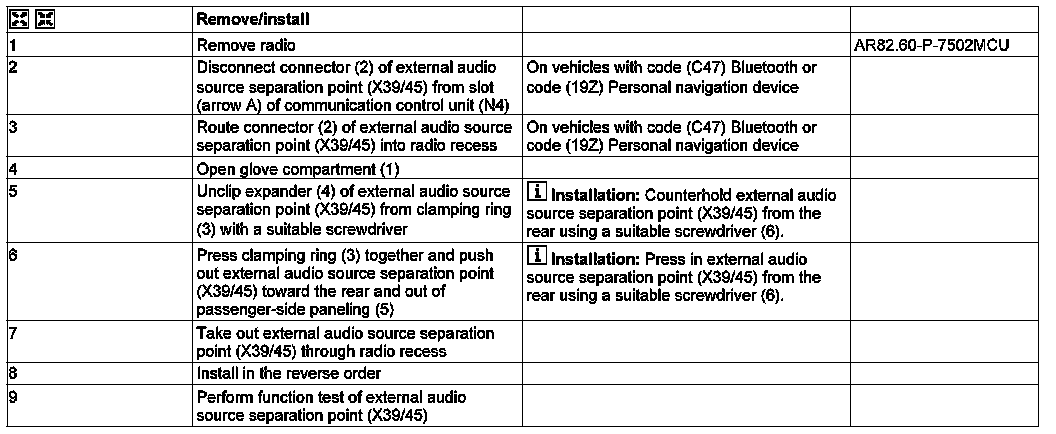

AR82.60-P-1026MCU Remove/Install AUX Jack
- with CODE (41Z) AUX jack

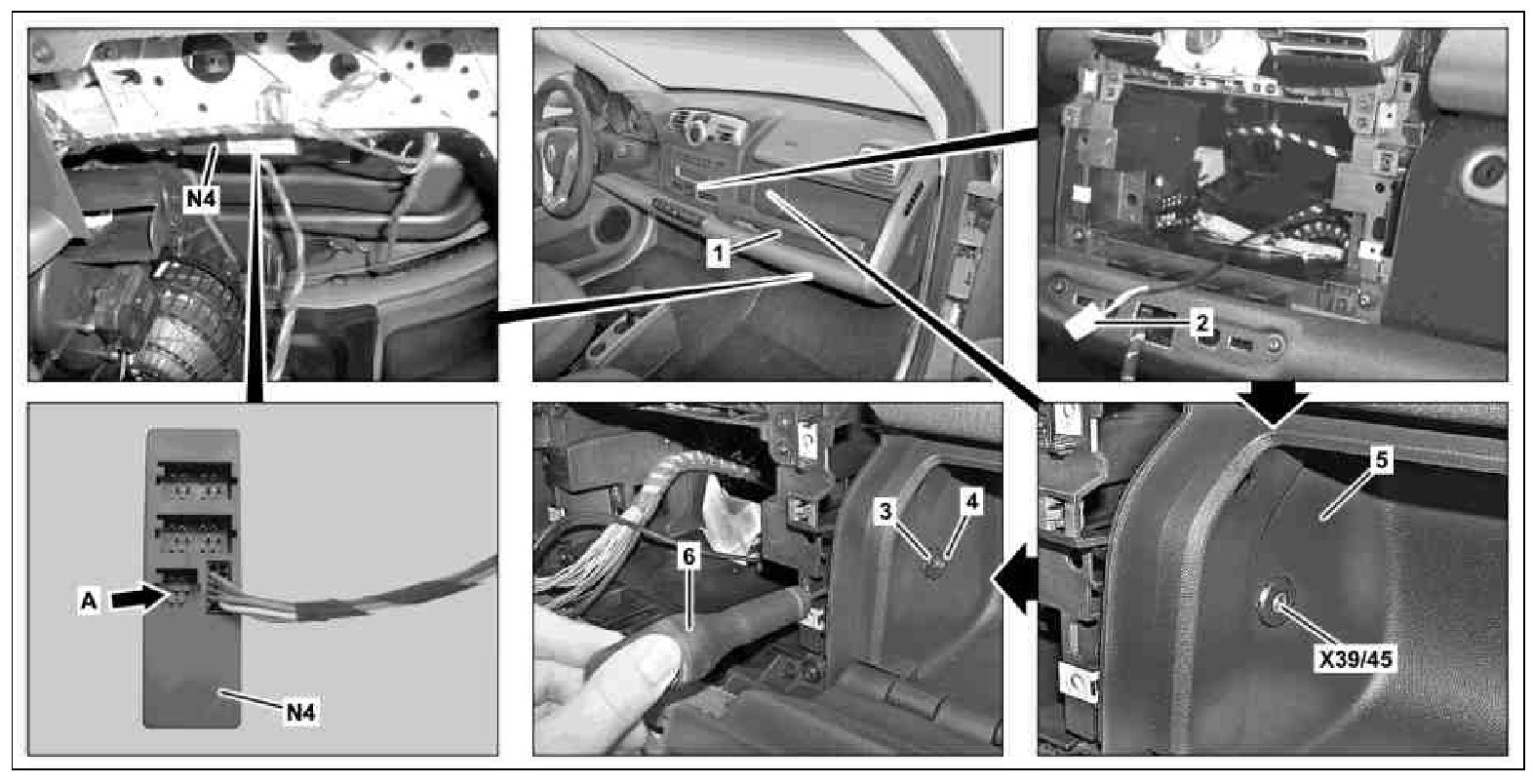

1 Glove compartment
2 Connector
3 Clamping ring
4 Expander
5 Passenger side paneling
6 Screwdriver
N4 Communication control unit (with code (C47) Bluetooth or code (19Z) Personal navigation device)
X39/45 External audio source separation point
