AZ82.60-P-0014MCC Retrofit ipod Interface

AZ82.60-P-0014MCC Retrofit iPod Interface
- up to 30.8.10 with CODE (C50) smart radio 10
- up to 30.8.10 with CODE (C57) smart radio 9
- as of 31.8.10 with CODE (516) RADIO WITH USB INTERFACE
- Telephone system/Bluetooth hands-free system with display retrofitted

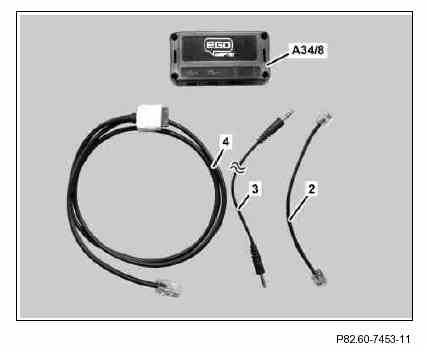

Package contents of iPod kit
2 Electrical line
3 Electrical line
4 Electrical wiring harness for iPod adapter A34/8 iPOD adapter

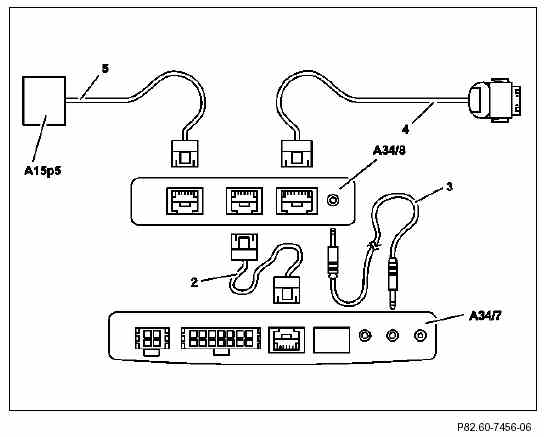

iPod kit connection diagram
2 Electrical line
3 Electrical line
4 Electrical wiring harness for iPod adapter
5 Electrical wiring harness for display (Bluetooth handsfree system)
A15p5 Display
A34/7 Bluetooth module
A34/8 iPOD adapter
