AZ82.60-P-0014MCC Retrofit iPod

AZ82.60-P-0014MCC Retrofit IPod
- with CODE (C50) smart radio 10
- Telephone system/Bluetooth hands-free system with display retrofitted
- with CODE (C57) smart radio 9
- Telephone system/Bluetooth hands-free system with display retrofitted

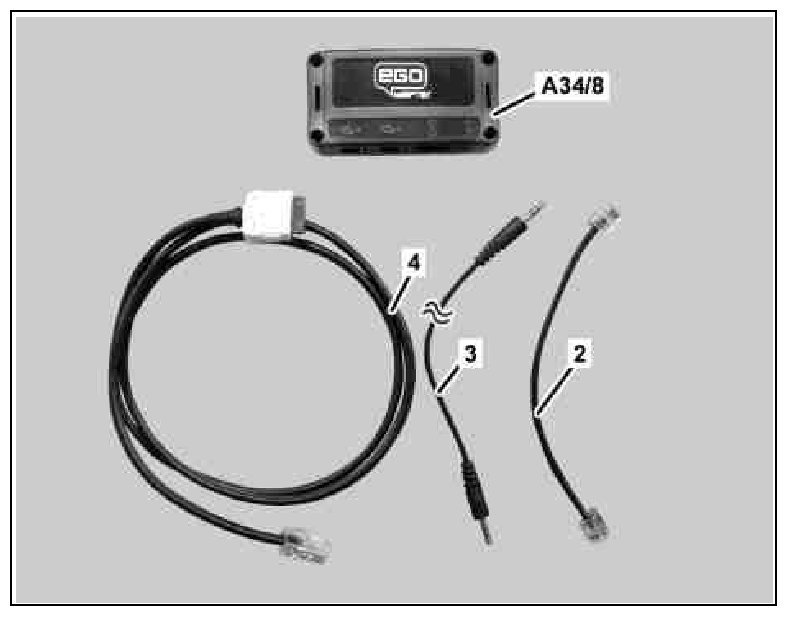

Package contents of iPod kit







2 Electrical line
3 Electrical line
4 Electrical wiring harness for iPod adapter
A34/8 iPod adapter

iPod kit connection diagram







2 Electrical line
3 Electrical line
4 Electrical wiring harness for iPod adapter
5 Electrical wiring harness for display (Bluetooth hands-free system)
A15p5 Display
A34/7 Bluetooth module
A34/8 iPod adapter
