AZ82.60-P-0001-01MCC Retrofit ipod Interface Wiring Harness

AZ82.60-P-0001-01MCC Retrofit IPod Interface Wiring Harness

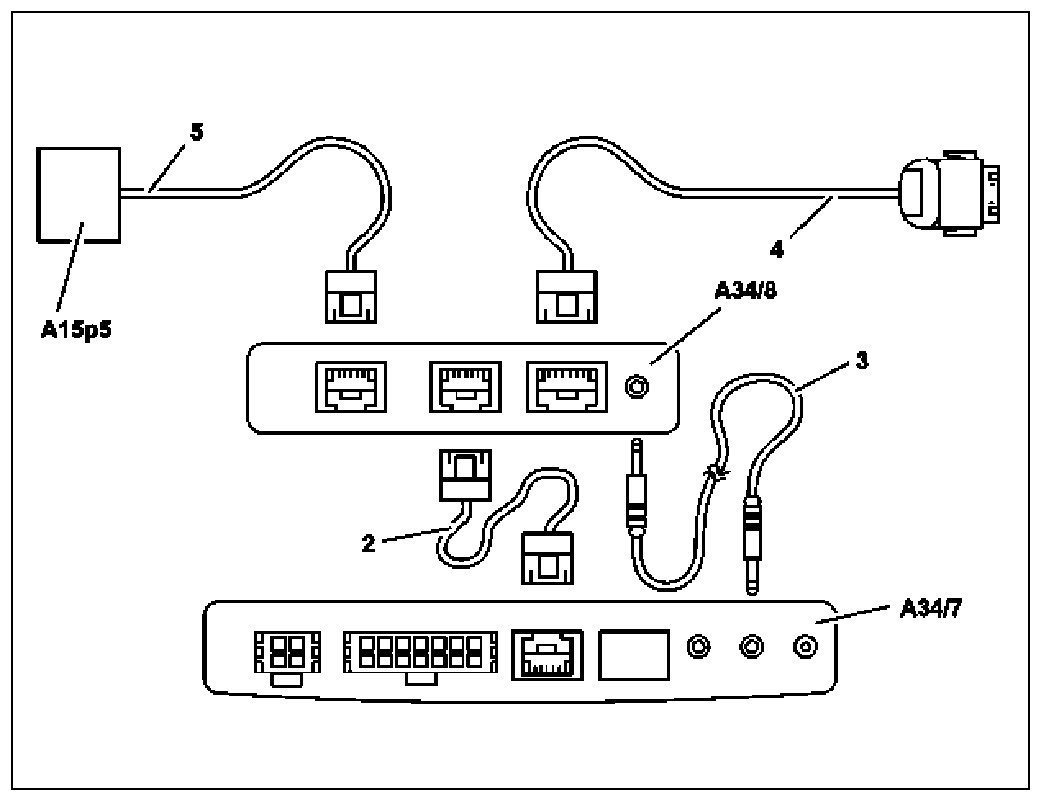

Connection diagram







2 Electrical line
3 Electrical line
4 Electrical wiring harness for iPod adapter
5 Electrical wiring harness for display (Bluetooth hands-free system)
A15p5 Display
A34/7 Bluetooth module
A34/8 iPod adapter

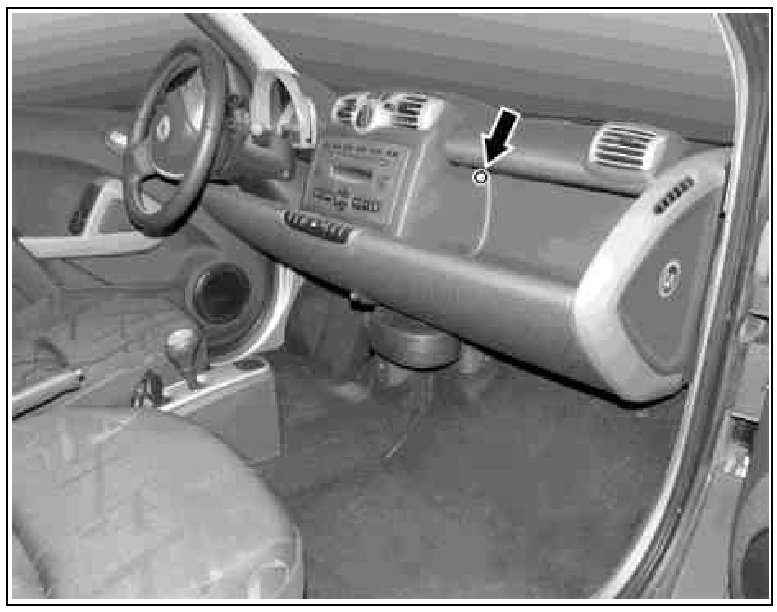

1 Drill hole with diameter of 9 mm, as shown, at instrument panel (arrow).
Cordless drill/driver
gotis://G_58.0_01.1
Ensure that the components behind this are not damaged as otherwise these must be replaced.

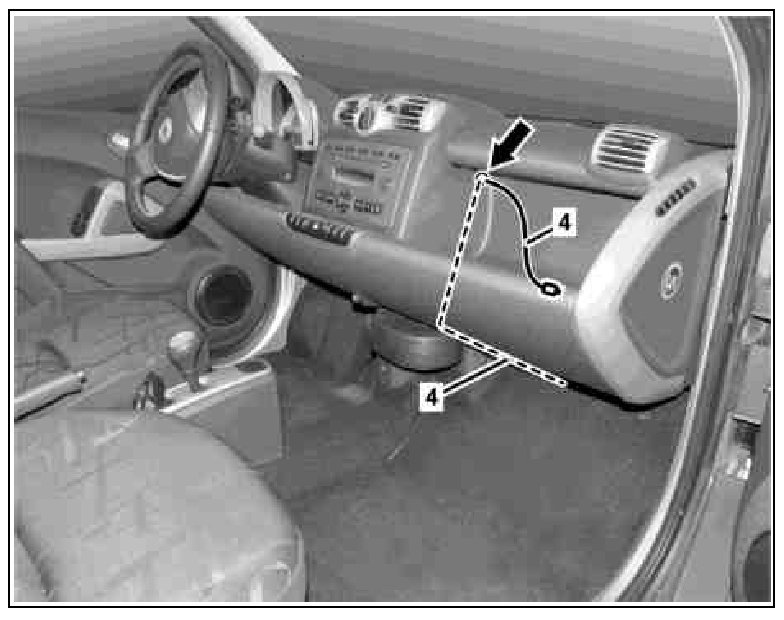

2 Lead electrical wiring harness for iPod adapter (4) through the hole (arrow) and route in the front passenger footwell as shown.
3 Fix electrical wiring harness for iPod adapter (4) in area of instrument panel and in area of front passenger footwell with cable ties and felt tape.







4 Wrap iPod adapter (A34/8) with felt tape included in the installation kit.
Ensure that all connections to iPod adapter (A34/8) remain accessible.
5 Detach Bluetooth module (A34/7) at crossmember below instrument panel and place in front passenger footwell with connected electrical lines.
6 Connect electrical wiring harness for iPod adapter (4) to iPod adapter (A34/8) as shown.
7 Unplug electrical wiring harness for display (5) at Bluetooth module (A34/7) and connect to iPod adapter (A34/8) as shown.
Electrical wiring harness for Bluetooth microphone (1) and electrical wiring harness for Bluetooth module (6) remain at Bluetooth module (A34/7) and are not plugged in somewhere else.

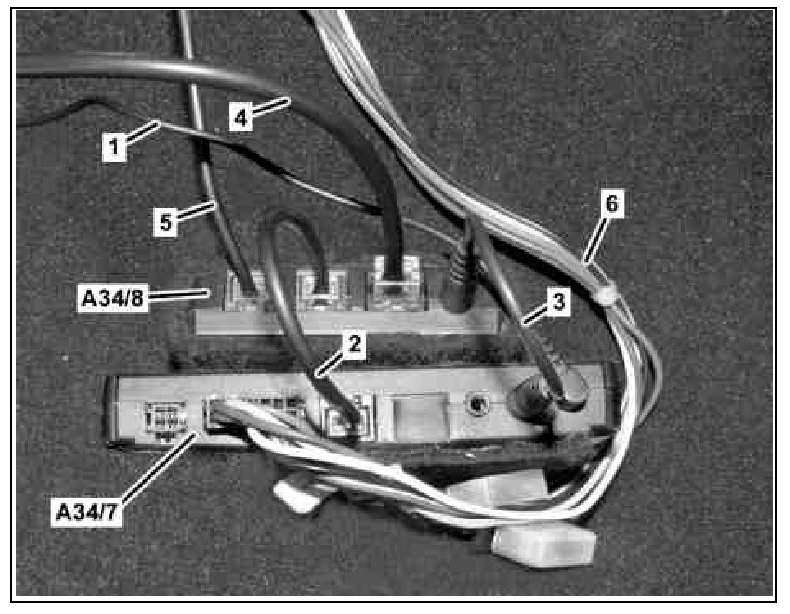

8 Connect electrical lines (2, 3) to Bluetooth module (A34/7) and iPod adapter (A34/8) as shown.
The slot next to the electrical wiring harness for Bluetooth microphone (1) is to be used for the electrical line (3).

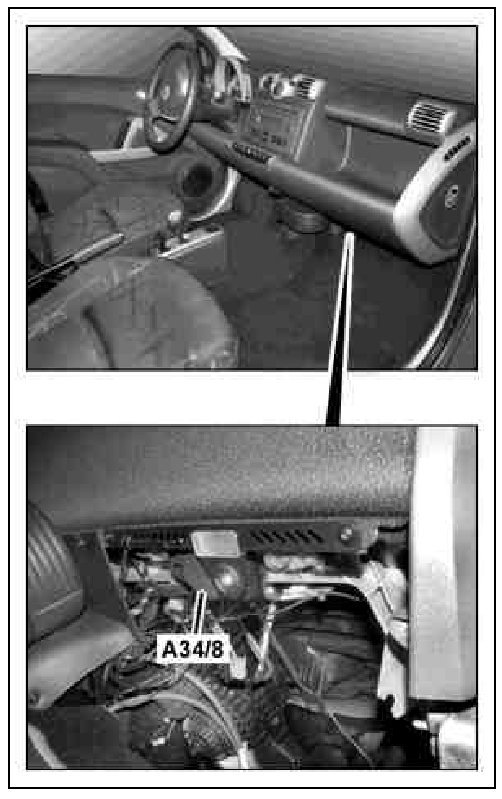

9 Fasten iPod adapter (A34/8) together with previously removed Bluetooth module in front passenger footwell at crossmember below instrument panel with cable ties as shown.
Ensure that the connected electrical wiring harnesses are not damaged by chafing, pinching or crushing as otherwise these must be replaced.
