AZ82.70-P-0010MCU Retrofit Telephone Console

AZ82.70-P-0010MCU Retrofit Telephone Console

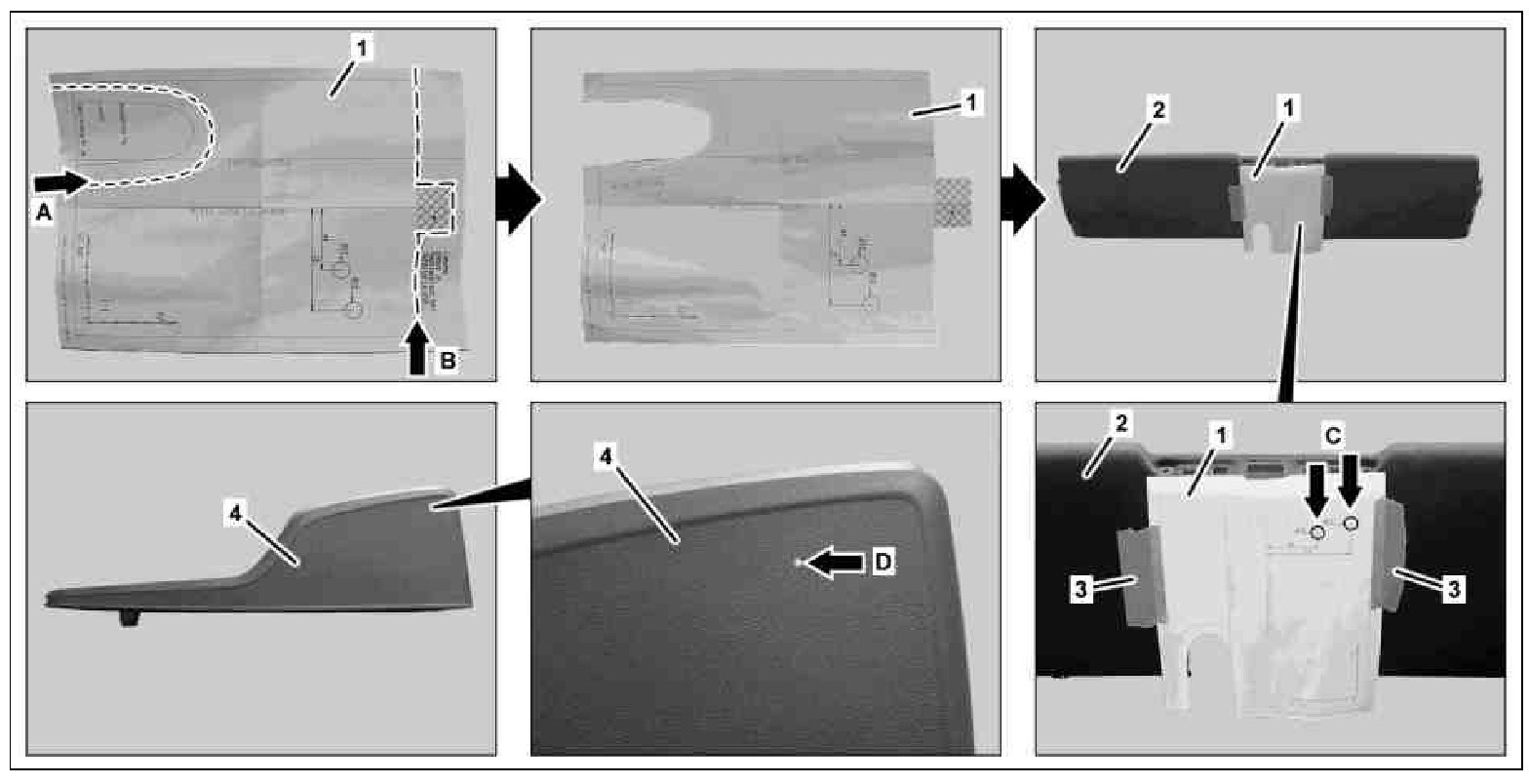

1 Template
2 Bottom section of instrument panel
3 Adhesive tape
4 Center console

Shown on model 451.3

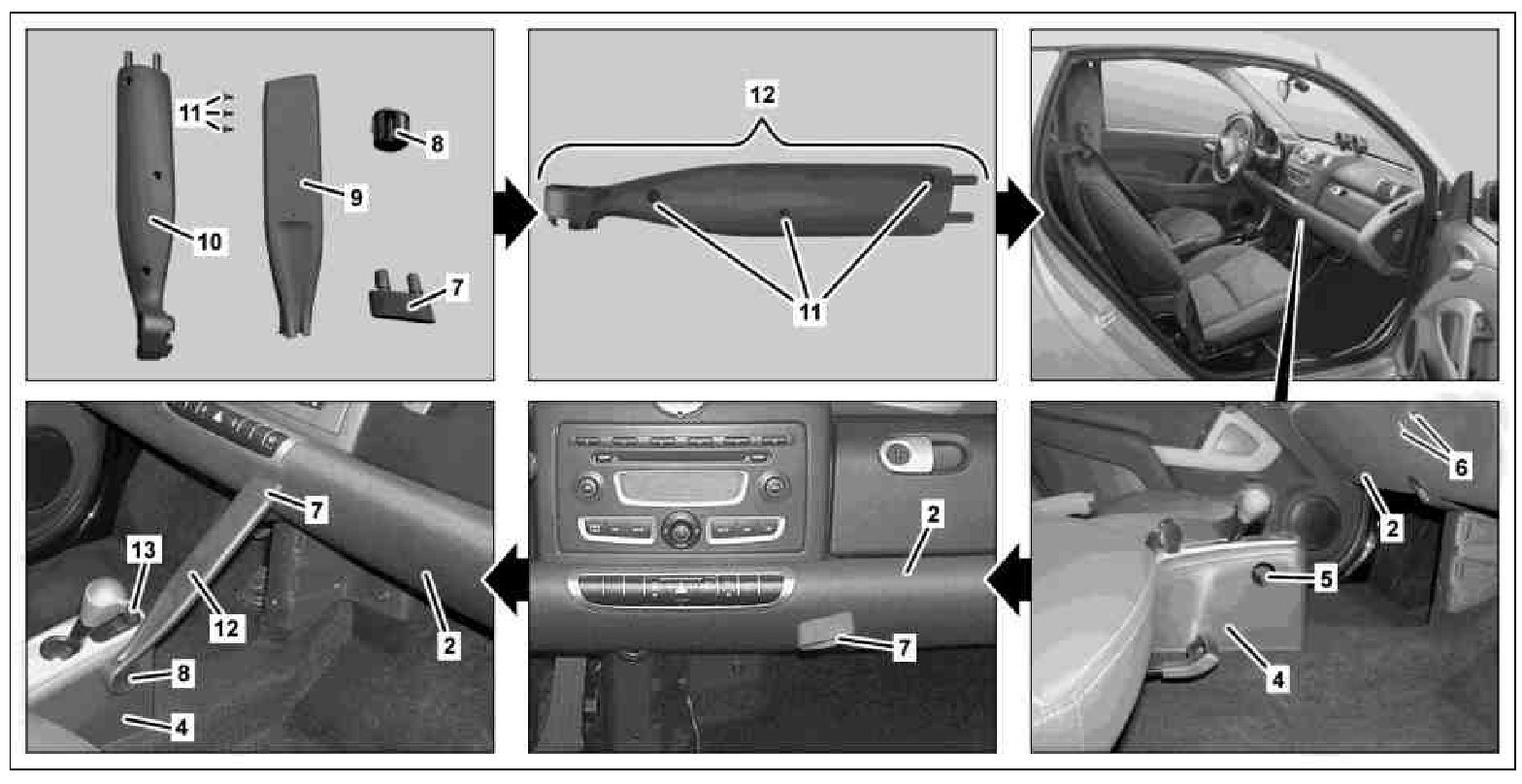

2 Bottom section of instrument panel
4 Center console
5 Bore
6 Holes
7 Rubber guide
8 Cover
9 Console top section
10 Console bottom section
11 Bolts
12 Telephone console
13 Coin holder (with model 451.3)












450 589 00 28 00, Graduated drill
