AZ82.70-P-0005MCD Retrofit Handsfree Conversation Equipment

AZ82.70-P-0005MCD Retrofit Handsfree Conversation Equipment
- with CODE (C50) smart radio 10
- Installation of a telephone system/Bluetooth hands-free system with display
- with CODE (C57) smart radio 9
- Installation of a telephone system/Bluetooth hands-free system with display

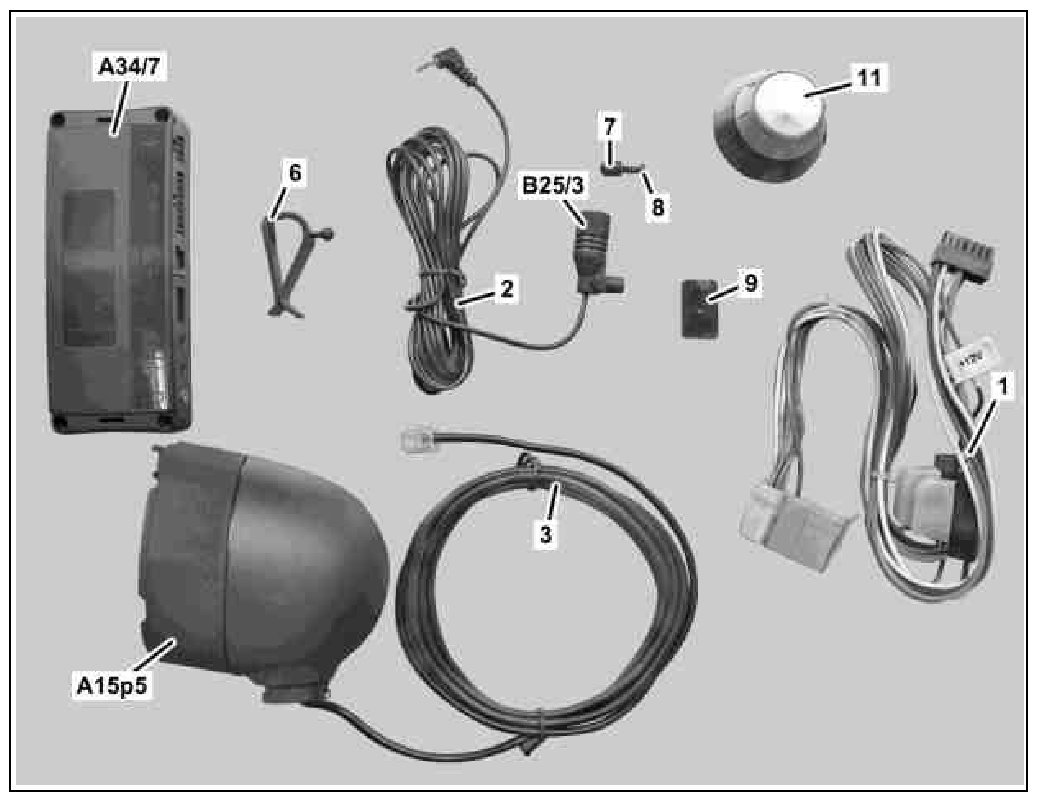

Package contents of hands-free system

1 Electrical wiring harness for Bluetooth module
2 Electrical wiring harness for Bluetooth microphone
3 Electrical wiring harness for display
6 Bracket (clampable)
7 Bracket (screwable)
8 Screw
9 Bracket (self-adhesive and screwable)
11 Push button for central operation
A15p5 Display
A34/7 Bluetooth module
B25/3 Bluetooth microphone

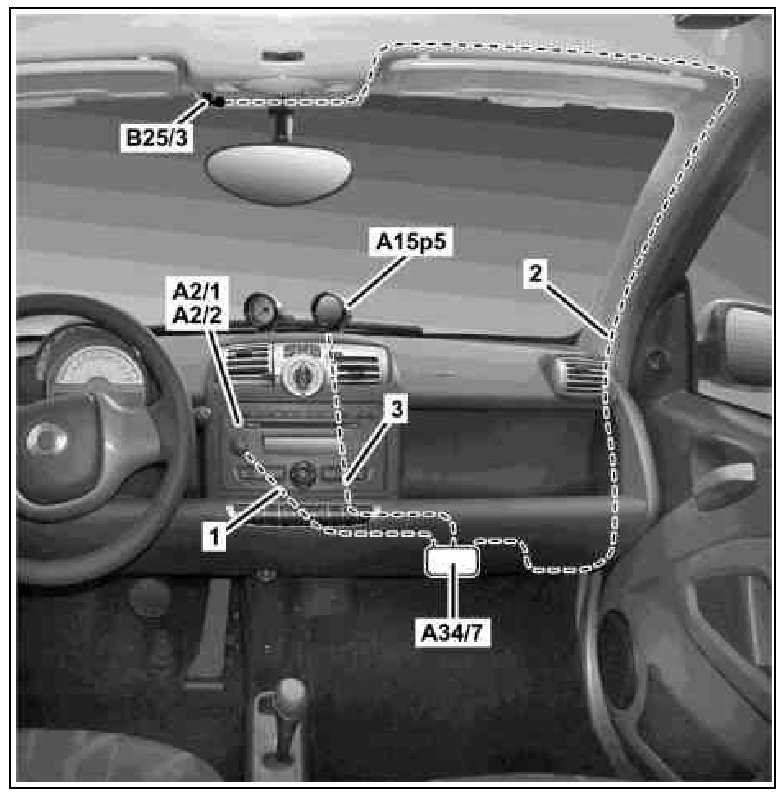

Routing diagram on vehicles without code (41Z) AUX jack, without code (C15) Navigation unit (DFO/FFO), without code (C60) Portable smart navigation system and without code (C54) Sound system 2

1 Electrical wiring harness for Bluetooth module
2 Electrical wiring harness for Bluetooth microphone
3 Electrical wiring harness for display
A15p5 Display
A2/1 smart radio 9
A2/2 smart radio 10
A34/7 Bluetooth module
B25/3 Bluetooth microphone

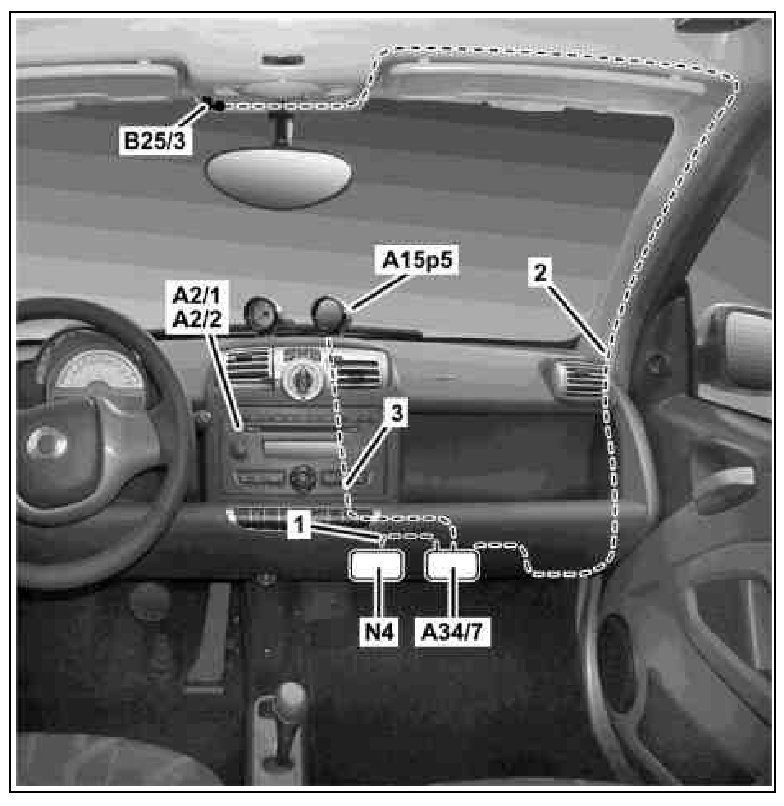

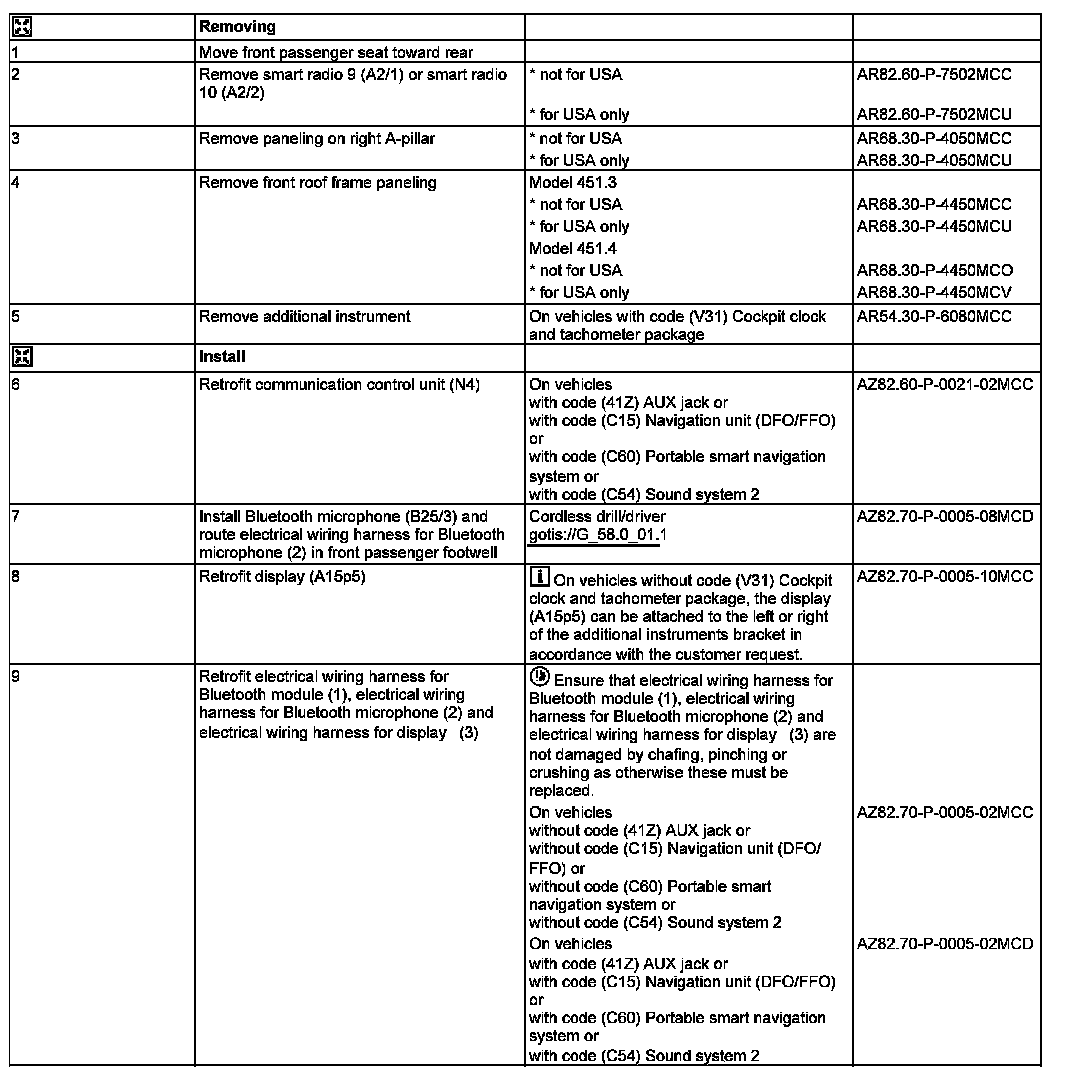

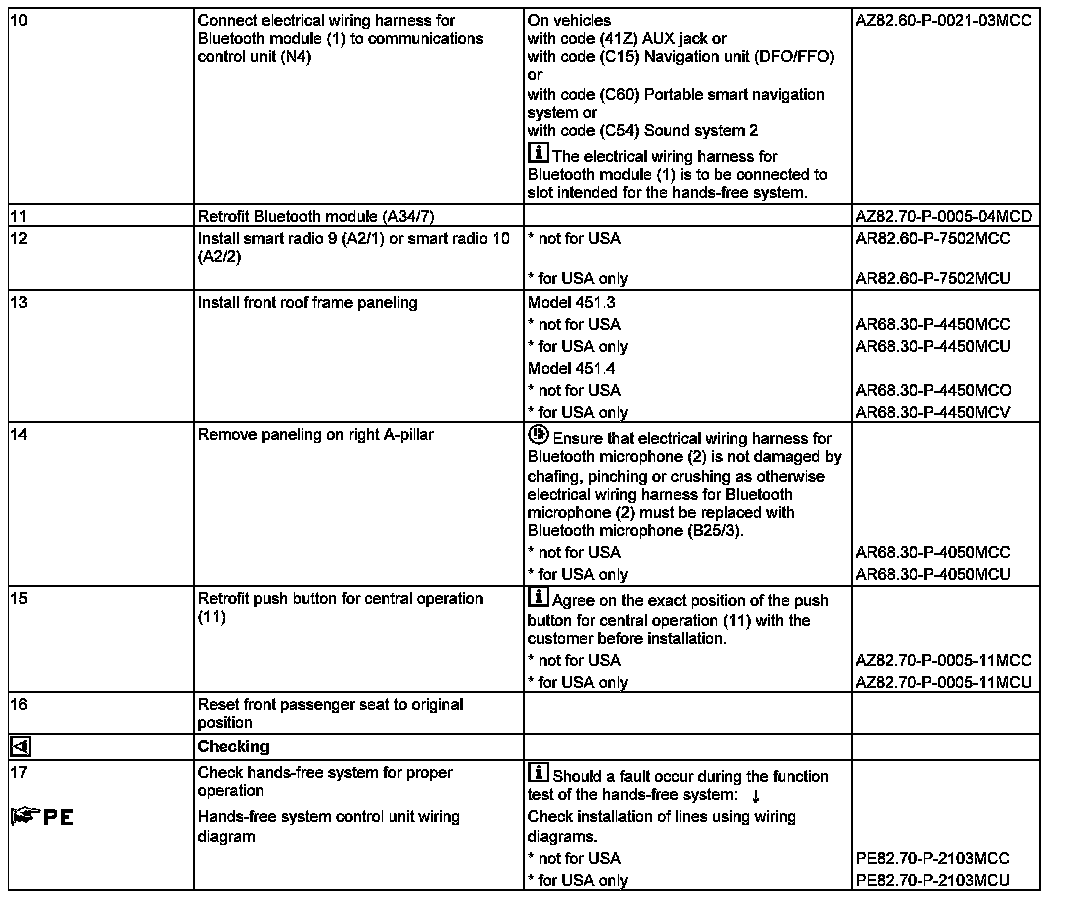

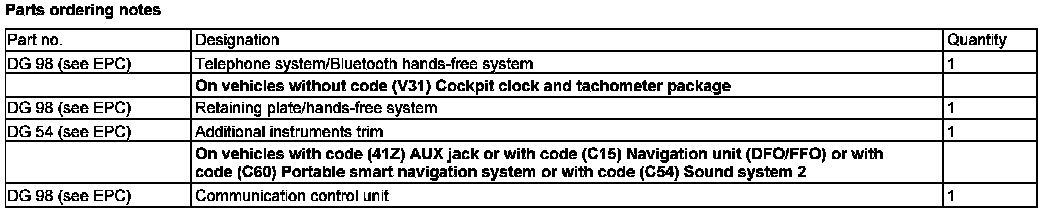

Routing diagram on vehicles with code (41Z) AUX jack or with code C15) Navigation unit (DFO/FFO) or with code (C60) Portable smart navigation system or with code C54) Sound system 2
