Alarm System Transponder: Service and Repair

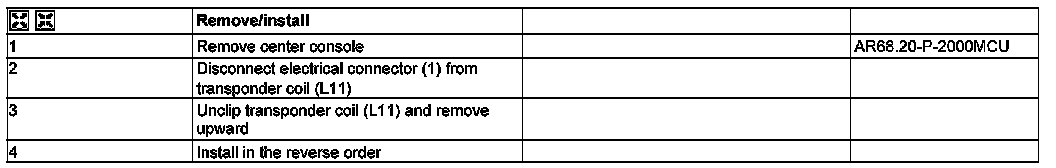

AR80.35-P-4515MCU Remove/Install Transponder Coil

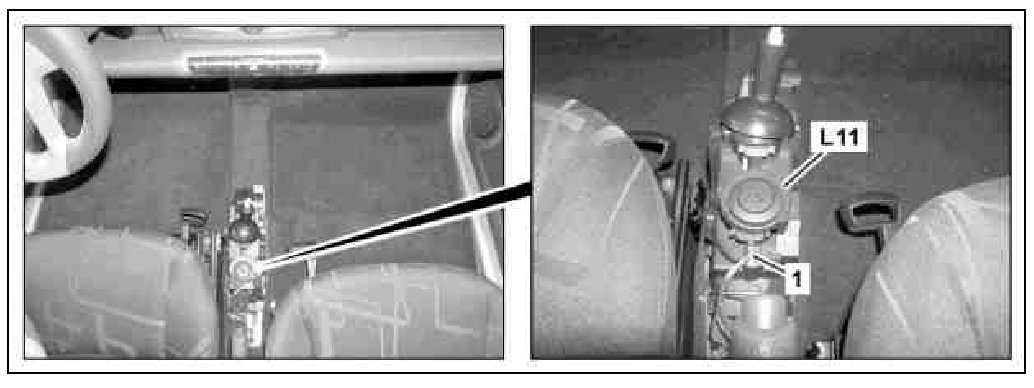

1 Electrical connector
L11 Transponder coil
