AR77.33-P-2020MCO Remove/install centering aid
AR77.33-P-2020MCO Remove/install centering aid

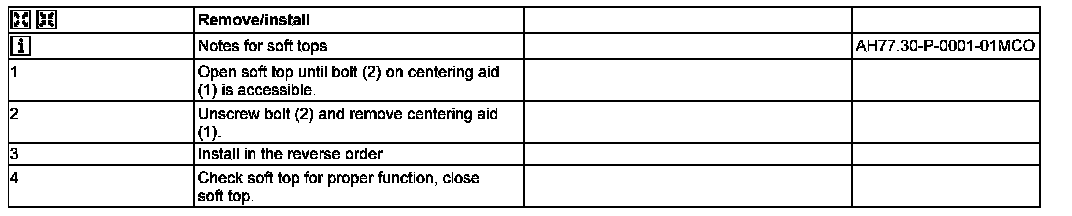

AR77.33-P-2020MCO Remove/Install Centering Aid

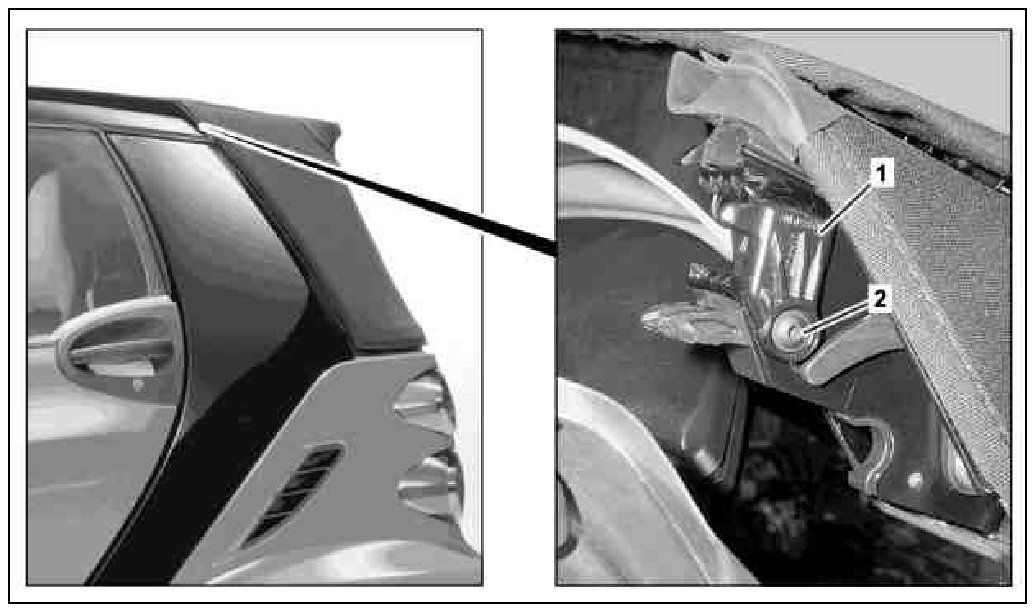

1
Centering aid
2
Bolt
