Drive Belt Tensioner: Service and Repair

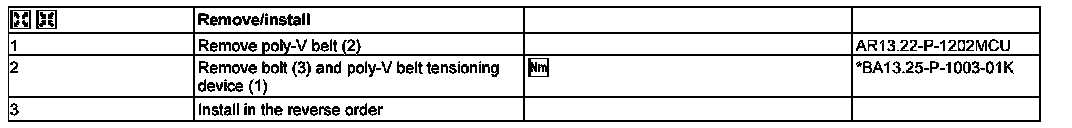

AR13.25-P-3200MCU Remove/Install Poly-V Belt Tensioning Device

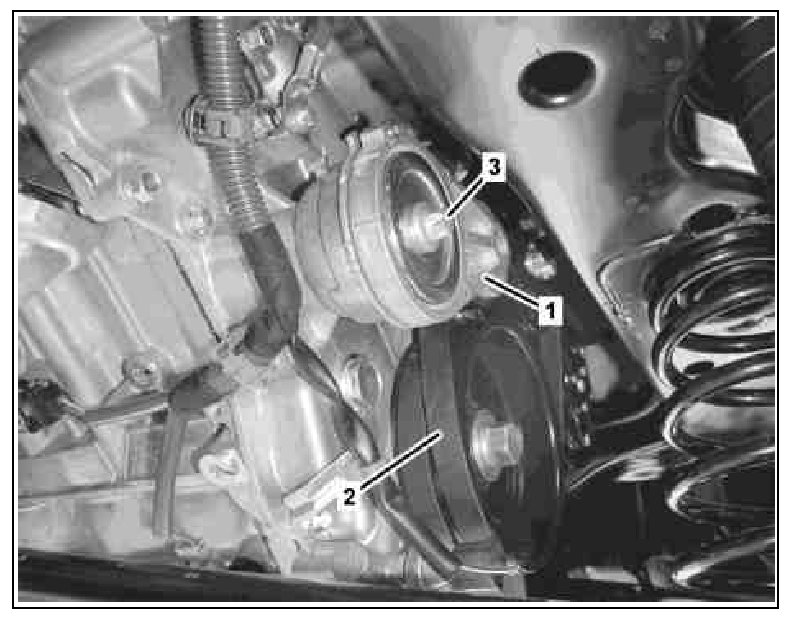

1 Poly-V belt tensioning device
2 Poly-V-belt
3 Screw
