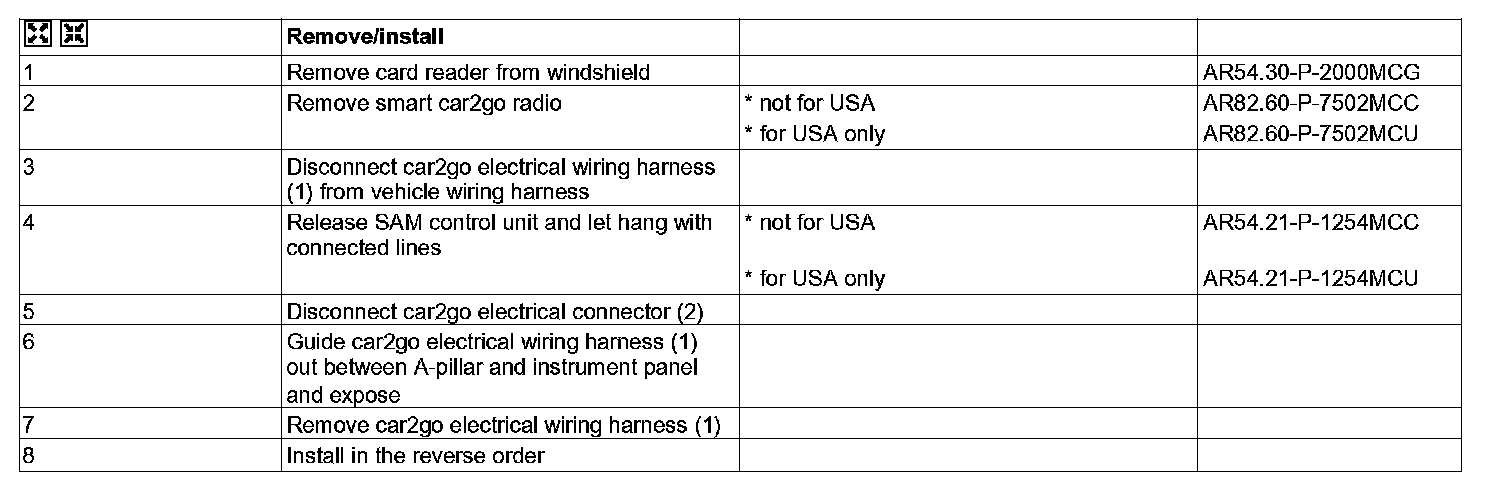

AR54.18-P-0200MCG Remove/Install CAR2GO Wiring Harness




AR54.18-P-0200MCG Remove/install Car2go Wiring Harness
- MODEL 451.3 with CODE (P02) car2go
- with instrument panel up to production date 30.8.10

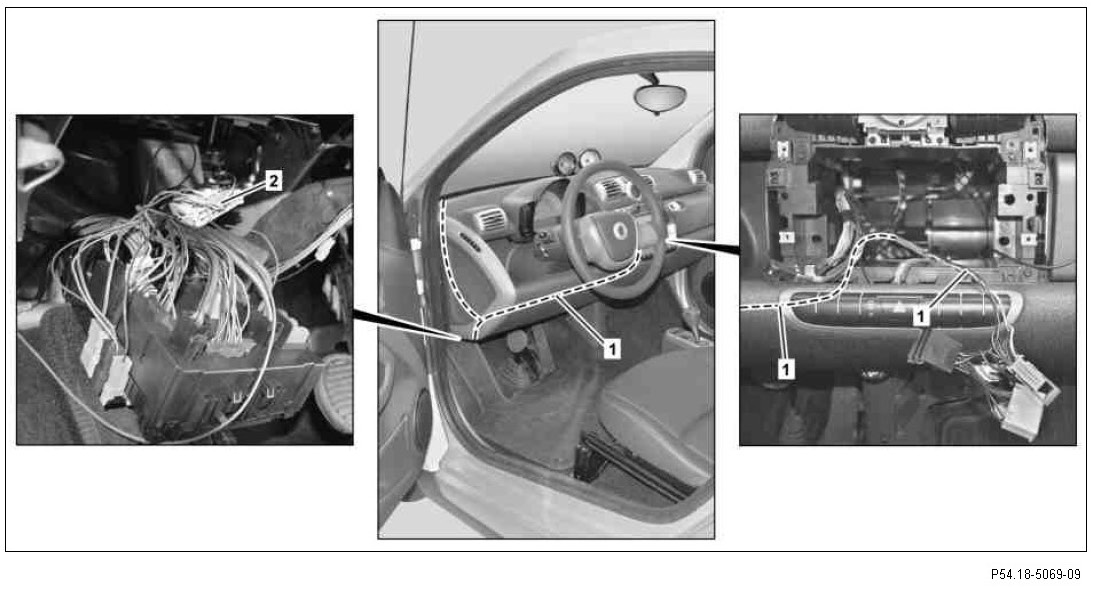

1 car2go electrical wiring harness
2 car2go electrical connector
