Campaign - Replace 42Ah Battery With 61Ah Battery

*Service Campaign 2009020013*

Date *Revised August 2011*
March 10, 2009

Group
82 Electrical

Number
C0209001

Model
2008-2009 fortwo

Updated information is noted by asterisks and yellow shading

Subject
Replace 42Ah Battery with 61Ah Battery

VEHICLES AFFECTED:

VIN specific - Check "Vehicle Master Inquiry" to determine service measure applicability. This procedure only applies to vehicles that have a 42Ah battery aild equipped with P52 - Comfort Package and / or V01 - Anti Theft Alarm.

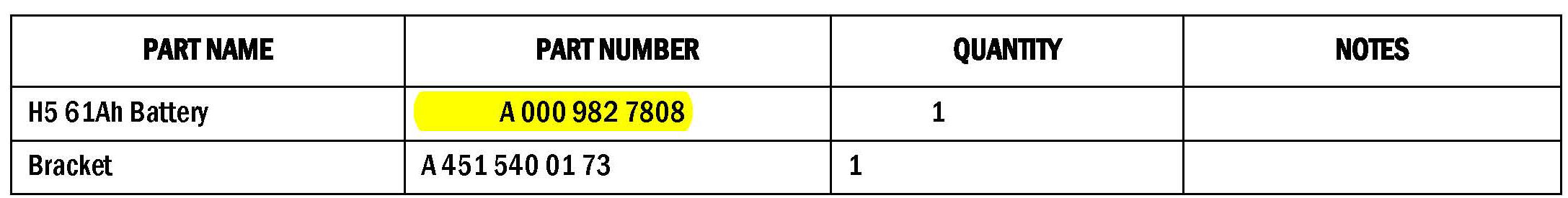

REQUIRED PARTS INFORMATION:

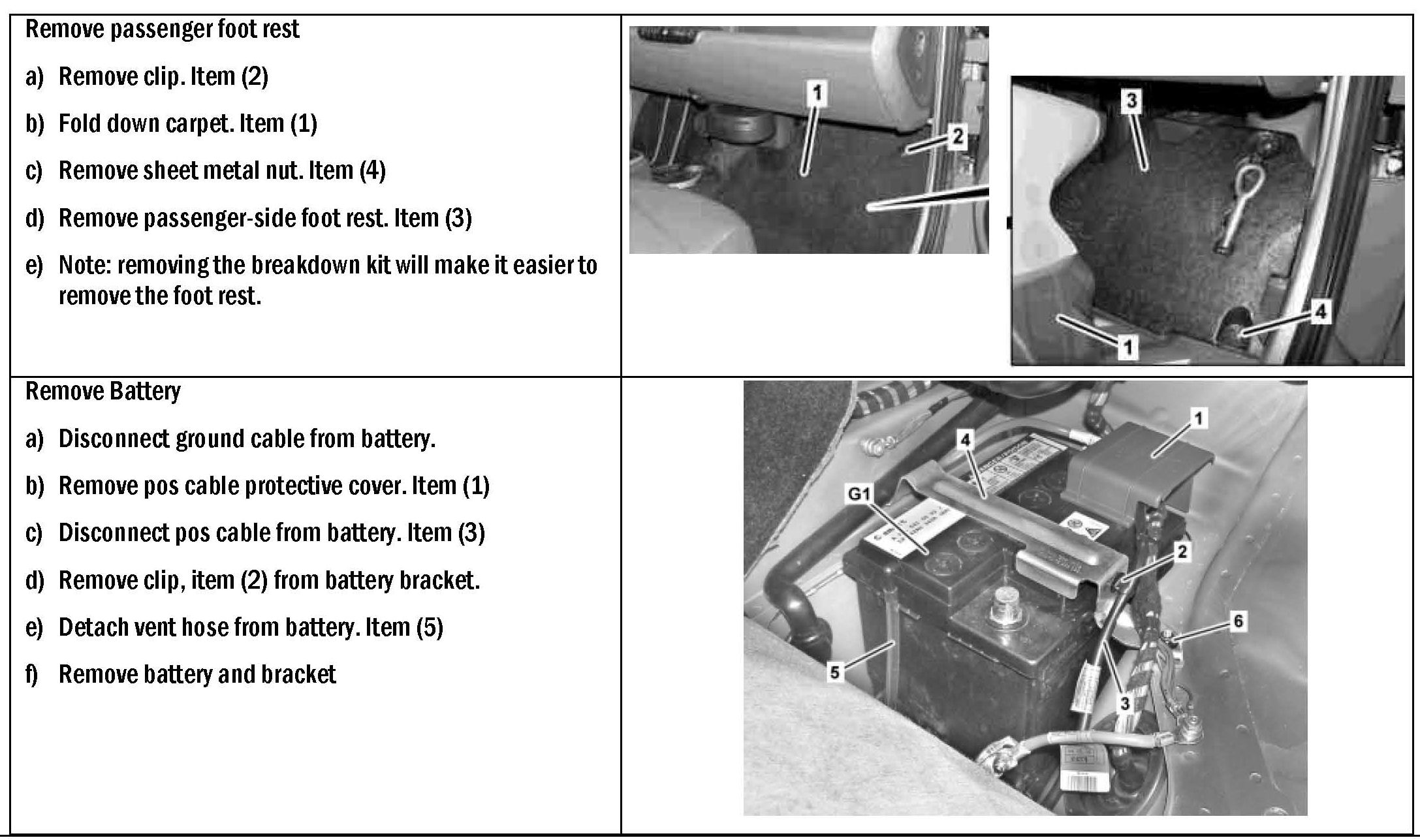

REPAIR PROCEDURE:

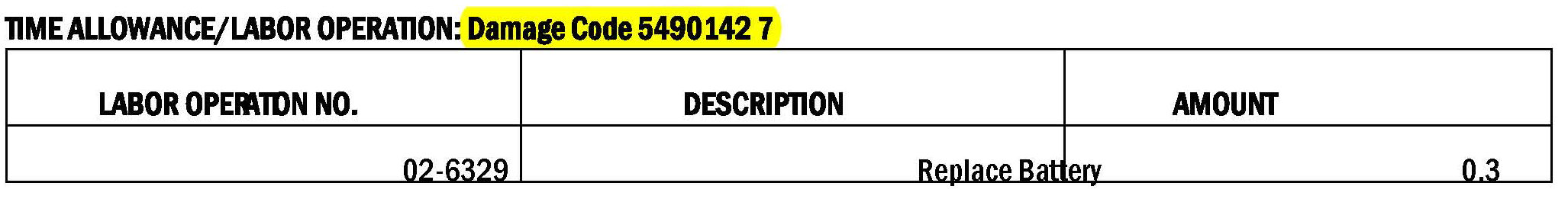

TIME ALLOWANCE/LABOR OPERATION: Damage Code 54901427

The information in this document is intended for use only by capable technicians who have the proper tools, equipment and training to correctly and safely maintain your vehicle. These procedures should not be attempted by personnel not properly trained. It should not be assumed that this information pertains to your vehicle.
