Campaign - Software Update For ME And TCU Modules

*Service Campaign 2009020010*

Date Revised July, 2011
March 10, 2009

Group
07 Engine Electronics

Number
C0209002

Model
2008 fortwo

Subject
Install Software update for ME and Transmission Control Units

Updated information is noted by asterisks or yellow shading

VEHICLES AFFECTED:

VIN specific - Check "Vehicle master Inquiry" to determine vehicle applicability.

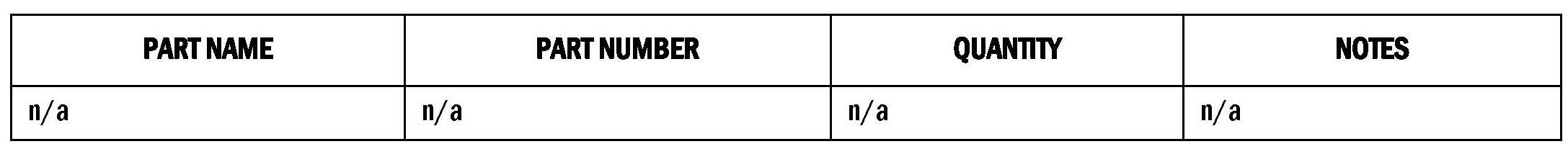

REQUIRED PART INFORMATION:

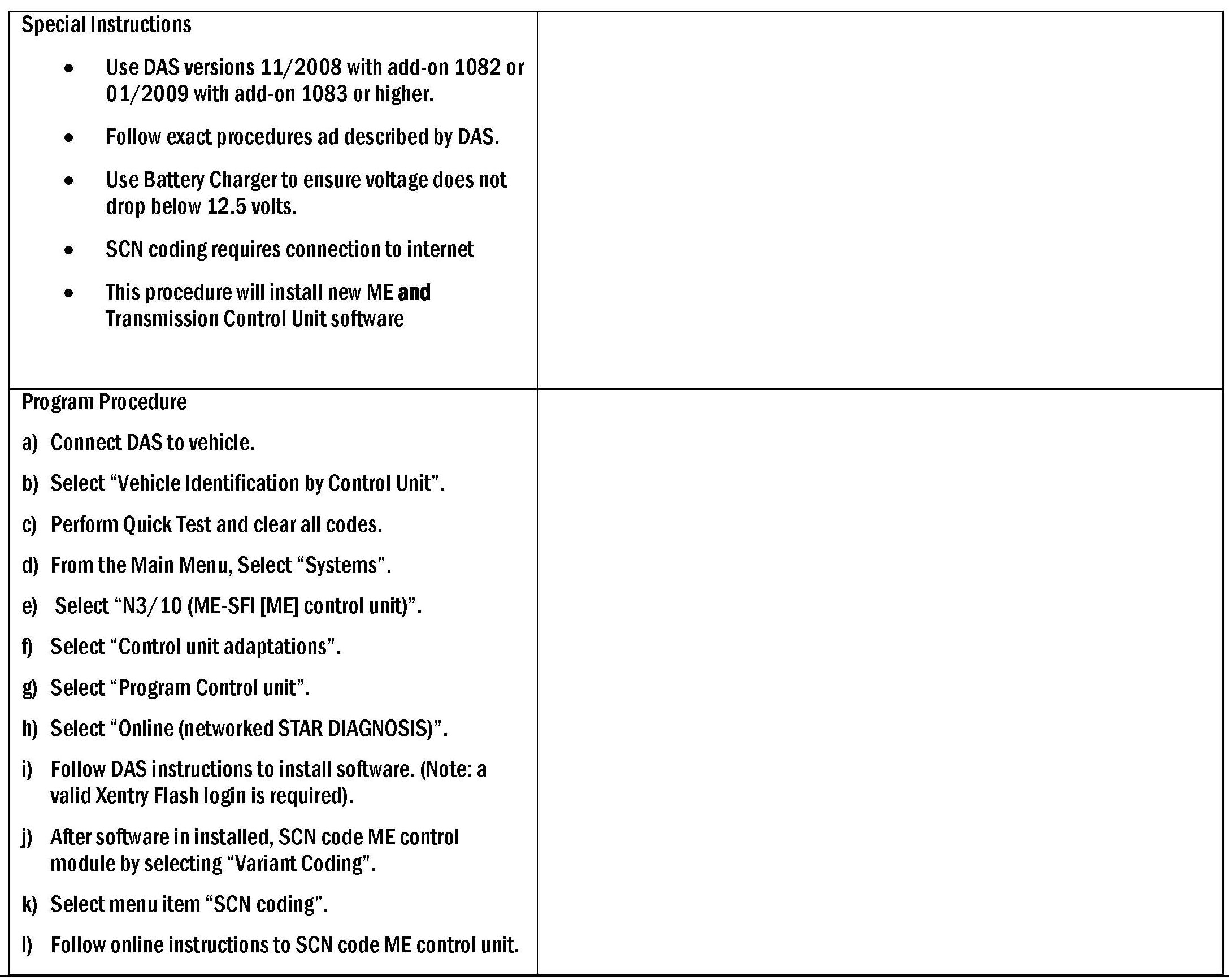

REPAIR PROCEDURE:

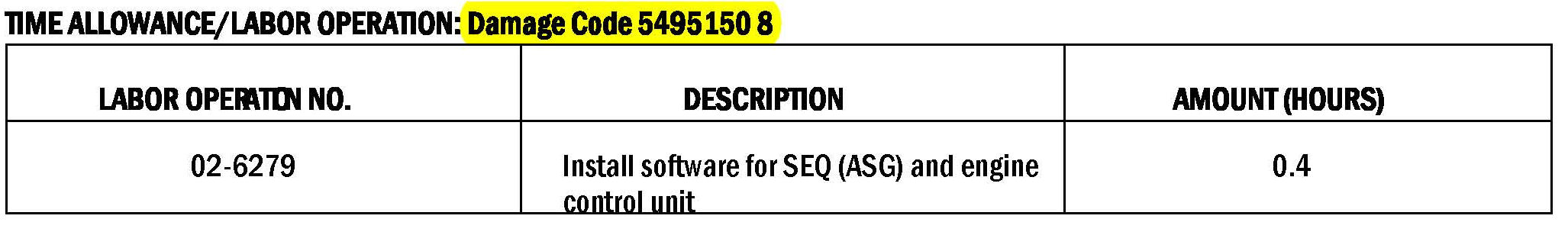

TIME ALLOWANCE/LABOR OPERATION: Damage Code 54951508

The information in this document is intended for use only by capable technicians who have the proper tools, equipment and training to correctly and safely maintain your vehicle. These procedures should not be attempted by personnel not properly trained. It should not be assumed that this information pertains to your vehicle.
