Alignment

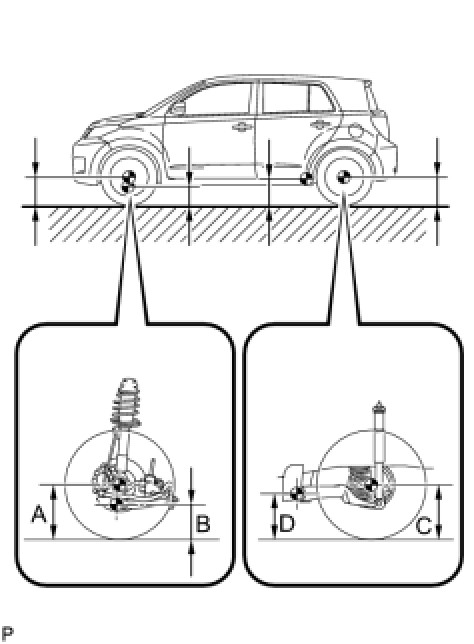

Measuring Points:

A
Ground clearance of front wheel center

B
Ground clearance of front lower arm set front bolt head center

C
Ground clearance of rear wheel center

D
Ground clearance of axle beam set bolt head center

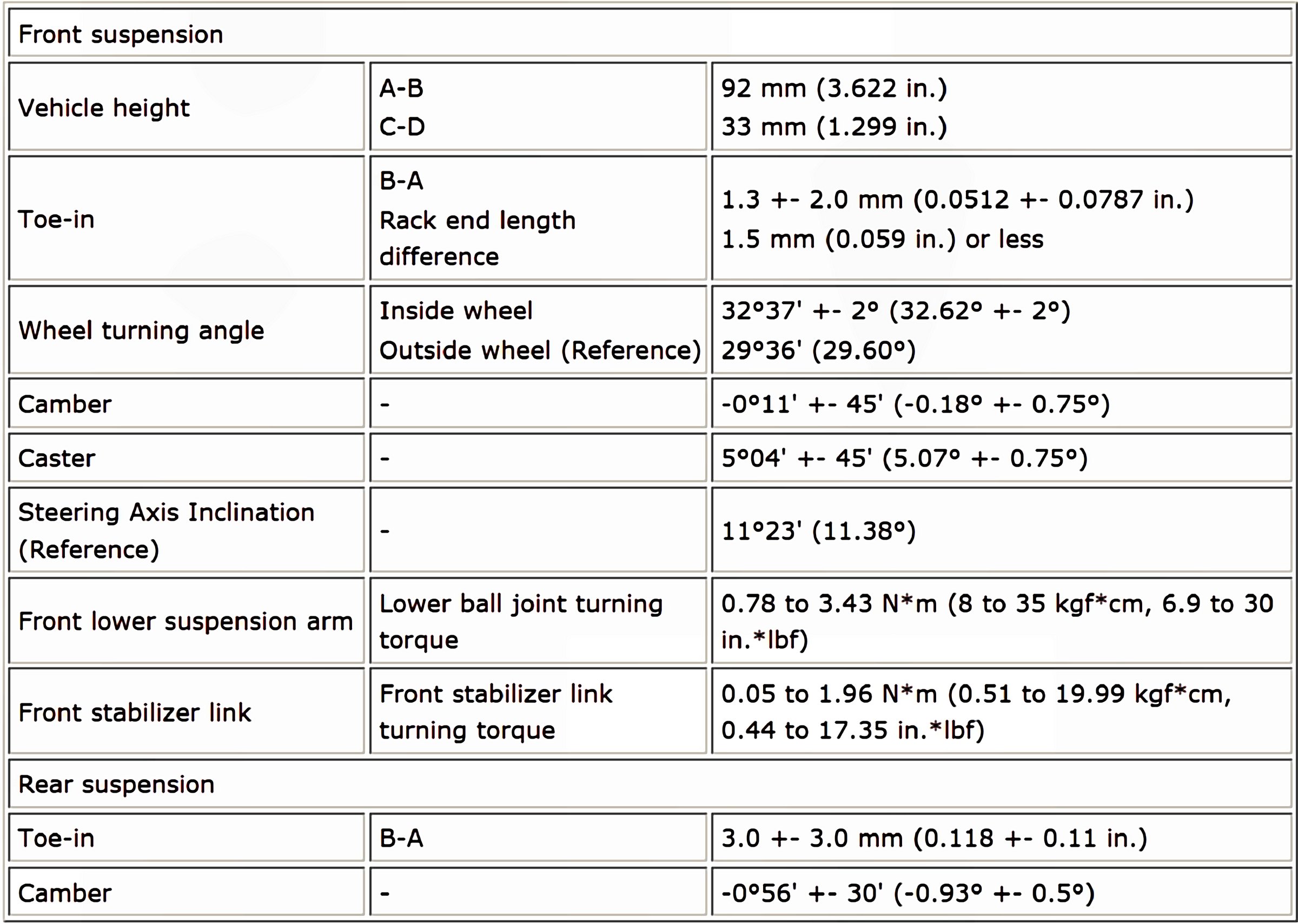

Vehicle Helght




Front - Toe-In:




Rear - Toe-In:
