Instrument Panel J/B Assembly

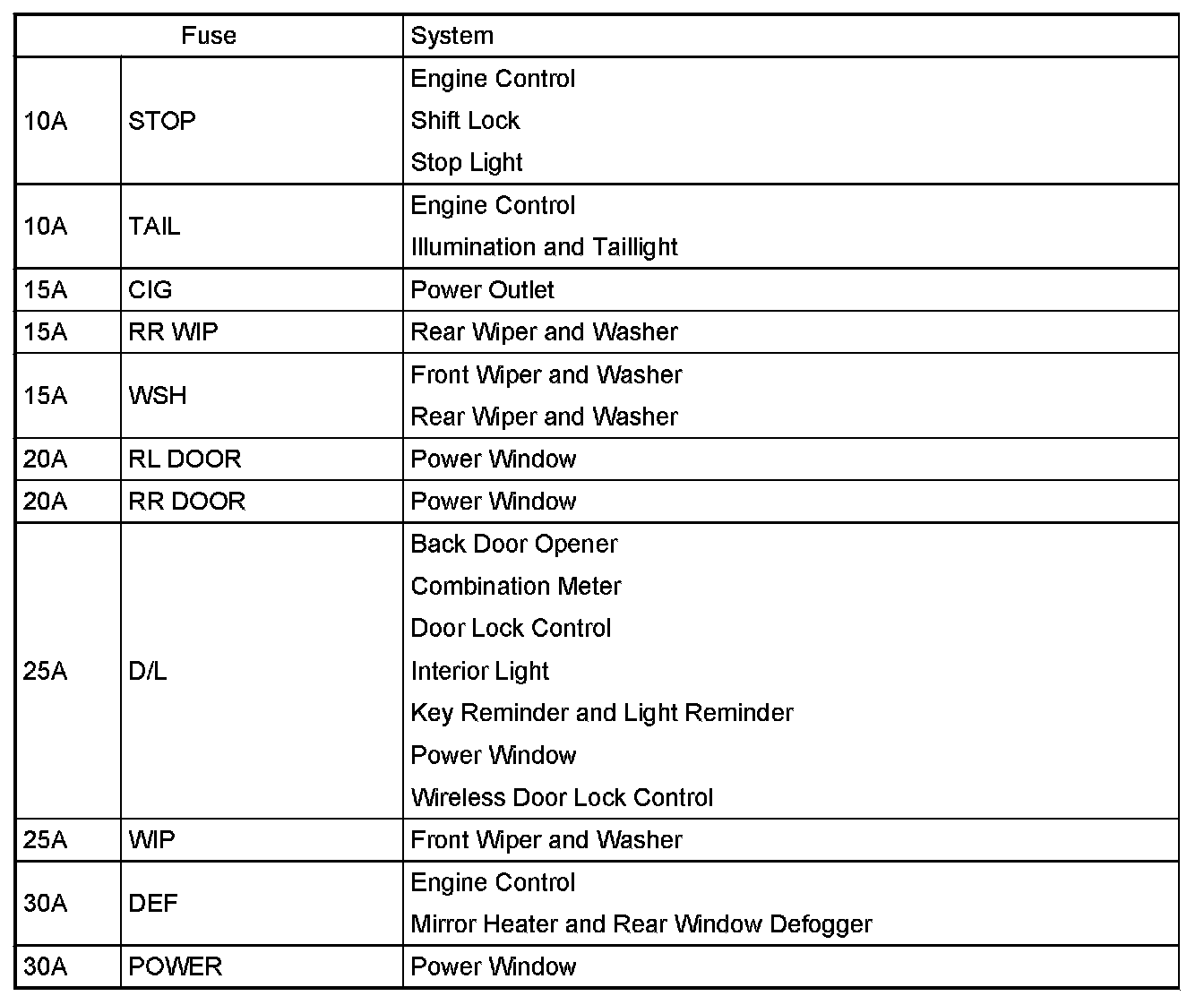

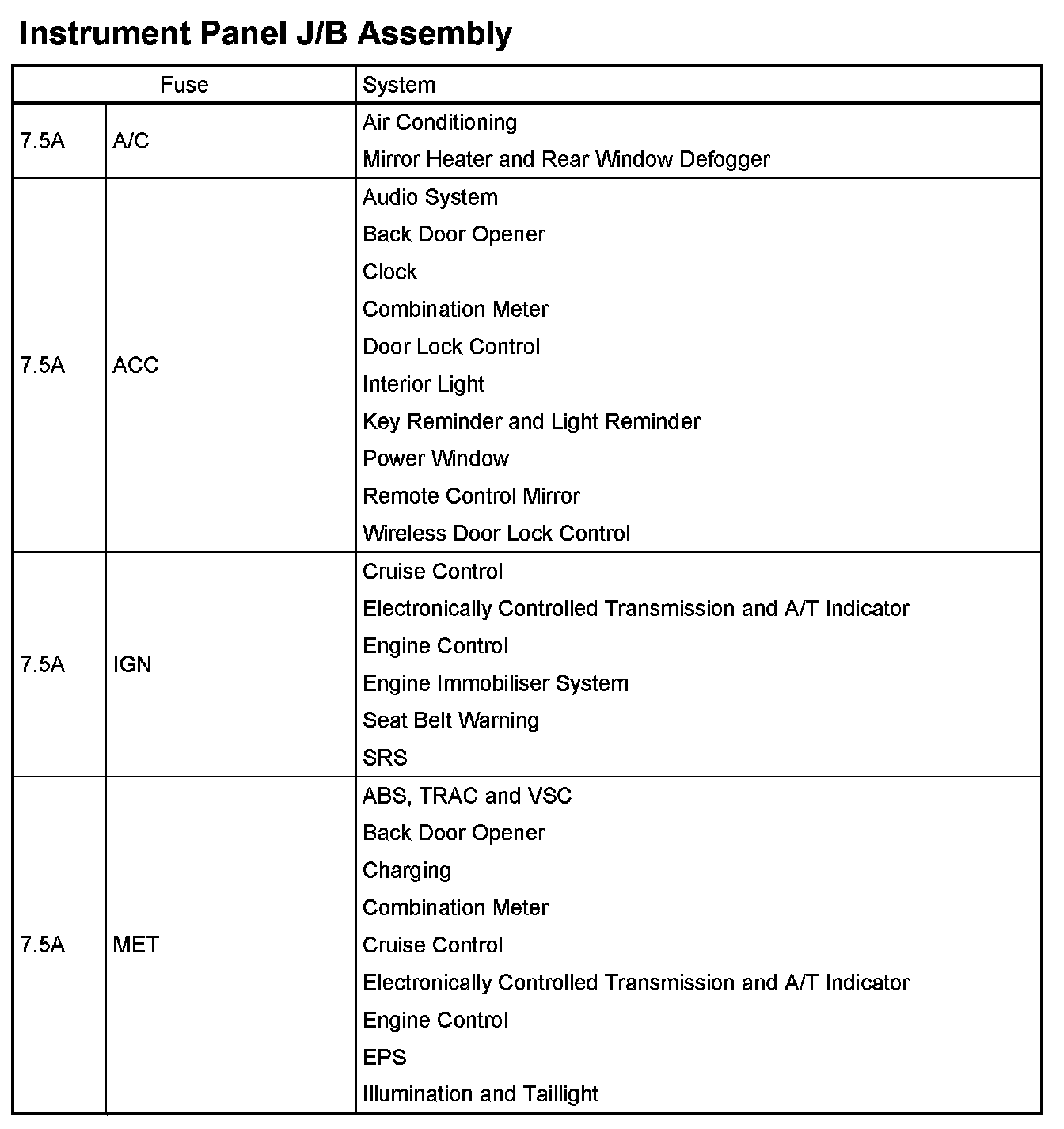

Instrument Panel J/B Assembly:

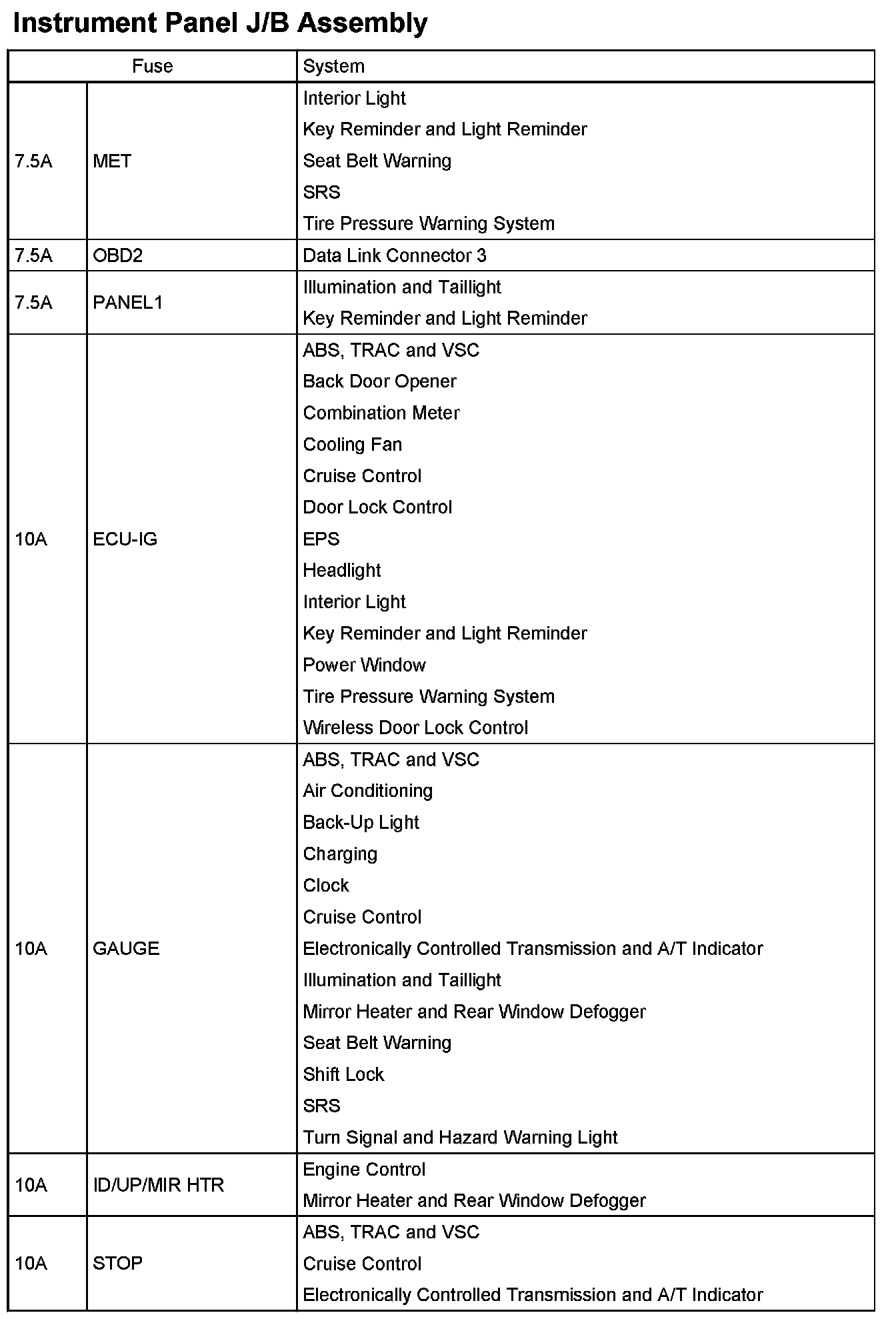

Instrument Panel J/B Assembly:






Instrument Panel J/B Assembly:
