Engine Room R/B Assembly and Engine Room J/B Assembly

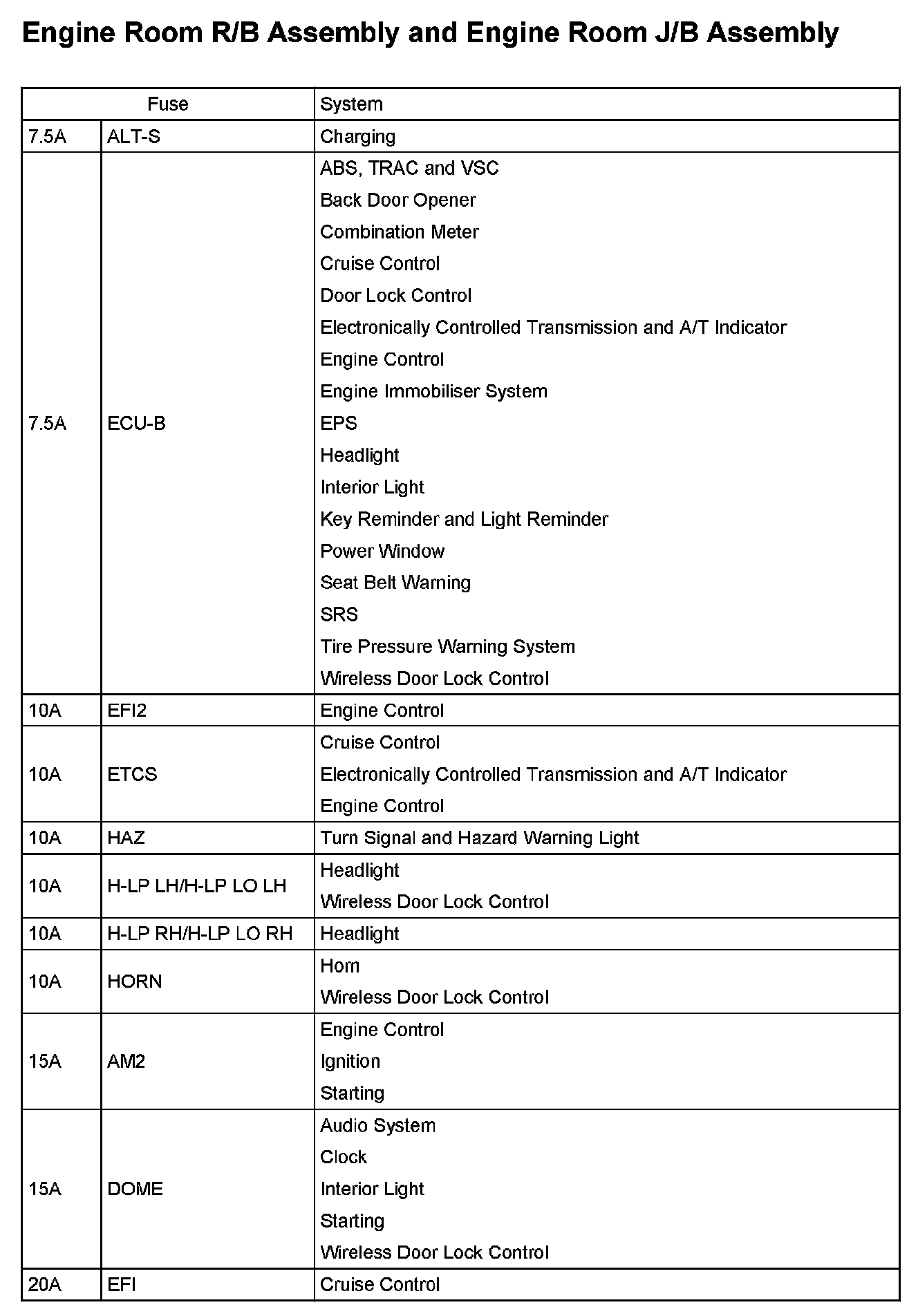

Engine Room R/B Assembly and Engine Room J/B Assembly:

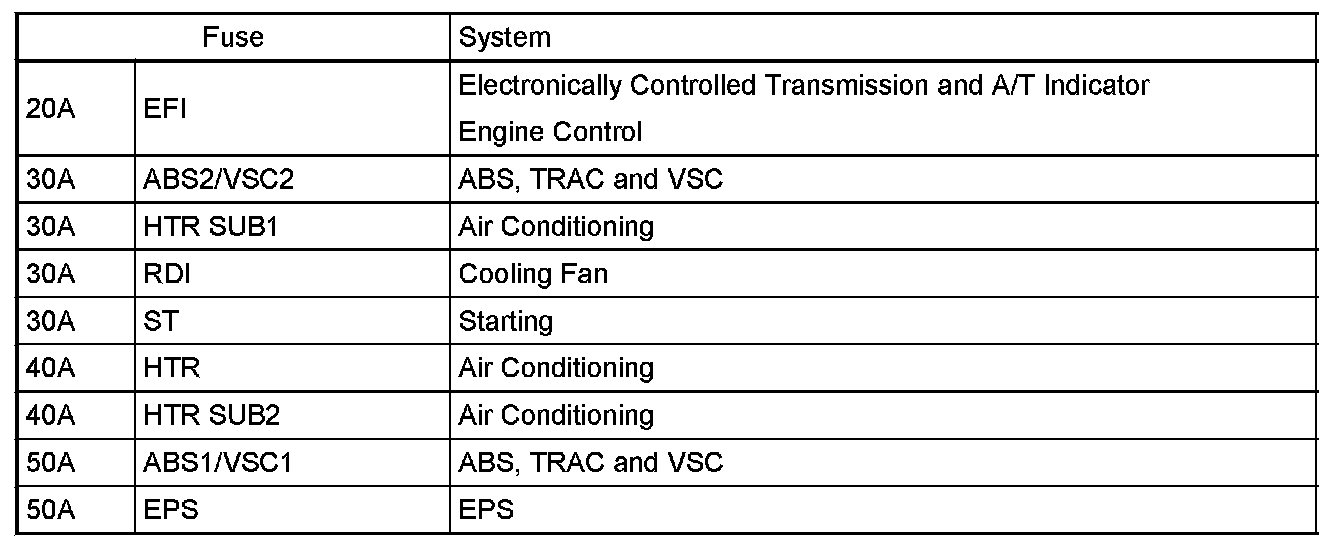

Engine Room R/B Assembly and Engine Room J/B Assembly:
