22 - 23 - Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH

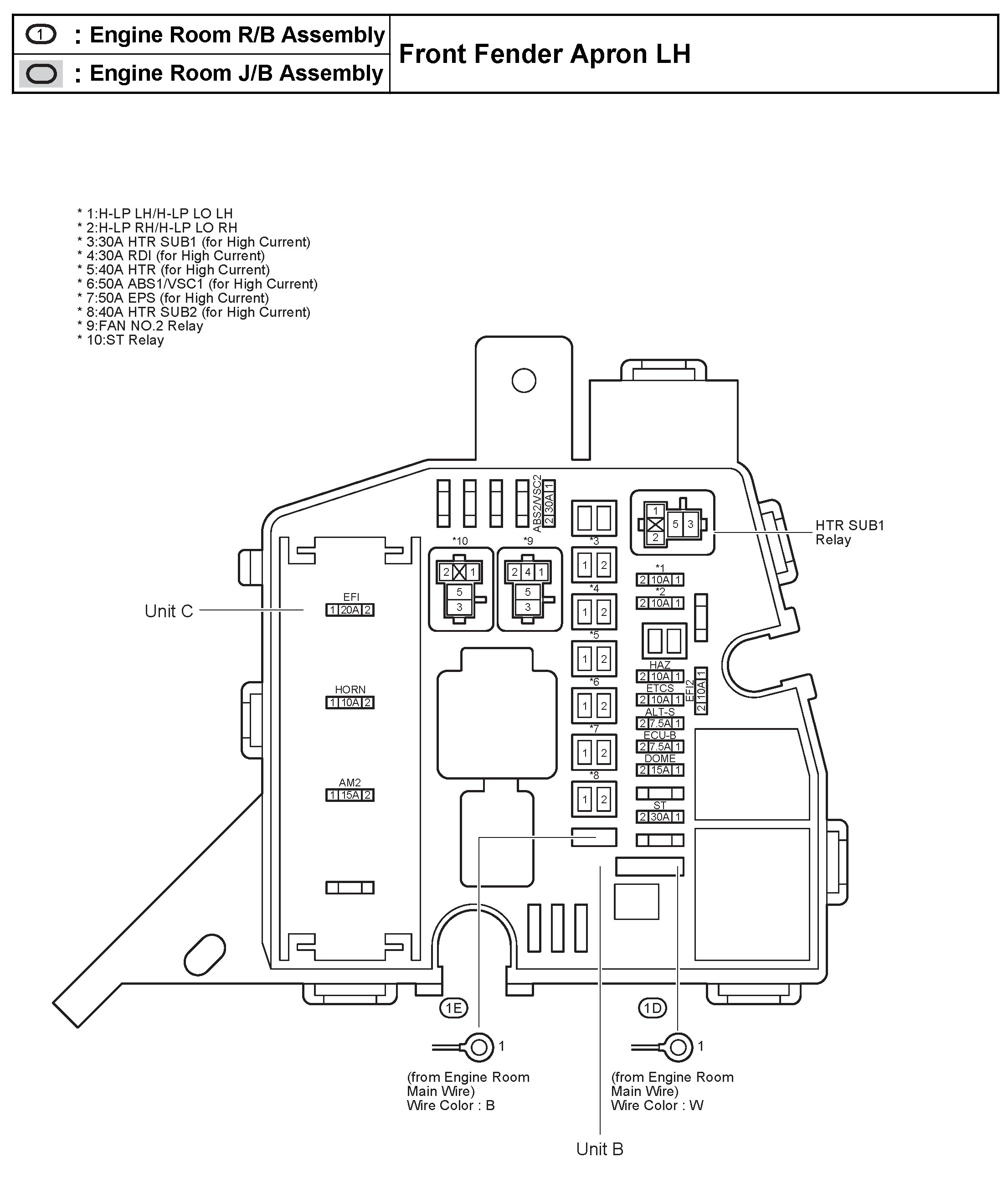

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

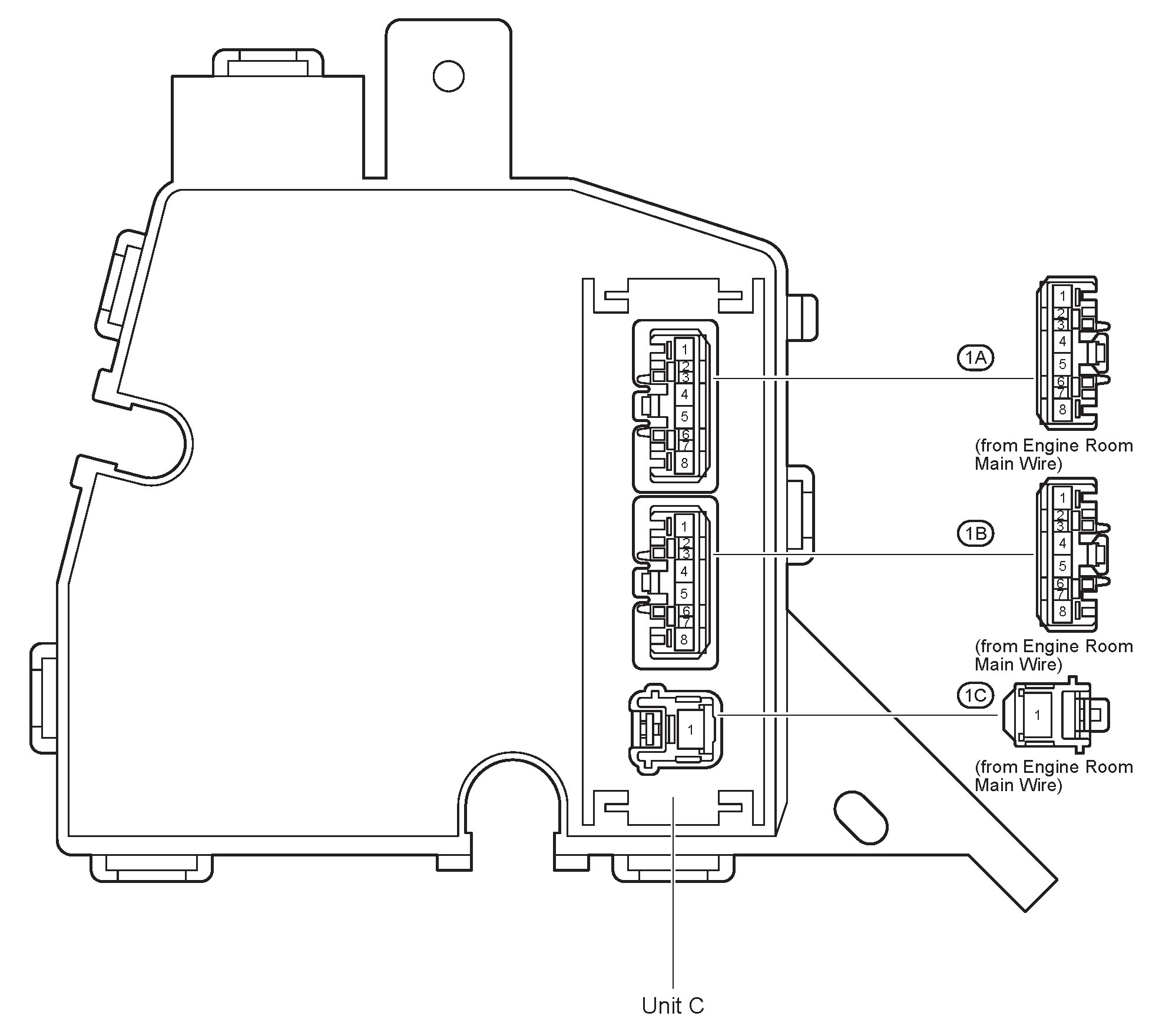

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:
